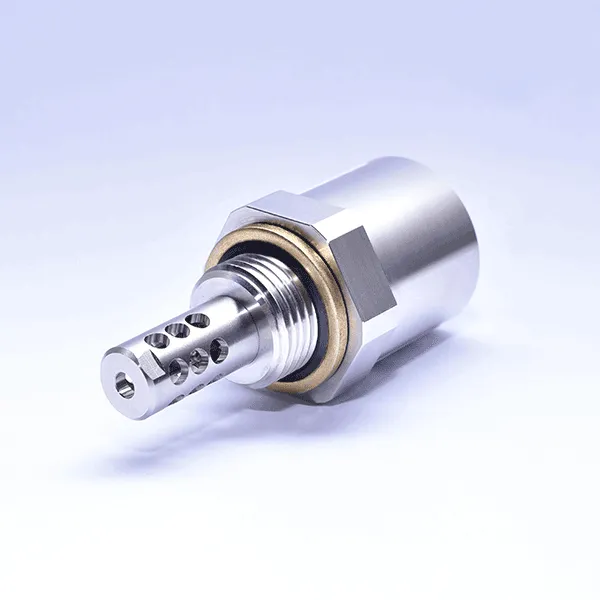

KT-330 Oil Dielectric Constant Sensor
Key Features Application Specification Key Features Extremely sensitive to various types of oil contamination High resolution up to 10⁻¹⁵ for accurate detection under various harsh conditions Special grounding technology for extreme reliability and robustness.
- Model
- KT-330
- Product line
- Smart Sensors
- Manufacturer
- Kongter Test & Measurement Co., Limited, Shenzhen, China
- Quality standard
- ISO 9001:2015
- Customisation
- Tailored configurations available on request
Send your application details straight to us on WhatsApp, WeChat or by email. We do not use enquiry forms.
Specification
Full Details for KT-330
- Extremely sensitive to various types of oil contamination
- High resolution up to 10⁻¹⁵ for accurate detection under various harsh conditions
- Special grounding technology for extreme reliability and robustness
- Certified to global commercial and technical standards
- 24/7/365 real-time monitoring of equipment oil quality
- Enables proactive equipment maintenance, avoiding unnecessary financial and time waste
- Significantly reduces oil change costs and waste oil disposal expenses
- Lowers carbon emissions, contributing to environmental protection while reducing oil waste
- Oil fields & oil refining
- Wind power
- Hydropower
- Power transmission & transformation
- Engineering machinery & vehicles
- Aviation & maritime navigation
- Railway & highway transportation
- Iron and steel & metallurgy
- Oil storage warehouses & gas stations
- Industrial production lines
- Air conditioning and refrigeration
Laboratory analysis
Applicable Oils：
- Lubricating oil
- Hydraulic oil
- Gear box oil
- Engine oil
- Fuel oil
- Insulating oil
- Turbine oil
- Synthetic grease
- Various light oils, heavy oils, etc.
| Measurement Range | Details |
| Oil dielectric constant ε | 1-6 |
| Accuracy | 2% |
| Temperature | -40°C to 120°C |
| Accuracy | 0.3°C |
| Other Specifications | |
| Applicable Oils | Suitable for most mineral oils, synthetic and semi-synthetic oils |
| Output | 4-20mA analog output + RS485 digital output |
| Operating Power Supply | DC12V-28V |
| Operating Current | <20mA + load current |
| Allowable Operating Pressure | <20bar |
| Operating Temperature | -40°C to 85°C |
| Oil Temperature | -40°C to 120°C |
| Mechanical Interface | G1/2” BSP |
| Electrical Interface | M8*1, 6-pin |
| Connection Cable | 6-pin, 2m, UL20866 6*22AWG |
| EMC Standards | EN 61000-6-4:2007, EN 61000-6-2:2005 |
| Housing Material | 316 stainless steel |
| Protection Class | IP66 |
| Weight | 250g |
