Electric Power Fittings · Suspension Clamp
Trunnion Type Suspension Clamps XGU-2
Key Data
Huaci engineers provide OEM service to meet the varying needs from customers.
Specifications
All values as published in the Huaci catalogue.
| Application of Wire Diameter | 7.1~13.0mm2 |
|---|---|
| Specified Failure Load | 40kN |
| Weight | 1.8kg |

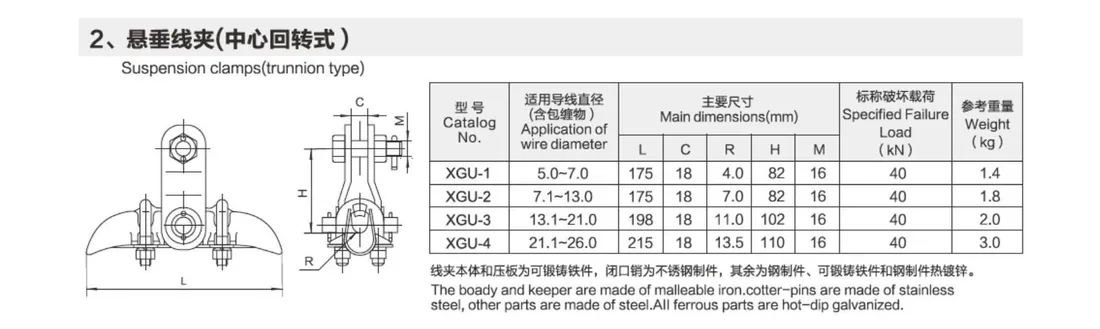

Dimension Drawing
Standards
Huaci strictly comply with GB, ANSI, BS, DIN, AS and IEC standard designs, applicable to power transmission lines and substations.
Quality Systems
ISO 9001:2015 Quality Management, ISO 14001:2015 Environment Management and ISO 45001:2018 Occupational Health And Safety Management System certificates.
Export Record
Huaci products are exported to more than 40 countries and have performed well in a variety of global environments.
FAQ
About Trunnion Type Suspension Clamps XGU-2
What is the specified failure load of Trunnion Type Suspension Clamps XGU-2?
The published specified failure load of Trunnion Type Suspension Clamps XGU-2 is 40kN.
What does Trunnion Type Suspension Clamps XGU-2 weigh?
The published net weight is 1.8kg each.
Which design standards does Huaci comply with?
Huaci strictly comply with GB, ANSI, BS, DIN, AS and IEC standard designs, applicable to power transmission lines and substations.
What system voltages are covered?
Huaci specialises in insulator manufacture up to 500 kV AC and 400 kV DC system voltages.
Is OEM or customised production available?
Yes. Huaci engineers are able to provide OEM service to meet the varying needs from customers and assist the customers to develop their market better.
Which quality certificates does the factory hold?
Quality Management System Certificate ISO 9001:2015, Environment Management System Certificate ISO 14001:2015 and the Occupational Health And Safety Management System Certificate ISO 45001:2018.
Request A Quotation For Trunnion Type Suspension Clamps XGU-2
Send the quantity and destination port and Huaci will reply with pricing, packing details and lead time.
