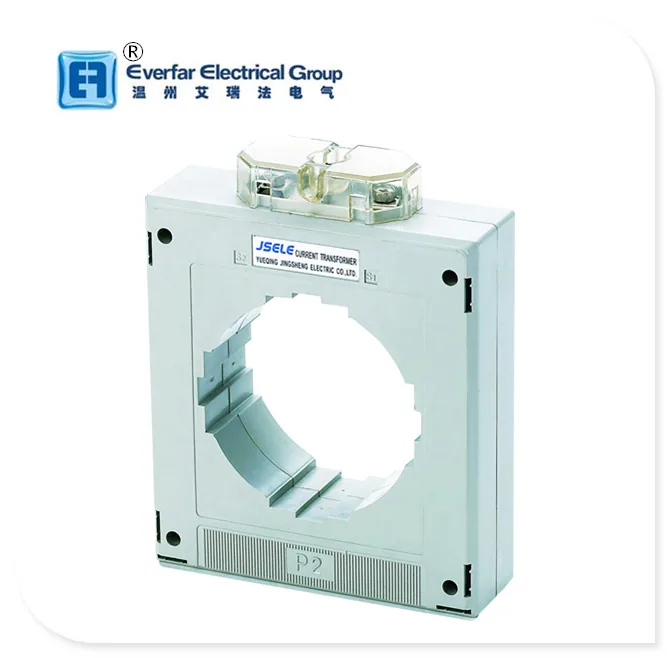

MSQ -CURRENT TRANSFORMERS

• Fixing system: to wall ,to cable/passing bar or to DIN rail by accessories supplied with the CT.
• Sealable terminals cover included
• Different characteristics on request.

MEASURING TRANSFORMERS

• A range of (12 frames) compact design plastic case current transformer. It's volume is much smaller than general model, integral hinged plate terminal cover, DIN rail mounting all makes this series CT match the requirements in space limited panels.

TRANSFORMERS ELECTROINC USE

• These transformers are used for measuring current from 5A to 6000A,second current 5A/1A, cl.1-cl.0.2s. Busbar dimensions from 0mm to 30X100mm.
• FEATURE

Three built in fixing methods: Side base; DIN Rail; Busbar mounting ,Built in hinged terminal cover

Compact design

Primary current from 5A to 6000A.

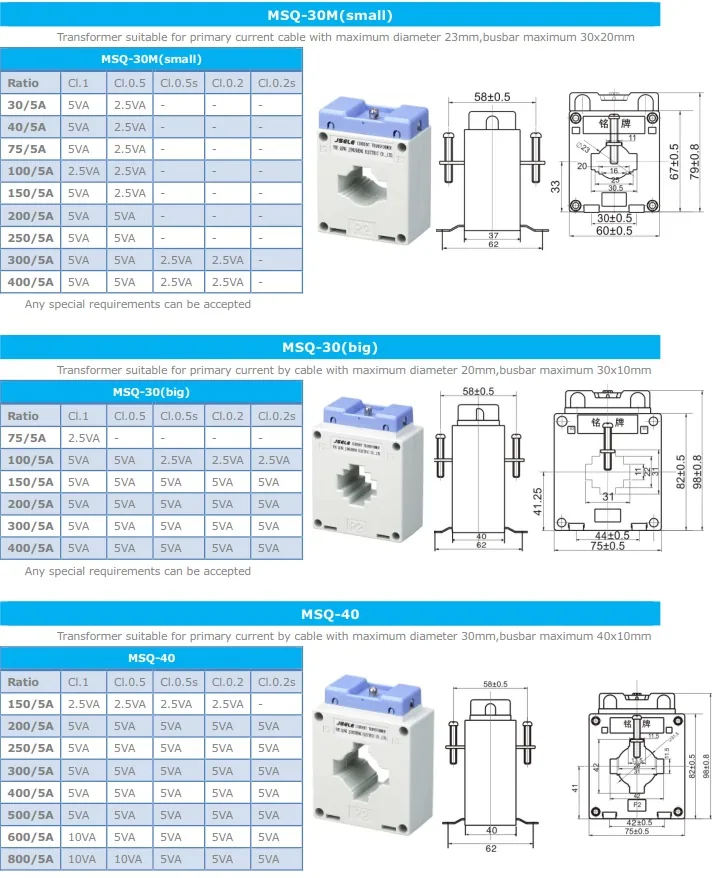

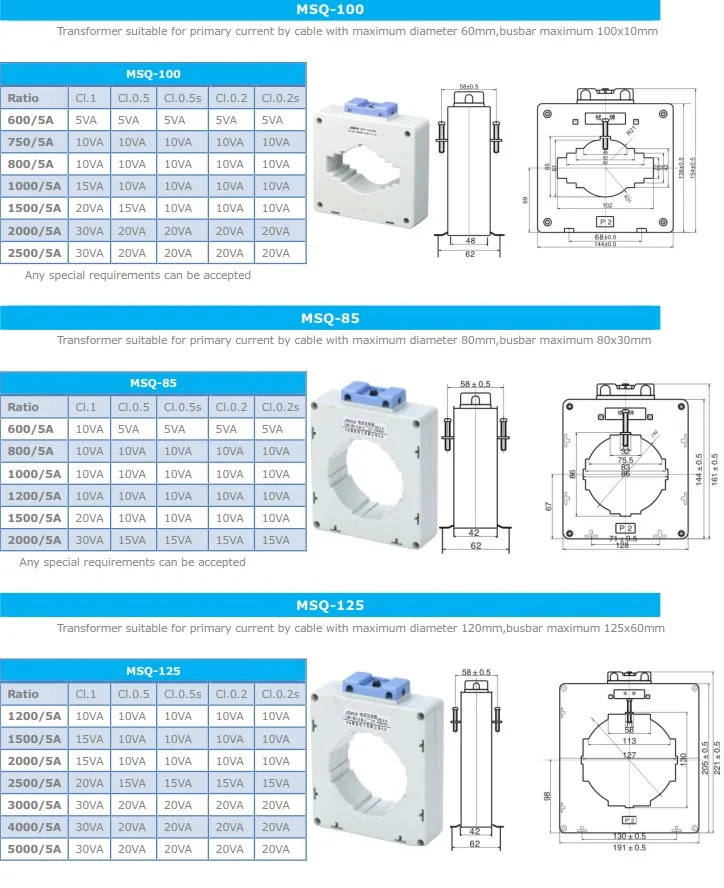

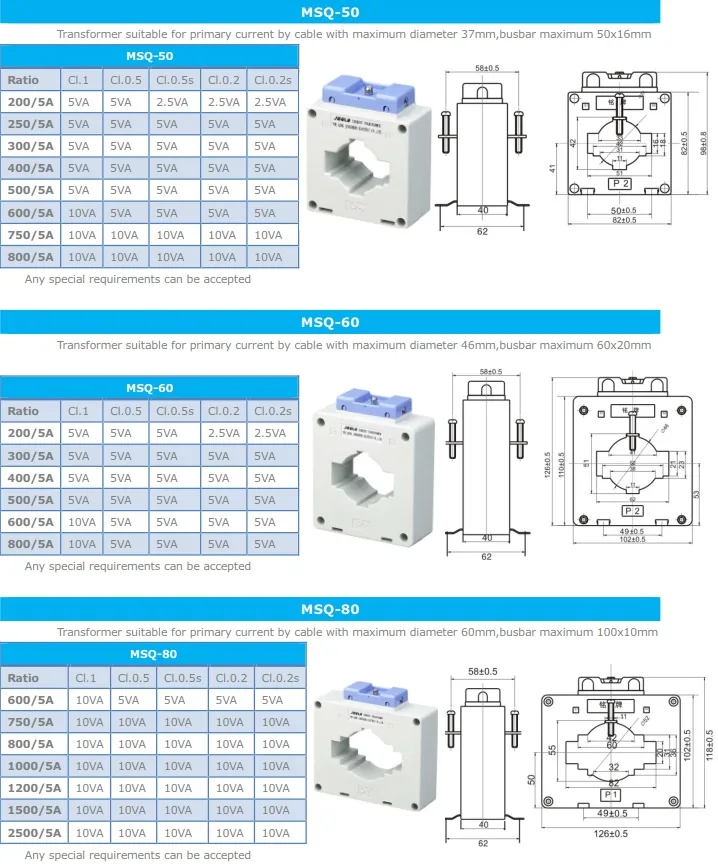

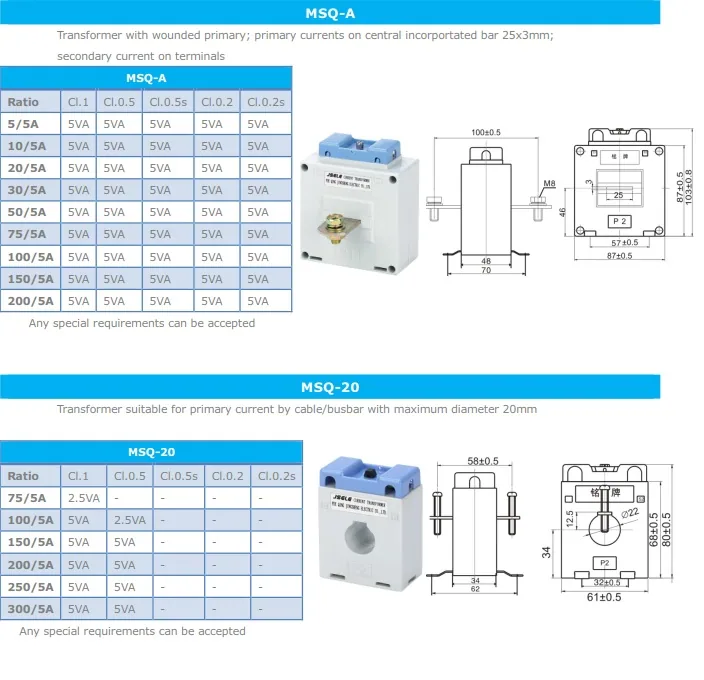

• SPECIFICAIONS

Rated Frequency 50/60Hz

Rated test voltage 3kV AC. (1 min)

Rated short-time thermal current(Ith) 60In

Rated dynamic current, (Idyn) 2.5Ith

Rated voltage,(Um) 0.72Kv AC.

Continuous overload,(Id) 1.2In

Operating temperature -10℃~50℃

Housing self-extinguishing class VO

Safety factor FS 5

Secondary current 5A/1A
