Moulded Housing CT
Moulded housing, resin housing, split core, ring type, mini, three phase, Rogowski coil, protection and residual current transformers.
| Category | Current Transformers |
| Type | Moulded Housing CT |
| Manufacturing | OEM to customer design, ISO9001 and ISO14001 |
| 1.Description A range of (9 frames) EURO style long life design plastic case current transformer, enforced terminal makes the CT keep cooling after full load using for a long term, elegant black figure makes the CT perfectly assort with related components in high quality panel board. 2.Feature Two built in fixing methods:Side base; Busbar mounting Built in hinged terminal cover Enforced terminals Primary current from 5A to 3000A . 3.Specification Rated Frequency 50/ 60Hz Rated test voltage 3kV AC. (1 min) Rated short-time thermal current( Ith ) 60In Rated dynamic current, ( Idyn ) 2.5Ith Rated voltage,(Um) 0.72Kv AC. Continuous overload,(Id) 1.2In Operating temperature -10°C~50°C Housing self-extinguishing class VO Safety factor FS 5 Secondary current 5A / 1A MBO-62 /B, MBO-62 /20, MBO-62 /30, MBO-62 /40, MBO-30 , MBO-40 , MBO-60 , MBO-70 , MBO-100 |
|---|
A range of (9 frames) EURO style long life design plastic case current transformer, enforced terminal makes the CT keep cooling after full load using for a long term, elegant black figure makes the CT perfectly assort with related components in high quality panel board.
Two built in fixing methods:Side base; Busbar mounting
Built in hinged terminal cover
Enforced terminals
Primary current from 5A to 3000A.
Rated Frequency 50/60Hz
Rated test voltage 3kV AC. (1 min)
Rated short-time thermal current(Ith) 60In
Rated dynamic current, (Idyn) 2.5Ith
Rated voltage,(Um) 0.72Kv AC.
Continuous overload,(Id) 1.2In
Operating temperature -10°C~50°C
Housing self-extinguishing class VO
Safety factor FS 5
Secondary current 5A/1A

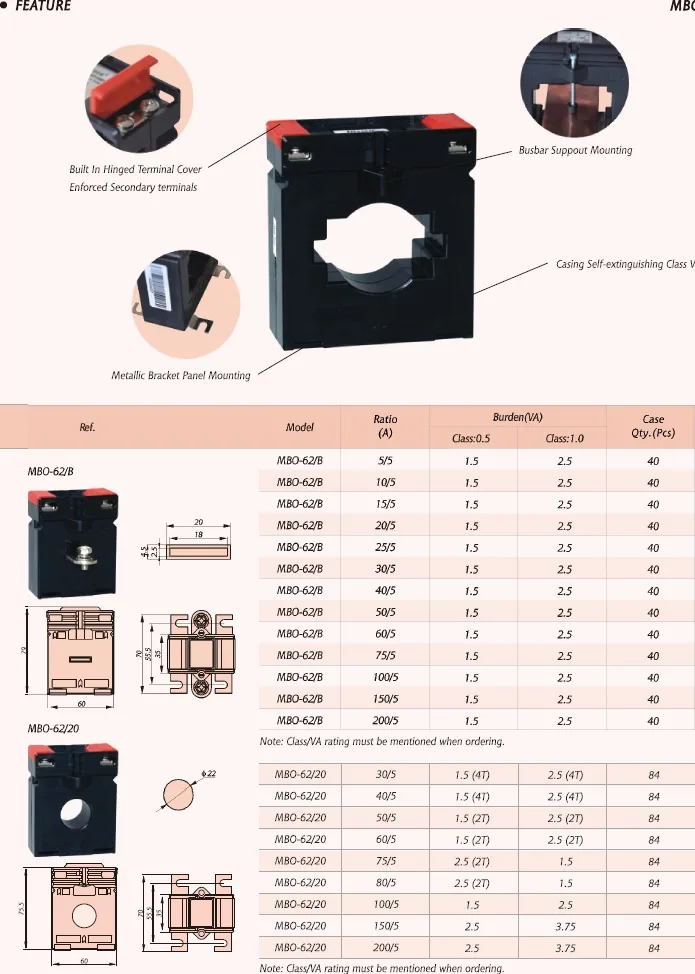

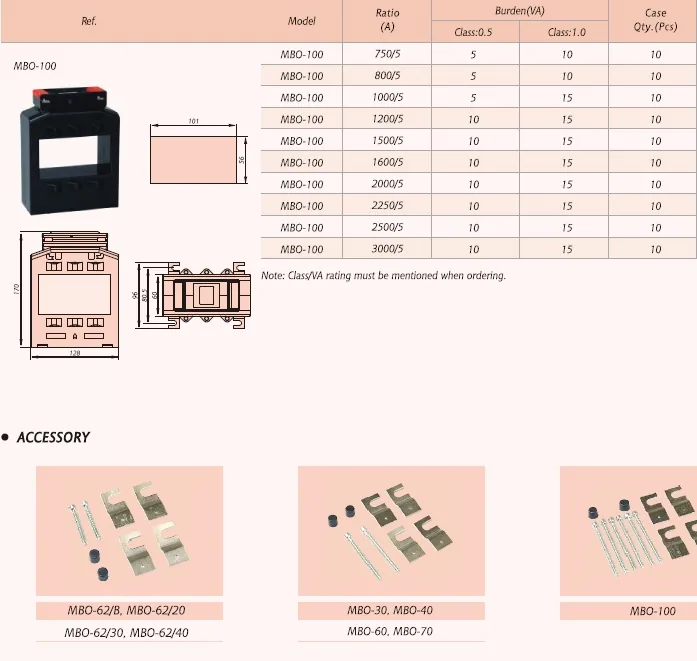

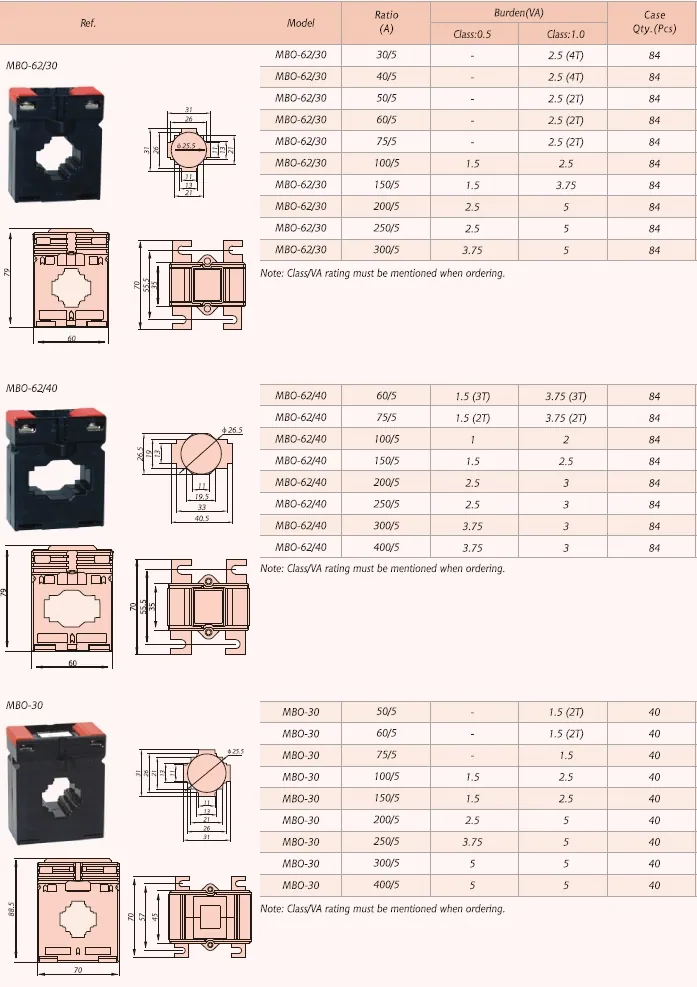

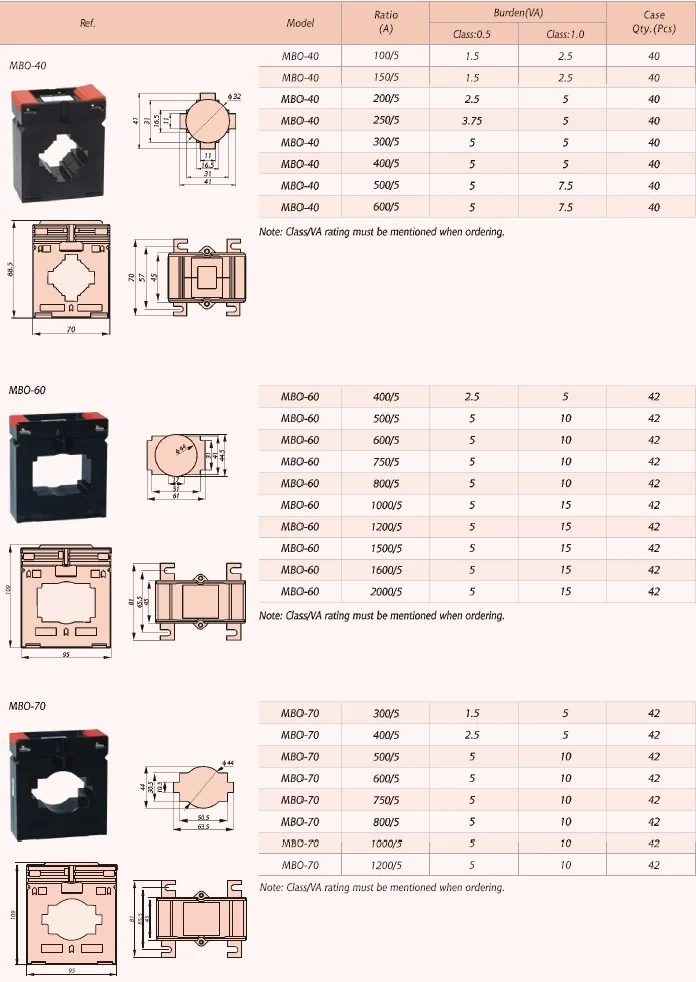

MBO-62/B, MBO-62/20,MBO-62/30, MBO-62/40, MBO-30, MBO-40, MBO-60, MBO-70, MBO-100

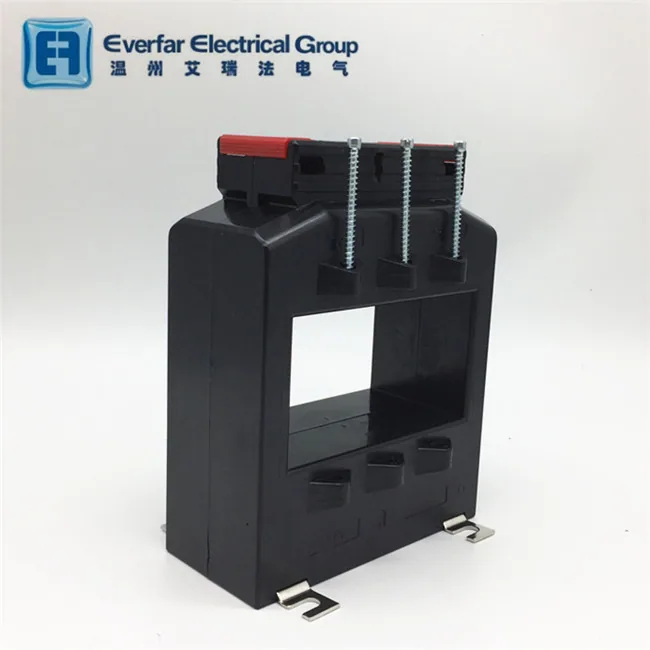

MBO Current Transformer
Exactly match MBS(ASK,ASR),IME,Hobut,Rayleigh CT
