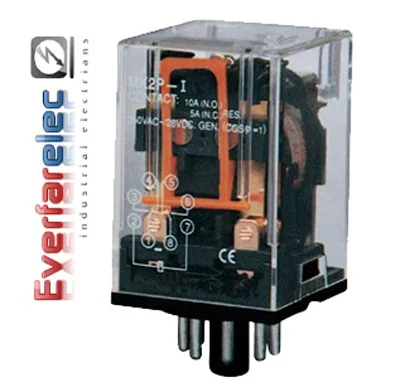

DC Contactor
AC and DC contactors, mini electromagnetic relays, thermal overload relays and time relays.
| Category | Contactors and Overload Relays |
| Type | DC Contactor |
| Manufacturing | OEM to customer design, ISO9001 and ISO14001 |
Model MK-2P-I MK-3P-I
Dimension(mm) 34.7x34.7x52 34.7x34.7x52
Contact Form 2Z 2H 2D 3Z 3H 3D
Contact material (Sliver alloy)
Resistance Performance Of Contactor Capacity 5A/28VDC 5A/240VAC
Coil Power DC(W) ≤ 1.5W
Coil Voltage DC(V) 6~220V
Pick-up Voltage DC≥ 75% AC≤ 80%
Drop-out Voltage DC≥ 10% AC≤ 30%
Max Voltage 110%
Contact Resistance(at 6VDC 1A) ≤ 100mΩ
Dielectric Strength Between Open Contacts ≥ 1200VAC 50Hz/min Leakage current 1mA
Contacts Pieces ≥ 1500VAC 50Hz/min Leakage current 1mA
Between Coil&Contacts ≥ 1500VAC 50Hz/min Leakage current 1mA
Insulation Resistance(MΩ )at 500VDC ≥ 500MΩ
Service life Electrical 105Times(Frequency: On1Time/1S. Off1Time/1S)
Mechanical 107Times(Frequency: Time/1min)
Ambient Temperature -25 +55
Terminal Type Insert type
Suitable Socket PF-083A PF-113A
(g) Product Weight ≤ 75g ≤ 75g
Same Reference JQX-10F-2Z, JTX-2C JQX-10F-3Z, JTX-3C
www.everfarelec.com
FAQ
Email [email protected] with the product name, the rating and the accuracy class you need and the quantity.
Yes. Everfar is distinguished by OEM manufacture and develops customers' designs.
Everfar is qualified to ISO9001 and ISO14001, and holds product certificates including CE, UL and KEMA.
Send the rating and the quantity and our sales team will confirm the price.
