Split Core CT
Moulded housing, resin housing, split core, ring type, mini, three phase, Rogowski coil, protection and residual current transformers.
| Category | Current Transformers |
| Type | Split Core CT |
| Manufacturing | OEM to customer design, ISO9001 and ISO14001 |
| 1.DESCRIPTION The DBP series current transformer has been specially designed to facilitate their installation in new or already existing net works. They may be installed without opening any cable or bus-bar circuit. The connection of conventional CTs usually requires the interruption of the primary side circuit to pass cables or bur-bars through the transformer core or to connect such cables to the primary terminals. The DBP series transformers core may be easily opened and they may be installed and connected without any supply interruption. Thus saving time and the installation costs. 2. FEATURE Two built in fixing methods:Base; Busbar mounting Very easy to mounting. Wide inner window, allowing clamping of big cables or bus-bars.Wide range of sizes to accommodate all the existing installations. Primary current from 5A to 5000A . 3.SPECIFICAIONS Rated Frequency 50/ 60Hz Rated test voltage 3kV AC. (1 min) Rated short-time thermal current( Ith ) 60In Rated dynamic current,( Idyn ) 2.5Ith Rated voltage,(Um) 0.72Kv AC. Continuous overload,(Id) 1.2In Operating temperature -10°C~50°C Housing self-extinguishing class VO Safety factor FS 5 Secondary current 5A / 1A |
|---|
The DBP series current transformer has been specially designed to facilitate their installation in new or already existing net works. They may be installed without opening any cable or bus-bar circuit. The connection of conventional CTs usually requires the interruption of the primary side circuit to pass cables or bur-bars through the transformer core or to connect such cables to the primary terminals. The DBP series transformers core may be easily opened and they may be installed and connected without any supply interruption. Thus saving time and the installation costs.
Two built in fixing methods:Base; Busbar mounting
Very easy to mounting.
Wide inner window, allowing clamping of big cables or bus-bars.Wide range of sizes to accommodate all the existing installations.
Primary current from 5A to 5000A.
Rated Frequency 50/60Hz
Rated test voltage 3kV AC. (1 min)
Rated short-time thermal current(Ith) 60In
Rated dynamic current,(Idyn) 2.5Ith
Rated voltage,(Um) 0.72Kv AC.
Continuous overload,(Id) 1.2In
Operating temperature -10°C~50°C
Housing self-extinguishing class VO
Safety factor FS 5
Secondary current 5A/1A

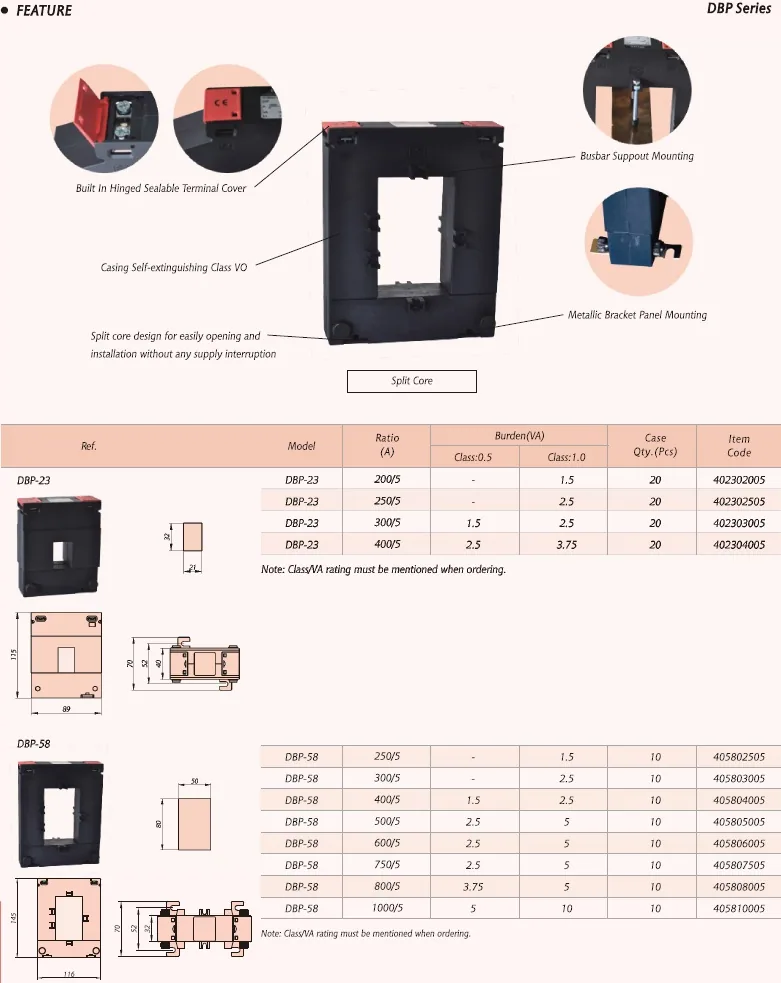

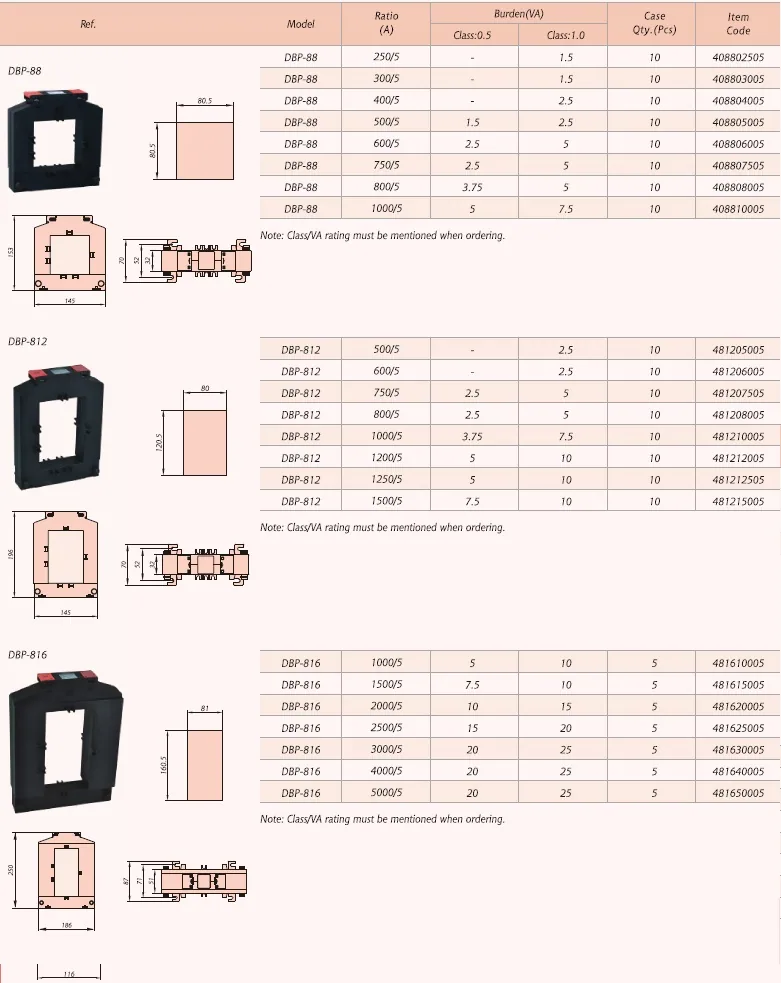

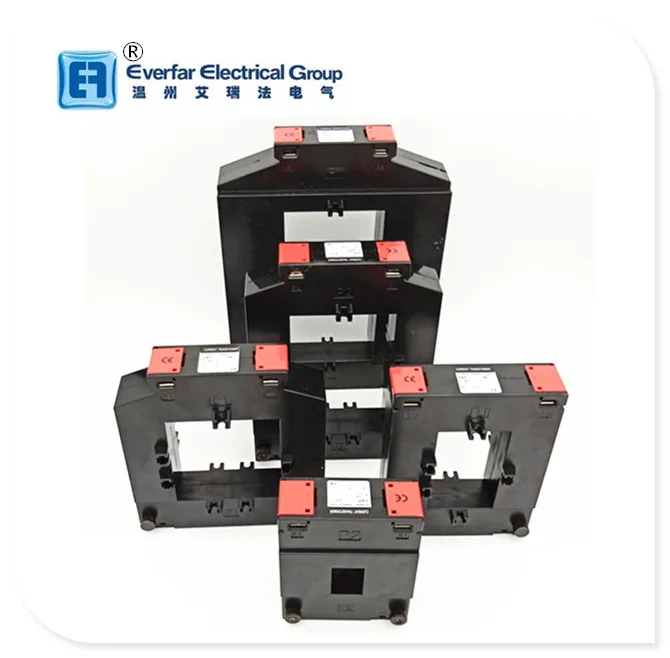

DBP Square Split Core CT
Datasheet DBP Split Core Current Transformer Catalogue Download
Exactly match Lovato(DM1TA DM2TA DM3TA DM4TA),IME,Rayleigh Instruments(DBP23).
FAQ
Email [email protected] with the product name, the rating and the accuracy class you need and the quantity.
Yes. Everfar is distinguished by OEM manufacture and develops customers' designs.
Everfar is qualified to ISO9001 and ISO14001, and holds product certificates including CE, UL and KEMA.
Send the rating and the quantity and our sales team will confirm the price.
