HDMI switcher 3X1 with PIP function (4K*2K,3D)
Made by Shenzhen Easyconnect Electronic Co., Ltd. in Shenzhen. Tell us the resolution and the transmission distance and we will confirm this is the right model before you order.
- Line
- HDMI Switch
- Category
- HDMI Devices
- Manufacturer
- Easyconnect, Shenzhen China
- Certification
- CE, FCC and RoHS
Specification
Specifications:
- HDMI
- version
- HDMI
- 1.4b
- HDMI
- resolution
- UP TO
- 4K
- x
- 2K
- 30Hz
- Video format
- 24/30/36 bit deep color
- Support audio format
- DTS-HD/
- Dolby-trueHD
- LPCM7.1/DTS/
- Dolby-AC3
- DSD
- Max bandwidth
- 340MHz
- Max baud rate
- 3.4Gbps
- Input cable distance
- 15m
- AWG26
- HDMI
- standard cable
- Output cable distance
- 15m
- AWG26
- HDMI
- standard cable
- Max working current
- 300mA
- Power adapter format
- input:AC (
- 50HZ
- 60HZ
- 100V-240V
Output:
- DC5V
- 1A
- Operating temperature range
- (-15 to +
- 55℃
- Dimension(
- LxWxH
- 178x58x20
- (mm)
- Weight
- 220g
- Features：
Switched seamlessly, Switch one input source to the other input source quickly
- With
- InstaPotechnology
- this product achieves seamless switching among Input
sources.and gets big advantages compared to the previous switcher which needs
to wait for a period of time in the switching process.

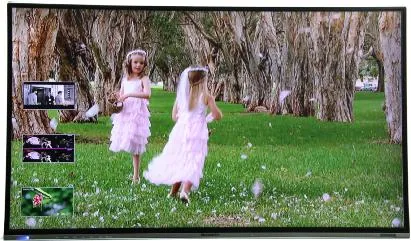

- picture-in-picture(
- PiP
- video preview
- HDMIV1.4,
- support3D
- 4Kx2K
- 1.Support HDMI1.4b
- 2.Support 3D
- 3.Support video resolution up to
- 4Kx2K@30Hz
- 1080p@120Hz
- and
- 1080P
- 3D@60Hz
- 4.Support 3.4Gb
- datarate
- for
- tmds
- clock up to
- 340Mhz
- 5.Support 24/30/
- 36bit
- deep color
6.Support single and high definition display for multiple sources, such as DVD Players
- and
- Stellite
- Receivers, Digital Projectors,A/V Receivers,TV Boxes
- 7.5V/
- 1Apowersupply
- 8.Picture-in-picture(PIP)function
9.Switched seamlessly, Switch one input source to the other input Source quickly.
- Sketch map
Questions about this model
How do I get a price for the HDMI switcher 3X1 with PIP function (4K*2K,3D)
Email [email protected] with the model and the quantity, and tell us the resolution and the distance the signal has to travel.
Is this model CE and FCC certified
Certificates are held per product line. Tell us the destination market and we will send the ones that apply to this model.
Can this be supplied under our own brand
Yes. Housing, branding and functions can be adapted for OEM and ODM projects.
Ask about the HDMI switcher 3X1 with PIP function (4K*2K,3D)
Model, quantity, resolution and distance is all we need.
