HDMI splitter 1 to 2
Made by Shenzhen Easyconnect Electronic Co., Ltd. in Shenzhen. Tell us the resolution and the transmission distance and we will confirm this is the right model before you order.
- Line
- HDMI Splitter
- Category
- HDMI Devices
- Manufacturer
- Easyconnect, Shenzhen China
- Certification
- CE, FCC and RoHS
Specification
Specifications:
- HDMI
- resolution ………………………....24/50/
- 60fs
- 1080p
- 1080i
- 720p
- 576p
- 576i
- 480p
- 480i
Support video color format …………………………..…………….24bit/deep color
- 30bit
- 36bit
- Support audio format……………….DTS-HD/
- Dolby-trueHD
- LPCM7.1/DTS/
- Dolby-AC3
- DSD
- Max bandwidth……………………………………………………………………………..225MHz
- Max baudrate……………….…….………………….…………………………………..6.75Gbps
- Input/Output
- TMDS
- signal ………….…………………………..……...… 0.5~1.5Volts p-p(
- TTL
- Input/Output
- DDC
- signal ……………………………………………..…………
- 5Volts
- p-p (
- TTL
- Input cable distance..…... …………….………………….<=
- 15m
- AWG26
- HDMI
- standard cable
- Output cable distance……………………………….…...<=
- 25m
- AWG26
- HDMI
- standard cable
- Max working current……………………………………………………………………….....500mA
- Power adapter format..Input: ……………....AC (
- 50HZ
- 60HZ
- 100V-240V
Output:
- DC5V
- 1A
Operating Temperature range……..…………….……………………… (-15 to +55 Centigrade)
Operating Humidity range………………………….….……….5 to 90%RH (No Condensation)
Dimension (L x W x H) ……………………………….……………….…………105x50x20 (mm)
- Weight…..………………………………………………………..…….…..……………………130g
Features:
1. Easy to Use: Install in seconds, no need of setting.
- 2. One
- HDMI
- Input, two
- HDMI
- outputs
- 3. Supports Full 3D and
- 1080p
HDTV.
- 4. Supports highest video resolution
- 1080p
- 5. Supports HDCP
- 6. Supports uncompressed audio such as LPCM
7. Supports compressed audio such as DTS Digital, Dolby Digital(including DTS-HD and Dolby True HD).

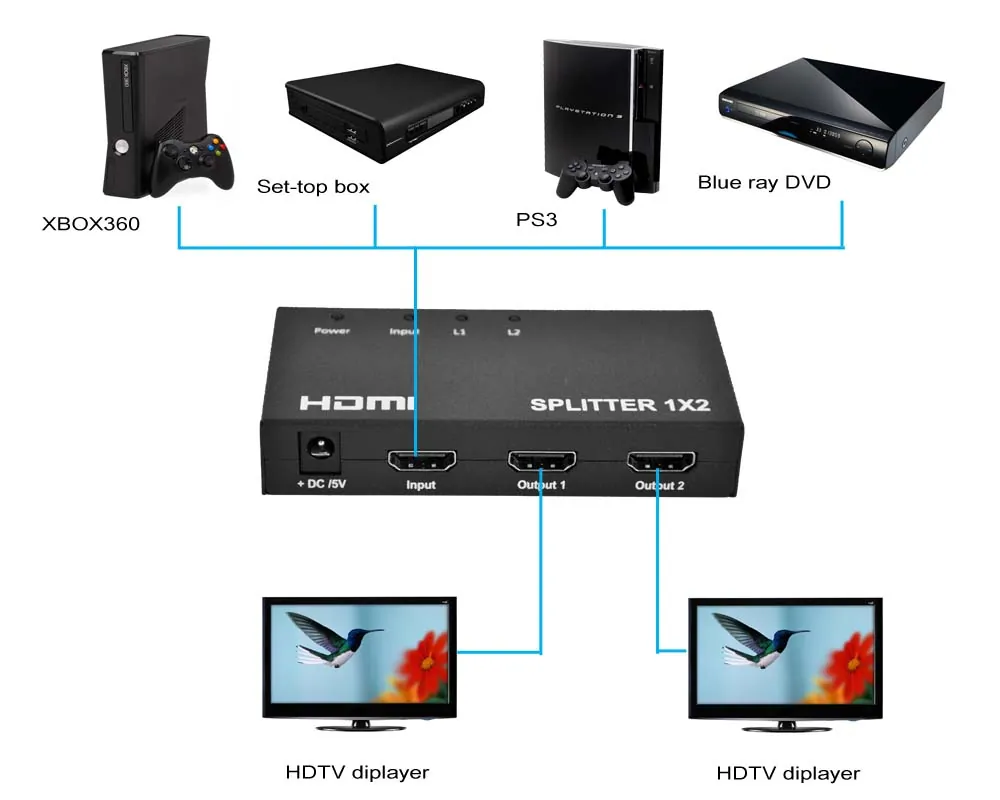

- Sketch map
Questions about this model
How do I get a price for the HDMI splitter 1 to 2
Email [email protected] with the model and the quantity, and tell us the resolution and the distance the signal has to travel.
Is this model CE and FCC certified
Certificates are held per product line. Tell us the destination market and we will send the ones that apply to this model.
Can this be supplied under our own brand
Yes. Housing, branding and functions can be adapted for OEM and ODM projects.
Ask about the HDMI splitter 1 to 2
Model, quantity, resolution and distance is all we need.
