Donaldson Filters

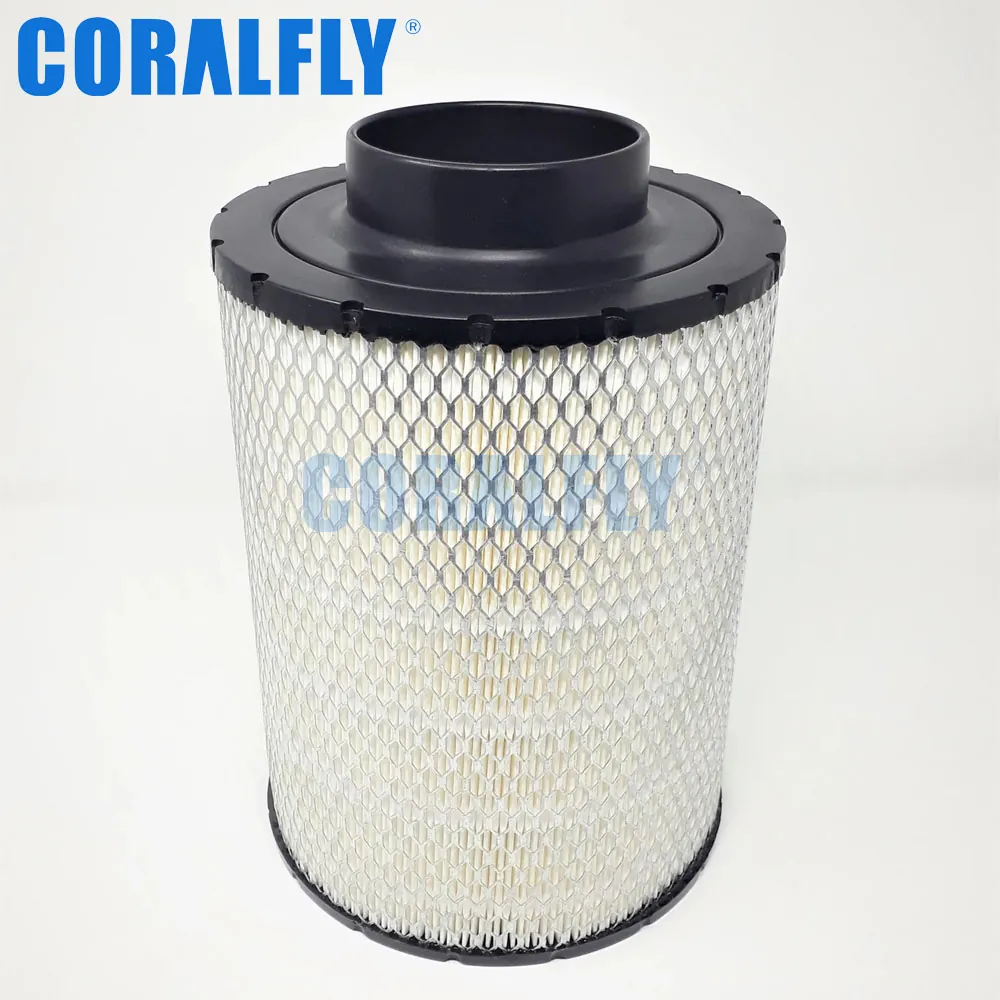

Coralfly wholesale Air filter B085011 ECB085011

B085011

Media on Hollingsworth & Vose or Ahlstrom paper. Delivery about 15 workdays after prepay. Every filter is inspected before shipment and packed in a new five-layer box.

Ask about this filter Email for a price

Attributes

Outlet Diameter	101.6 mm (4.00 inch)
Body Diameter Maximum	216 mm (8.50 inch)
Body Length	279.3 mm (11.00 inch)
Efficiency	99.9
Efficiency Test Std	ISO 5011
Rated Flow LR	7.9 m³/min (279 cfm)
Rated Flow MR	11.3 m³/min (399 cfm)
Rated Flow HR	13.3 m³/min (470 cfm)
Restriction LR	102 mm H2O (4.02 inch H2O)
Restriction MR	152 mm H2O (5.98 inch H2O)
Restriction HR	203 mm H2O (7.99 inch H2O)
Family	ECB
Type	Primary
Style	Round
Brand	CORALFLY
Media Type	Cellulose

Packaged Dimensions

Gross Length	8.8 IN
Gross Width	9 IN
Gross Height	13 IN
Gross Weight	3.13 LB
Gross Volume	0.5958 FT3

OEM Cross Reference

Manufacturer Name	Manufacturer Part #
AC DELCO	A1474C
BAUDOUIN	16061240V
BIG A	94637
CATERPILLAR	3I0003
CUMMINS	2912986
FORD	9576B085011
FREIGHTLINER	DNB085011
GILLIG	0139767
HAVAM	HD1915
HERKULES (TELSNIG)	B085008
HOBART	181128
KRALINATOR	LA1458
LOESING	021025
PACCAR	Y06012208
VMC	AH85011
WALGAHN-MOTORENTECHN	00810020

More Photos

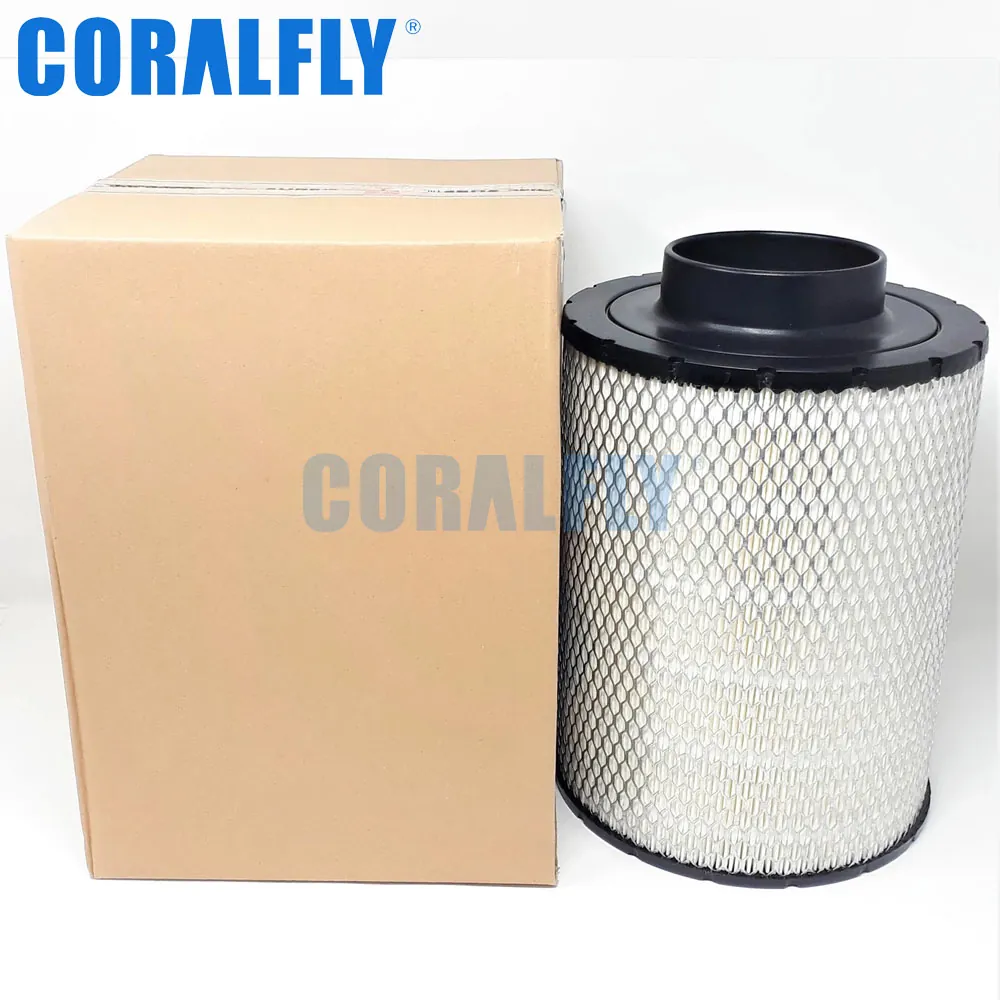

Coralfly wholesale Air filter B085011 ECB085011 photo 1

Questions About This Filter

Which filter paper do you use?

Hollingsworth & Vose paper for air filters and fuel water separator filters, and Ahlstrom paper for fuel and oil filters. Filter paper is the core to the whole filter, so choosing high quality filter paper is our mission.

How long is delivery?

After prepay CORALFLY delivers in about 15 workdays after prepay.

Can you make filters to our own brand?

Yes. CORALFLY provides OEM and ODM for all the styles of filters, including the type and colour of the shells, the external and internal frame, and the packing of the inner box.

Do you check the goods before shipping?

Every product is inspected by us before shipment. All boxes are new and have five levels of protection for the filters.

Which certificates does the factory hold?

The factory has passed TUV, ISO9001, ISO14001 and OHSAS18001. The filters meet the certification of the USA and the European Union.
