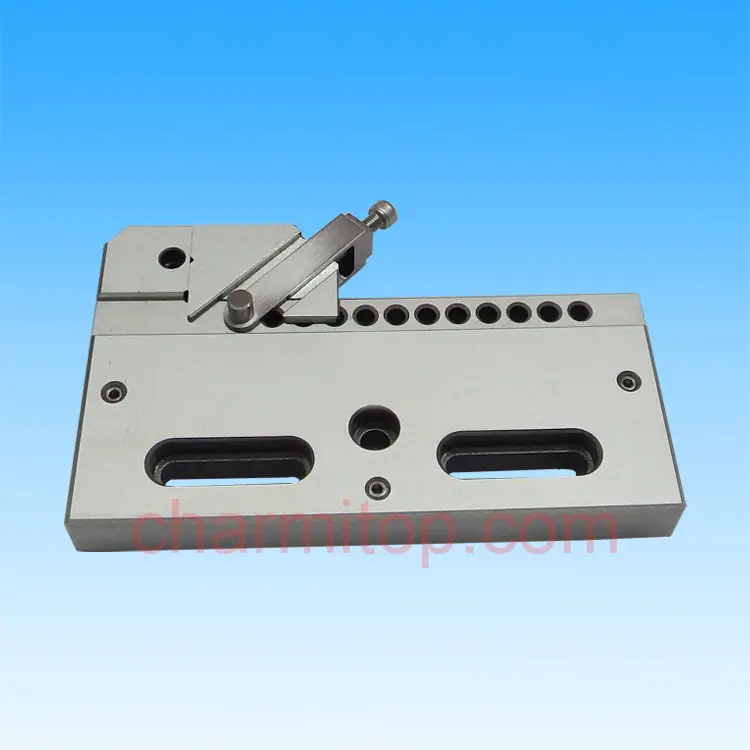

wire-cut edm vise jig fixture 7059

wire-cut edm vise jig fixture 7059

Features:

• Wire cutting EDM vise used in conjunction with the high precision wedm;
• Property of stainless steel, treated by casting, vacuum heating and deep cryogenic forming and finished grinding molding, finally the vise with good stability, good rigid without deformation;
• The alignment can be done on horizontal and parallel both sides along X, Y, Z three axis to reduce work piece positioning correction time, result in the in creasing of machine working efficiency;
• Be clipping to hold small spare parts for convenient customer, to the request of product high accuracy, but develop ils this style of since can satisfy the request of processing of customer.
• Can even save the high performance tongs of cost for the customer.

Specifications:

• Material: SUS420＆SUS440 (Stainless steel);
• Parallelism within: 100mm/2um;
• Spuareness within: 100mm/4um;
• Hardness: HRC50°-55°;
• Loading capacity: 5kg.
