Wire-cut Fixture
Precision Wire-cut EDM Vise Fine Adjustment CMP-701/702
Reference Codes In This Listing
- CMP-701/702
Codes as published in the product name. Quote them in your enquiry so we can confirm the exact part.
- Supplied by CHARMITOP MACHINE PARTS LIMITED, Shenzhen, China
- Ten years in wire-cut EDM parts, consumables and machine tool accessories
- Customized orders and OEM service accepted
Product Details

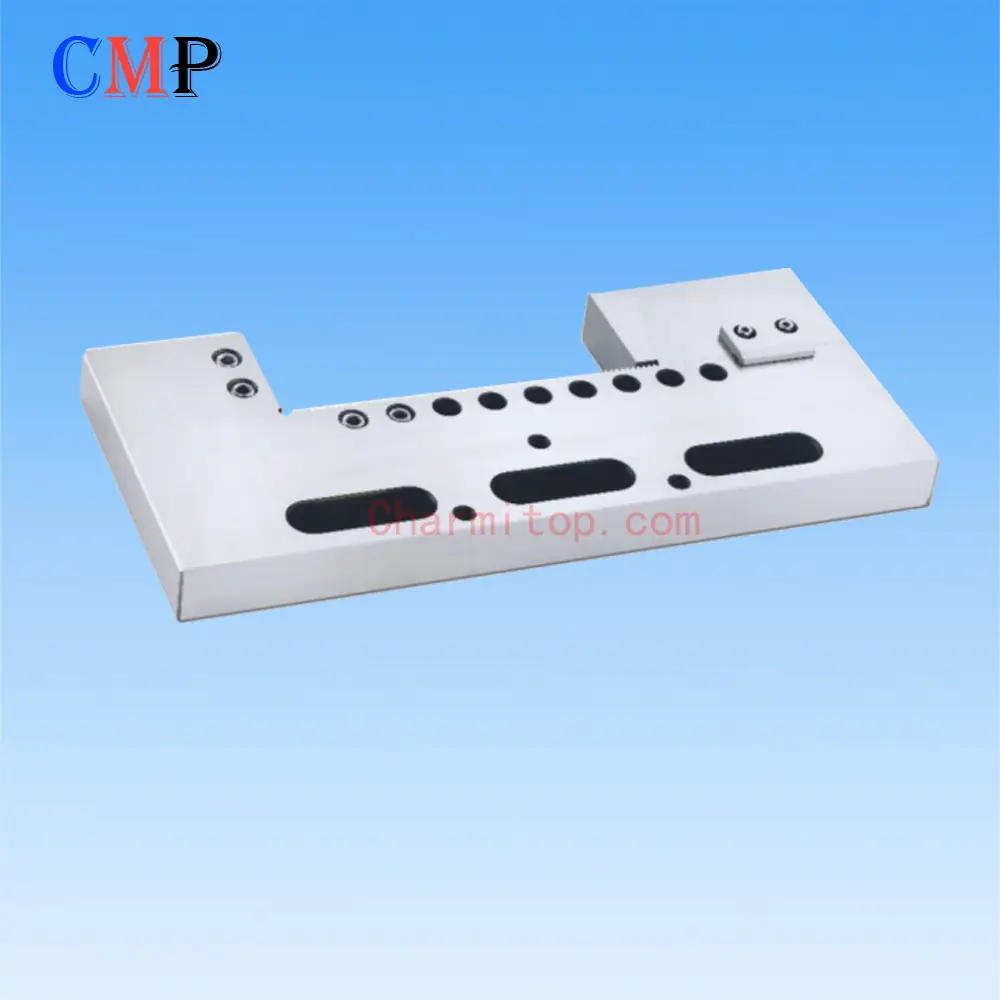

Precision Wire-cut EDM Vise Fine Adjustment CMP-701/702
Features:
- Property of stainless steel, treated by casting, vacuum heating and deep cryogenic forming and deep cryogenic forming and finished; grinding molding, finally the vise with good stability, good rigid without deformation.
- Precision wore cutting EDM vise is used in conjunction with the high precision wed;
- Jaw angle is using a special cross-eyes design with strongly clamping, not upturned, high water resistance against high flushing pressure;
Specifications:
- Parallelism within:100mm/3um;
- Spuareness within:100mm/5um;
- Material:SUS420&SUS440(Stainless steel);
- Hardness:HRC50°-55°;
- Clip to hold scope: 0-100mm,0-120mm,0-150mm.
| Model No. | A | B | C | D | E | H | G (Max) |
| CMP-701-100 | 240 | 130 | 85 | 45 | 50 | 22 | 100 |
| CMP-702-120 | 270 | 135 | 85 | 50 | 55 | 22 | 120 |
| CMP-702-150 | 320 | 145 | 95 | 50 | 75 | 22 | 150
|
