Wire-cut Fixture

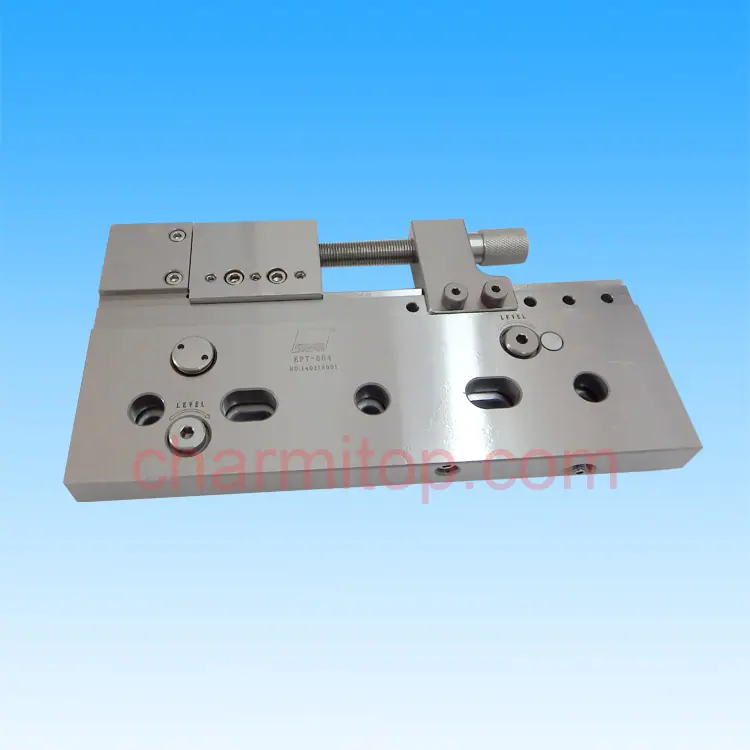

Fine Adjustment Manual Wire-cut EDM Vise Clamp Fixture 804
- Supplied by CHARMITOP MACHINE PARTS LIMITED, Shenzhen, China
- Ten years in wire-cut EDM parts, consumables and machine tool accessories
- Customized orders and OEM service accepted
Product Details
Features:
- This precision wire cut EDM vise is used in conjunction with high precision accessory.
- Super cold treating the stainless steel material after heat treatment, makes the rustless tools easy to be maintained and preserve lasting precision.

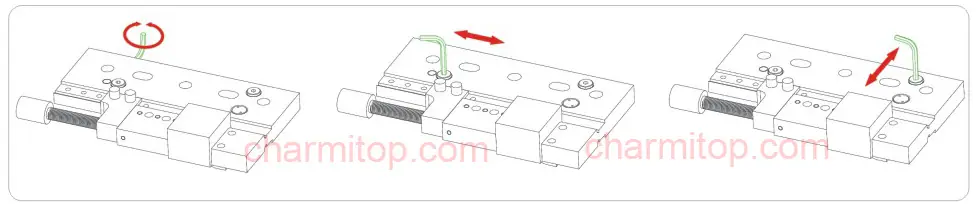

- The vise can be adjusted up and down, left and right. (X, Y, Z) front and back to make parallelism.
- The sliding tailstock is fixed by double end bolt. Their lifetime is three to five times than traditional products. After matching the standard general spare parts, the maintenance cost of time is saved.
Specifications:
- Parallelism within: 100mm/2um
- Squareness within: 100mm/3um
- Material: SUS440C
- Hardness: HRC50-55
- Clamp range: 0-100/130/160mm
| Model | A | B | C | D | Max. Loading Capacity |
| EPT-804-100 | 240 | 22 | 145 | 100 | 8 kg |
| EPT-804-130 | 270 | 22 | 149 | 130 | 10 kg |
| EPT-804-160 | 310 | 23 | 160 | 160 | 15 kg |
