Barb Type ZPT--BS-J10~J50-N6/U6-A10/A14 is listed in the vacuum pads section of the Betre catalogue under the ZPT Series with Buffer series. It is manufactured by YUEQING BETRE AUTOMATION CO., LTD. in Yueqing, Zhejiang, and supplied to automation machine builders and distributors in China and export markets.

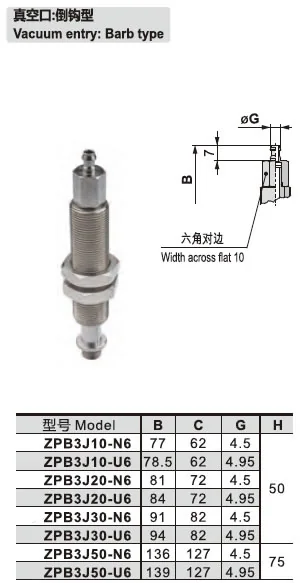

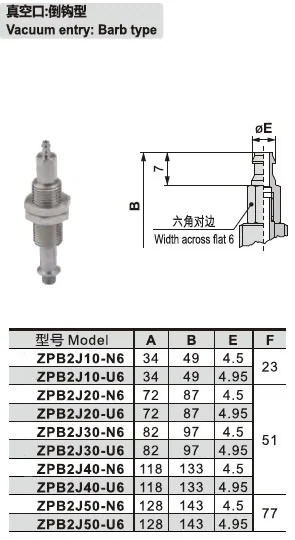

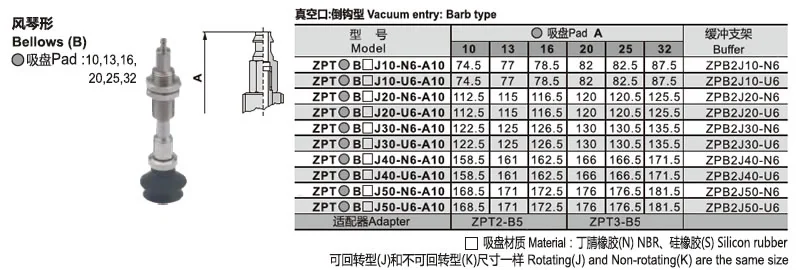

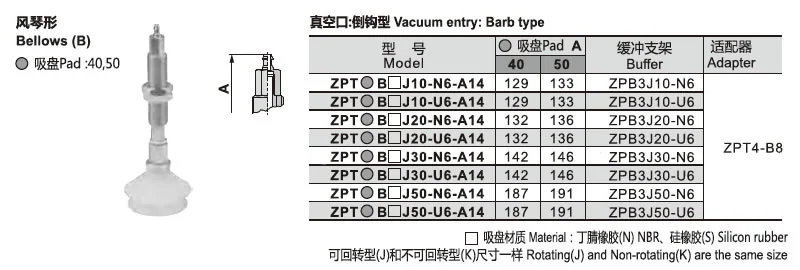

The tables and drawings below are reproduced from the Betre product catalogue for this model.
Other parts from the same ZPT Series with Buffer range, usually quoted alongside this one.
One-touchOne-touch Type ZPT--BN-J10~J50-04/06/08-A10/A14
FemaleFemale Thread Type ZPT--BN-J10~J50-B5/B01-A10/A14
BarbBarb Type ZPT--BN-J10~J50-N6/U6-A10/A14
FemaleFemale Thread Type ZPT--BN-J6~J25-B3/B5-A8
One-touchOne-touch Type ZPT--B N/S-J6~J25-04/06-A8
One-touchOne-touch Type ZPT--BS-J10~J50-04/06/08-A10/A14
FemaleFemale Thread Type ZPT--BS-J10~J50-B5/B01-A10/A14
FemaleFemale Thread Type ZPT--BS-J6~J25-B3/B5-A8Barb Type ZPT--BS-J10~J50-N6/U6-A10/A14 sits in the Vacuum Pads category of the Betre catalogue, under the ZPT Series with Buffer series.
Yes. We offer OEM and ODM services according to customers' requirements and we make our own moulds and tooling.
Email [email protected] or [email protected] with the model code and quantity, or call +86-577-61712130. Our contact person is April Huang.
Yes. We do the inspection for all the products before delivery.
Our products sell all over China and in the international markets of European, North and South American countries, Southeast Asia and Oceania.
Send the quantity and any port thread or bore requirement, and we will confirm price and lead time.
