Air preparation-Lubricator Series AL is listed in the air source treatment section of the Betre catalogue under the SMC Type FRL series. It is manufactured by YUEQING BETRE AUTOMATION CO., LTD. in Yueqing, Zhejiang, and supplied to automation machine builders and distributors in China and export markets.

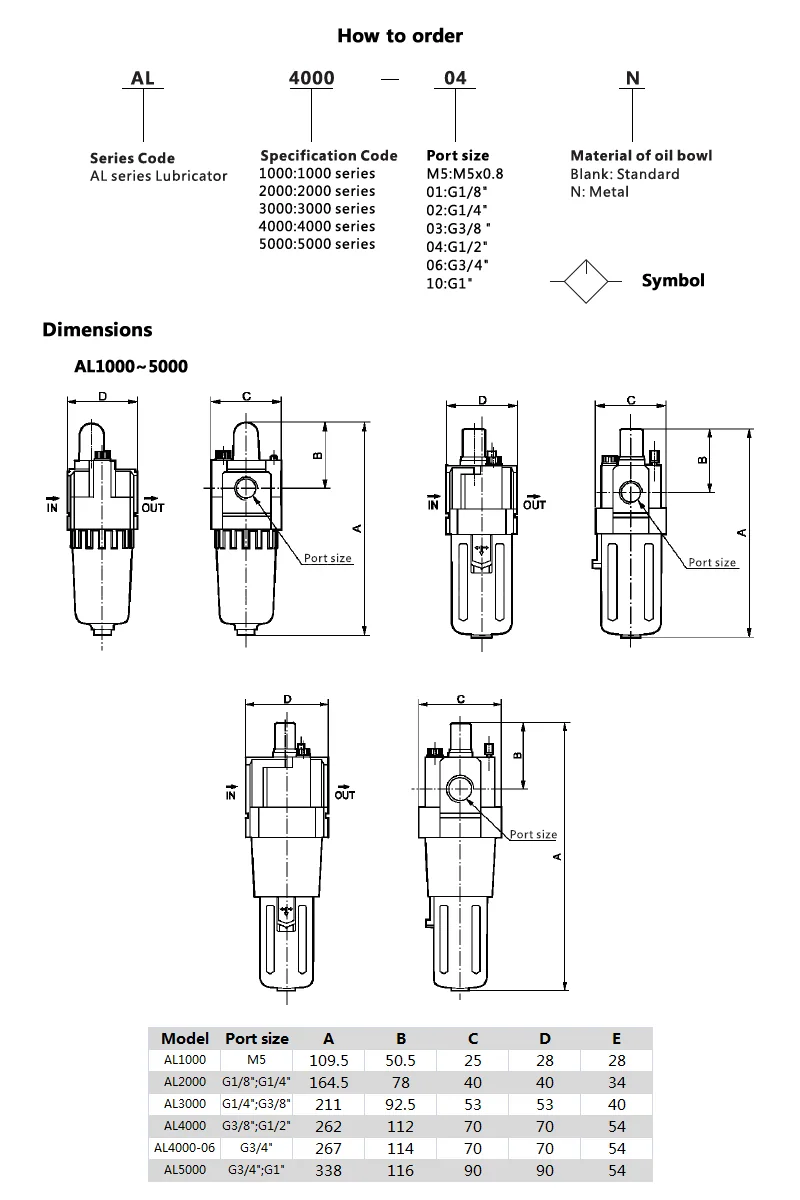

The tables and drawings below are reproduced from the Betre product catalogue for this model.
| Model | AL1000-M5 | AL2000-01 | AL2000-02 | AL3000-02 | AL3000-03 | AL4000-03 | AL4000-04 | AL4000-06 | AL5000-06 | AL5000-10 | ||
| Port size | G1/8" | G1/4" | G3/8" | G1/4" | G3/8" | G1/2" | G3/4" | G1" | ||||
| Operating mendiium | Compressed air(by 40μmfilter,lubricated or not) | |||||||||||
| Pressure range | 0.1~1.0MPa(14.5~145Psi)(1~10bar) | |||||||||||
| Temperature range | -10~60℃ | |||||||||||
| Ensured pressure resistance | 1.6MPa(232psi)(16bar) | |||||||||||
| Type of mounting | Via accessories | |||||||||||
| Assembly position | Vertical±5° | |||||||||||
| Bowl guard | Metal bowl guard | |||||||||||
| Lubricant recommended | ISO VG32 or equivalent | |||||||||||
| Body material | Die casting aluminum alloy | |||||||||||
Other parts from the same SMC Type FRL range, usually quoted alongside this one.
Air preparation-Lubricator Series AL sits in the Air Source Treatment category of the Betre catalogue, under the SMC Type FRL series.
Yes. We offer OEM and ODM services according to customers' requirements and we make our own moulds and tooling.
Email [email protected] or [email protected] with the model code and quantity, or call +86-577-61712130. Our contact person is April Huang.
Yes. We do the inspection for all the products before delivery.
Our products sell all over China and in the international markets of European, North and South American countries, Southeast Asia and Oceania.
Send the quantity and any port thread or bore requirement, and we will confirm price and lead time.
