SC-I is listed in the pneumatic components section of the Betre catalogue under the Cylinder Accessories series. It is manufactured by YUEQING BETRE AUTOMATION CO., LTD. in Yueqing, Zhejiang, and supplied to automation machine builders and distributors in China and export markets.

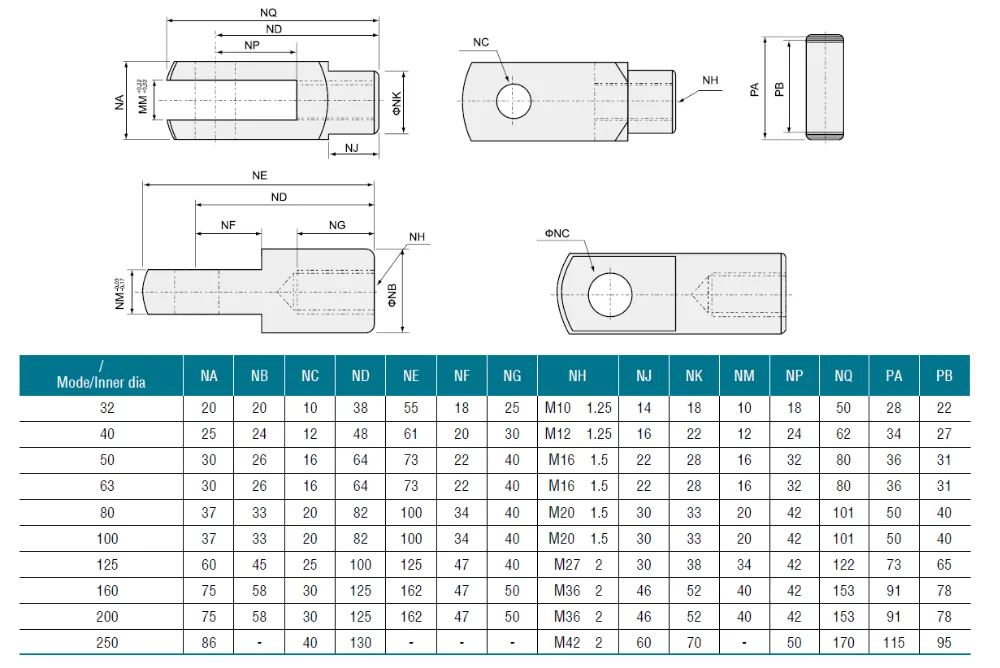

The tables and drawings below are reproduced from the Betre product catalogue for this model.
1. I Connector for Pneumatic Cylinder
2. Used for SU, SUD, SUJ, SC, SCD, SCJ, SCT series standard cylinder
3. Suitable for the Inner diameter: 32-250mm
Specification for type
Y/I joint size
| Cylinder Accessories Series | Description | Model | Inner diameter |
| SC Standard Cylinder | Single earing | CA | ø32, ø40, ø50, ø63, ø80, ø100, ø125, ø160, ø200, ø250 |
| Double earing | CB | ø32, ø40, ø50, ø63, ø80, ø100, ø125, ø160, ø200, ø250 | |
| CB shaped pin | CB | ø32, ø40, ø50, ø63, ø80, ø100, ø125, ø160, ø200, ø250 | |
| Y joint | Y | ø32, ø40, ø50, ø63, ø80, ø100, ø125, ø160, ø200, ø250 | |
| Y shaped pin | Y | ø32, ø40, ø50, ø63, ø80, ø100, ø125, ø160, ø200, ø250 | |
| I type joint | I | ø32, ø40, ø50, ø63, ø80, ø100, ø125, ø160, ø200, ø250 | |
| Flange | FA | ø32, ø40, ø50, ø63, ø80, ø100, ø125, ø160, ø200, ø250 | |
| Flange | FB | ø32, ø40, ø50, ø63, ø80, ø100, ø125, ø160, ø200, ø250 | |
| Foot rest | LB | ø32, ø40, ø50, ø63, ø80, ø100, ø125, ø160, ø200, ø250 | |
| Middle axle pin | TC | ø32, ø40, ø50, ø63, ø80, ø100, ø125, ø160, ø200, ø250 | |
| TC-M base | TC-M | ø40, ø50, ø63, ø80, ø100, ø125, ø160 | |
| ISO6431 Standard Cylinder | Fisheye joint | U joint | ø8, ø10, ø12, ø16, ø20, ø25, ø32, ø40, ø50, ø63, ø80, ø100, ø125, ø160, ø200, ø250 |
| Floating joint | F joint | ø8, ø10, ø12, ø16, ø20, ø25, ø32, ø40, ø50, ø63, ø80, ø100, ø125 | |
| Single earing | CA | ø32, ø40, ø50, ø63, ø80, ø100 | |
| Double earing | CB | ø32, ø40, ø50, ø63, ø80, ø100 | |
| CB shaped pin | CB | ø32, ø40, ø50, ø63, ø80, ø100 | |
| Flange | FA | ø32, ø40, ø50, ø63, ø80, ø100 | |
| Flange | FB | ø32, ø40, ø50, ø63, ø80, ø100 | |
| Foot rest | LB | ø32, ø40, ø50, ø63, ø80, ø100 | |
| Y joint | Y | ø32, ø40, ø50, ø63, ø80, ø100 | |
| I joint | I | ø32, ø40, ø50, ø63, ø80, ø100 | |
| Inclined earing | CR | ø32, ø40, ø50, ø63, ø80, ø100 | |
| Stainless Steel Mini Cylinder | Foot rest | CM-LB | ø20, ø25, ø32, ø40 |
| Flange | CM-F | ø20, ø25, ø32, ø40 | |
| I joint | CM-I | ø20, ø25, ø32, ø40 | |
| Y joint | CM-Y | ø20, ø25, ø32, ø40 | |
| MAL Aluminium Alloy Minni Cylinder | Flange | FA | ø20, ø25, ø32, ø40 |
| Foot rest | LB | ø20, ø25, ø32, ø40 | |
| End single earing | SDB | ø20, ø25, ø32, ø40 | |
| MOB Oil Cylinder | Single earing | CA | ø32, ø40, ø50, ø63, ø80, ø100, ø125, ø160 |
| Double earing | CB | ø32, ø40, ø50, ø63, ø80, ø100, ø125, ø160 | |
| Flange | FA | ø32, ø40, ø50, ø63, ø80, ø100, ø125, ø160 | |
| Flange | FB | ø32, ø40, ø50, ø63, ø80, ø100, ø125, ø160 | |
| Foot rest | LB | ø32, ø40, ø50, ø63, ø80, ø100, ø125, ø160 | |
| Y joint | Y | ø32, ø40, ø50, ø63, ø80, ø100, ø125 | |
| I joint | I | ø32, ø40, ø50, ø63, ø80, ø100, ø125 | |
| MBB/QGB Standard Cylinder | Single earing | CA | ø32, ø40, ø50, ø63, ø80, ø100, ø125, ø160, ø200, ø250, ø300 |
| Double earing | CB | ø32, ø40, ø50, ø63, ø80, ø100, ø125, ø160, ø200, ø250, ø300 | |
| CB shaped pin | CB | ø32, ø40, ø50, ø63, ø80, ø100, ø125, ø160, ø200, ø250, ø300 | |
| Flange | FA | ø32, ø40, ø50, ø63, ø80, ø100 | |
| MBB Inclined earing | MBB | ø32, ø40, ø50, ø63, ø80, ø100 |
Other parts from the same Cylinder Accessories range, usually quoted alongside this one.
SC-I sits in the Pneumatic Components category of the Betre catalogue, under the Cylinder Accessories series.
Yes. We offer OEM and ODM services according to customers' requirements and we make our own moulds and tooling.
Email [email protected] or [email protected] with the model code and quantity, or call +86-577-61712130. Our contact person is April Huang.
Yes. We do the inspection for all the products before delivery.
Our products sell all over China and in the international markets of European, North and South American countries, Southeast Asia and Oceania.
Send the quantity and any port thread or bore requirement, and we will confirm price and lead time.
