PLM is listed in the pneumatic fittings section of the Betre catalogue under the Black And White Fittings series. It is manufactured by YUEQING BETRE AUTOMATION CO., LTD. in Yueqing, Zhejiang, and supplied to automation machine builders and distributors in China and export markets.
The tables and drawings below are reproduced from the Betre product catalogue for this model.
Bulkhead Union Elbow
Quick connecting pneumatic tube fitting
Characteristic
1. One-touch tube fittings are used in pneumatic piping.
2. The tube fittings come in a wide variety of models to meet all your needs in pneumatic piping.
3. Even after installation, the direction of the tube can be changed freely.
4. Nickel-plated metal body ensures Anti-corrosion and Anti-contamination.
5. All R and NPT threads are Pre-coated sealant.
6. All cylindrical threads are standard with O-ring seals.
Specification
| Fluid | Air/Vacuum |
| Operating Pressure | 0~1.0Mpa |
| Negative Pressure | -100Kpa(10Torr) |
| Max Pressure | 1.5Mpa |
| Operating Temperature | 5~60℃ |
| Applicable Tube | PU/Nylon and Polyurethane |
How to order
Structure chart

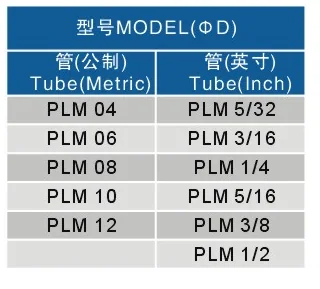

Model Selection
Other parts from the same Black And White Fittings range, usually quoted alongside this one.
PLM sits in the Pneumatic Fittings category of the Betre catalogue, under the Black And White Fittings series.
Yes. We offer OEM and ODM services according to customers' requirements and we make our own moulds and tooling.
Email [email protected] or [email protected] with the model code and quantity, or call +86-577-61712130. Our contact person is April Huang.
Yes. We do the inspection for all the products before delivery.
Our products sell all over China and in the international markets of European, North and South American countries, Southeast Asia and Oceania.
Send the quantity and any port thread or bore requirement, and we will confirm price and lead time.
