Regulator NAR-200
Regulator

Regulator NAR-200

Regulator NAR-200 is listed in the air source treatment section of the Betre catalogue under the NAR Series Regulator series. It is manufactured by YUEQING BETRE AUTOMATION CO., LTD. in Yueqing, Zhejiang, and supplied to automation machine builders and distributors in China and export markets.

Category
Air Source Treatment
Series
NAR Series Regulator
Manufacturer
YUEQING BETRE AUTOMATION CO., LTD.
Made In
Yueqing, Zhejiang, China
Production Since
2002
Request A Quote Talk To An Engineer Request A Sample

Specifications And Dimensions

The tables and drawings below are reproduced from the Betre product catalogue for this model.

NAR Series Regulator NAR-200

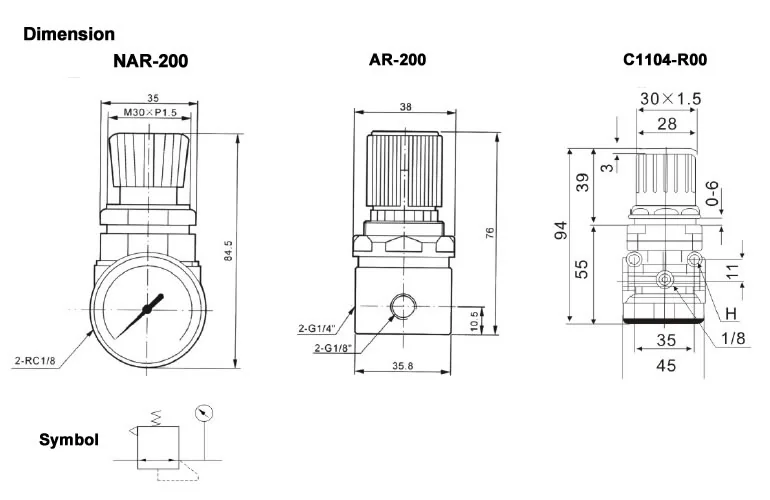

Dimension drawingDimension drawingDimension drawing

Specification



Model NAR-200 AR200 C1104-R00
Rated Flow(L/min)* 500 500 600
Caliber Size** G1/4"
Pressure Gauge Caliber Size G1/8"
Pressure Gauge G36-10-01
Ensured Pressure Resistance 1.5MPa
Highest Working Pressure 1.0MPa
Pressure Regulating Range 0.05~0.85MPa/0.02~0.2MPa
Ambient and Fluid Temperature 5~60℃
Valve Type Relieving Type
NOTE:
*Under condition inlet pressure 0.7MPa,outlet pressure 0.5MPa.
**Rc. And NPT port size are available.
Dimension drawing

Related Models

Other parts from the same NAR Series Regulator range, usually quoted alongside this one.

AC Series Air source treatment F.R.L.combinationACAC Series Air source treatment F.R.L.combinationNew Type Air source treatment F.R.L.combination Series AC-ANewNew Type Air source treatment F.R.L.combination Series AC-AAir source treatment Blue Type F.R.L.combination Series ACAirAir source treatment Blue Type F.R.L.combination Series ACNew Type F.R.L.combination (NEW PISTON)Series AC-GNewNew Type F.R.L.combination (NEW PISTON)Series AC-GAF Series Air Source Treatment Preparation unit--FilterAFAF Series Air Source Treatment Preparation unit--FilterNew Type Air Source Treatment Filter Series AF-ANewNew Type Air Source Treatment Filter Series AF-AAir Source Treatment Blue Type Filter Series AFAirAir Source Treatment Blue Type Filter Series AFAir source treatment Preparation unit--FR.L.combination Series AFCAirAir source treatment Preparation unit--FR.L.combination Series AFC

All Air Source Treatment Models

Questions About Regulator

Which Category Does Regulator Belong To

Regulator NAR-200 sits in the Air Source Treatment category of the Betre catalogue, under the NAR Series Regulator series.

Can Regulator Be Made To A Custom Specification

Yes. We offer OEM and ODM services according to customers' requirements and we make our own moulds and tooling.

How Do I Order Regulator

Email [email protected] or [email protected] with the model code and quantity, or call +86-577-61712130. Our contact person is April Huang.

Are Products Inspected Before Shipping

Yes. We do the inspection for all the products before delivery.

Which Markets Do You Supply

Our products sell all over China and in the international markets of European, North and South American countries, Southeast Asia and Oceania.

Get Pricing For Regulator

Send the quantity and any port thread or bore requirement, and we will confirm price and lead time.
