Air Source Treatment Filter and Regulator Series GFR is listed in the air source treatment section of the Betre catalogue under the Airtac Type G Series New Design series. It is manufactured by YUEQING BETRE AUTOMATION CO., LTD. in Yueqing, Zhejiang, and supplied to automation machine builders and distributors in China and export markets.

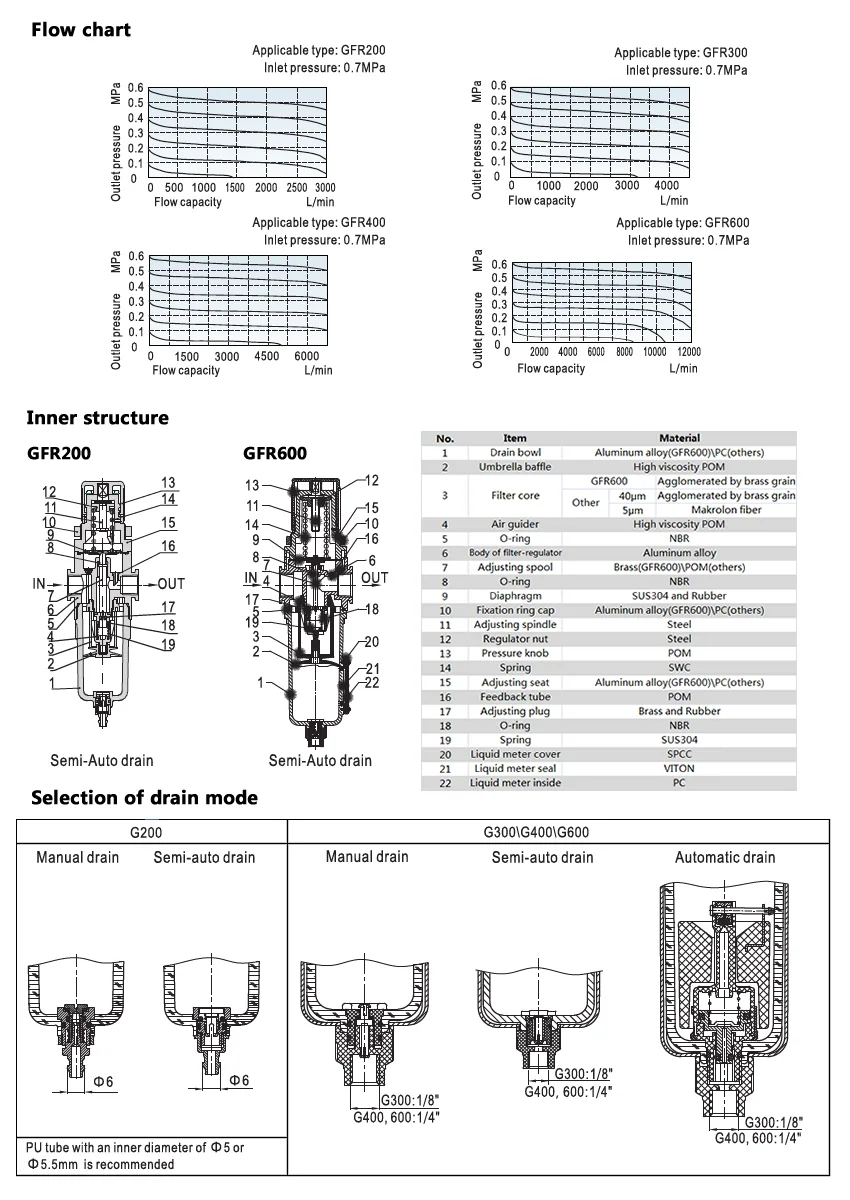

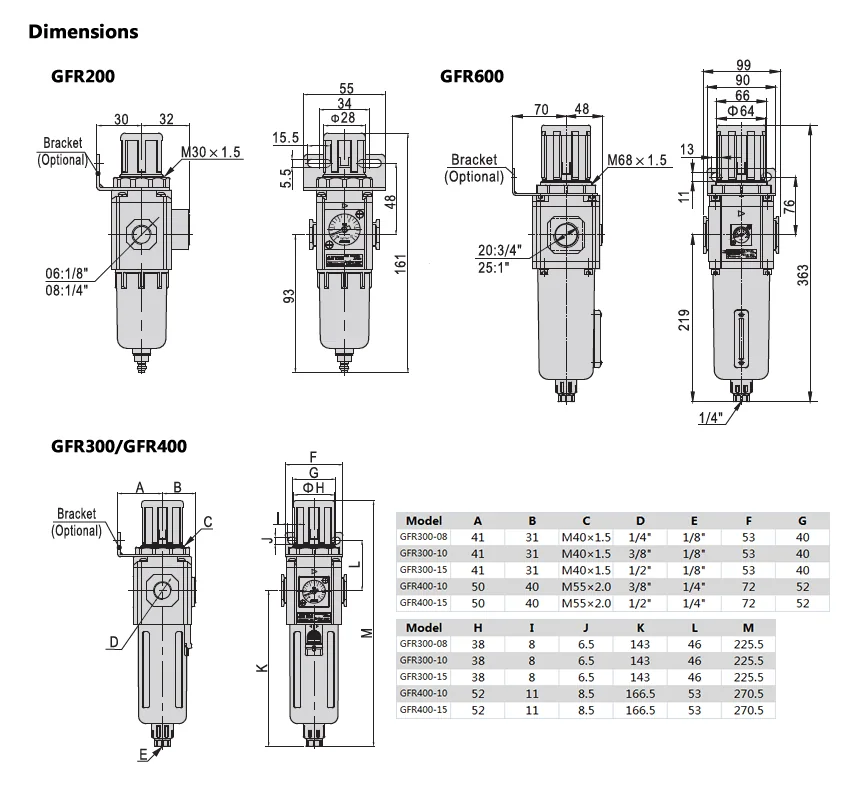

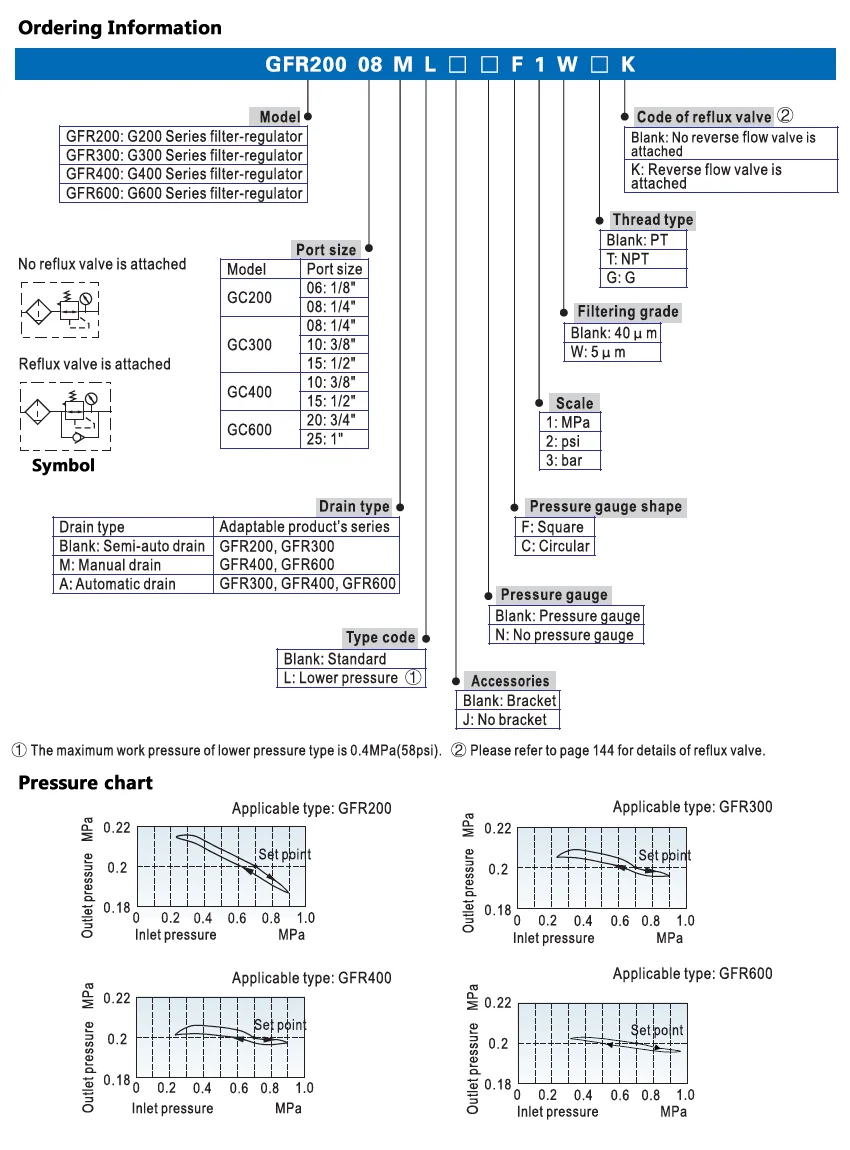

The tables and drawings below are reproduced from the Betre product catalogue for this model.
| Model | GFR200-06 | GFR200-08 | GFR300-08 | GFR300-10 | GFR300-15 | GFR400-10 | GFR400-15 | GFR600-20 | GFR600-25 | ||
| Fluid | Air | ||||||||||
| Port size | 1/8" | 1/4" | 1/4" | 3/8" | 1/2" | 3/8" | 1/2" | 3/4" | 1" | ||
| Filtering range | 40μm or 5μm | ||||||||||
| Pressure range | Semi-auto and automatic drain:0.15~0.9MPa(20~130psi);Manual drain:0.05~0.9MPa(7~130psi) | ||||||||||
| Max.pressure | 1.0MPa(145psi) | ||||||||||
| Proof pressure | 1.5MPa(215psi) | ||||||||||
| Temperature range | -20~70℃ | ||||||||||
| Capacity of drain bowl | 10CC | 40CC | 80CC | 230CC | |||||||
| Weight | 220g | 500g | 1030g | 2400g | |||||||
Other parts from the same Airtac Type G Series New Design range, usually quoted alongside this one.
Air Source Treatment Filter and Regulator Series GFR sits in the Air Source Treatment category of the Betre catalogue, under the Airtac Type G Series New Design series.
Yes. We offer OEM and ODM services according to customers' requirements and we make our own moulds and tooling.
Email [email protected] or [email protected] with the model code and quantity, or call +86-577-61712130. Our contact person is April Huang.
Yes. We do the inspection for all the products before delivery.
Our products sell all over China and in the international markets of European, North and South American countries, Southeast Asia and Oceania.
Send the quantity and any port thread or bore requirement, and we will confirm price and lead time.
