Springs Coupling BC5-I is listed in the shaft couplings section of the Betre catalogue under the Shaft Coupling series. It is manufactured by YUEQING BETRE AUTOMATION CO., LTD. in Yueqing, Zhejiang, and supplied to automation machine builders and distributors in China and export markets.

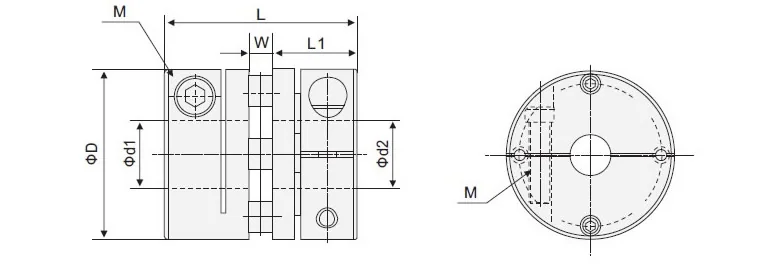

The tables and drawings below are reproduced from the Betre product catalogue for this model.
| Model | Inner Dia | Outer Dia. | Length | W | L1 | Thread | Wrench Torque | |
| Min.(Ød1/Ød2) | Max.(Ød1/Ød2) | ØD | L | M | （N.m) | |||
| BC5-26V-d1-d2 | 4 | 10 | 26 | 24.2 | 2.6 | 10.8 | M3 | 1.5 |
| BC5-34VS-d1-d2 | 5 | 14 | 34 | 28.1 | 3.3 | 12.4 | M3 | 1.5 |
| BC5-34V-d1-d2 | 5 | 14 | 34 | 32.3 | 3.3 | 14.5 | M4 | 1.5 |
| BC5-39V-d1-d2 | 8 | 16 | 39 | 34.1 | 4.1 | 15.0 | M4 | 2.5 |
| BC5-44V-d1-d2 | 8 | 20 | 44 | 34.6 | 4.6 | 15.0 | M4 | 2.5 |
| BC5-50V-d1-d2 | 10 | 22 | 50 | 40.0 | 5.0 | 17.5 | M5 | 7.0 |
| BC5-56V-d1-d2 | 12 | 25 | 56 | 44.5 | 5.5 | 19.5 | M5 | 7.0 |
| BC5-68V-d1-d2 | 14 | 35 | 68 | 53 | 6.0 | 23.5 | M6 | 12.0 |
| BC5-82V-d-d2 | 24 | 40 | 82 | 68 | 8.0 | 30.0 | M8 | 16.0 |
| Model | Rated Torque (N.m) |
Max. torque (N.m) |
Max.Speed (rpm) |
Inertia Moment (kg.m²) |
Static torque rigidity (N.m/rad) |
Angular Misalignment (℃) |
Axial Misalignment (mm) |
Material |
Plate Material |
Surface Treatment |
Weight (g) |
| BC5-26V-d1-d2 | 1.4 | 2.8 | 10000 | 1.8x10-6 | 690 | 1.0 | ±0.2 | high tensile aluminium alloy | Imported SUS304 | anodicoxidation treatment | 30 |
| BC5-34VS-d1-d2 | 2.8 | 5.6 | 10000 | 7.1x10-6 | 1620 | 1.0 | ±0.2 | 60 | |||
| BC5-34V-d1-d2 | 2.8 | 5.6 | 10000 | 7.2x10-6 | 1650 | 1.0 | ±0.2 | 62 | |||
| BC5-39V-d1-d2 | 5.8 | 11.6 | 10000 | 1.8x10-5 | 2500 | 1.0 | ±0.2 | 95 | |||
| BC5-44V-d1-d2 | 8.7 | 17.4 | 10000 | 2.5x10-5 | 2900 | 1.0 | ±0.2 | 111 | |||
| BC5-50V-d1-d2 | 15 | 30 | 10000 | 8.2x10-5 | 6700 | 1.0 | ±0.2 | 195 | |||
| BC5-56V-d1-d2 | 25 | 50 | 10000 | 1.0x10-4 | 8400 | 1.0 | ±0.2 | 258 | |||
| BC5-68V-d1-d2 | 55 | 110 | 10000 | 1.9x10-4 | 11500 | 1.0 | ±0.2 | 442 | |||
| BC5-82V-d-d2 | 80 | 160 | 10000 | 7.0x10-4 | 14550 | 1.0 | ±0.2 | 885 |
