Shock Absorber AC-K Series - Self Compensation is listed in the shock absorbers section of the Betre catalogue under the Shock Absorber series. It is manufactured by YUEQING BETRE AUTOMATION CO., LTD. in Yueqing, Zhejiang, and supplied to automation machine builders and distributors in China and export markets.
The tables and drawings below are reproduced from the Betre product catalogue for this model.
| Model |
Stroke (mm) |
Max.Nm Per Cycle (Et) |
Max.Nm Per Hour (Etc) | Max. Effective Mass (Me) kg |
Max. Impact Speed(v) m/s |
Operating Temperature (℃) |
Weight (g) |
||
| AC-1415-6K | 15 | 9.8 | 35280 | 30 | 1 | -10~+80 | 80 | ||
| AC-1415-7K | 15 | 9.8 | 35280 | 15 | 1.5 | -10~+80 | 80 | ||
| AC-2030-5K | 30 | 44 | 26460 | 60 | 1.2 | -10~+80 | 185 | ||
| AC-2030-6K | 30 | 44 | 26460 | 30 | 1.7 | -10~+80 | 185 | ||
| AC-2030-7K | 30 | 44 | 26460 | 15 | 2.4 | -10~+80 | 185 | ||
| AC-2030-16K | 30 | 44 | 26460 | 5 | 4.2 | -10~+80 | 205 | ||
| AC-2030-18K | 30 | 44 | 26460 | 3 | 6 | -10~+80 | 205 | ||
| AC-2050-11K | 50 | 59 | 35280 | 30 | 2 | -10~+80 | 250 | ||
| AC-2050-12K | 50 | 59 | 35280 | 15 | 2.8 | -10~+80 | 250 | ||
| AC-2050-13K | 50 | 59 | 35280 | 8 | 3.8 | -10~+80 | 250 | ||
| AC-2050-16K | 50 | 59 | 35280 | 5 | 5 | -10~+80 | 250 | ||
| AC-2050-17K | 50 | 59 | 35280 | 3 | 6.8 | -10~+80 | 235 | ||
| AC-2020-2K | 20 | 36 | 22000 | 27 | 2 | -10~+80 | 170 | ||
| AC-2025-2K | 25 | 40 | 24200 | 35 | 2 | -10~+80 | 180 | ||

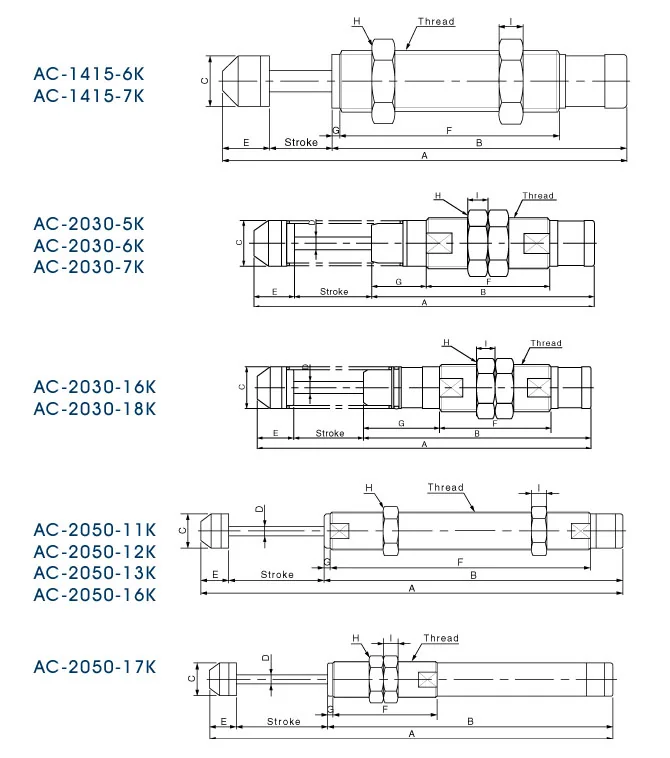

| Model | Thread | Stroke (mm) | A | B | C | D | E | F | G | H | I | J | K | |
| AC-1415-6K | M14×1.5 | 15 | 94.7 | 69.2 | 12 | 4 | 10.5 | 53 | 2 | 19 | 5 | - | - | |
| AC-1415-7K | M14×1.5 | 15 | 94.7 | 69.2 | 12 | 4 | 10.5 | 53 | 2 | 19 | 5 | - | - | |
| AC-2030-5K | M20×1.5 | 30 | 133.7 | 86 | 17.8 | 5 | 17.7 | 47.6 | 21 | 26 | 7 | 18.2 | 10 | |
| AC-2030-6K | M20×1.5 | 30 | 133.7 | 86 | 17.8 | 5 | 17.7 | 47.6 | 21 | 26 | 7 | 18.2 | 10 | |
| AC-2030-7K | M20×1.5 | 30 | 133.7 | 86 | 17.8 | 5 | 17.7 | 47.6 | 21 | 26 | 7 | 18.2 | 10 | |
| AC-2030-16K | M20×1.5 | 30 | 145.5 | 97.8 | 17.8 | 5 | 17.7 | 47.6 | 32.7 | 26 | 7 | 18.2 | 10 | |
| AC-2030-18K | M20×1.5 | 30 | 145.5 | 97.8 | 17.8 | 5 | 17.7 | 47.6 | 32.7 | 26 | 7 | 18.2 | 10 | |
| AC-2050-11K | M20×1.5 | 50 | 222 | 156.2 | 17.8 | 5 | 15.8 | 136.5 | 4 | 26 | 7 | 18.2 | 10 | |
| AC-2050-12K | M20×1.5 | 50 | 222 | 156.2 | 17.8 | 5 | 15.8 | 136.5 | 4 | 26 | 7 | 18.2 | 10 | |
| AC-2050-13K | M20×1.5 | 50 | 222 | 156.2 | 17.8 | 5 | 15.8 | 136.5 | 4 | 26 | 7 | 18.2 | 10 | |
| AC-2050-16K | M20×1.5 | 50 | 222 | 156.2 | 17.8 | 5 | 15.8 | 136.5 | 4 | 26 | 7 | 18.2 | 10 | |
| AC-2050-17K | M20×1.5 | 50 | 221.8 | 156 | 17.8 | 5 | 15.8 | 60 | 4 | 26 | 7 | 18.2 | 10 | |
| AC-2020-2K | M20×1.5 | 20 | 129.3 | 95 | 18 | 5 | 15.8 | 74.5 | 3.8 | 26 | 7 | - | - | |
| AC-2025-2K | M20×1.5 | 25 | 140.4 | 100 | 18 | 5 | 15.8 | 81 | 2.7 | 26 | 7 | - | - | |
