New Type Air source treatment FR.L.combination Series AFC-A is listed in the air source treatment section of the Betre catalogue under the Airtac Type Advanced a Series series. It is manufactured by YUEQING BETRE AUTOMATION CO., LTD. in Yueqing, Zhejiang, and supplied to automation machine builders and distributors in China and export markets.

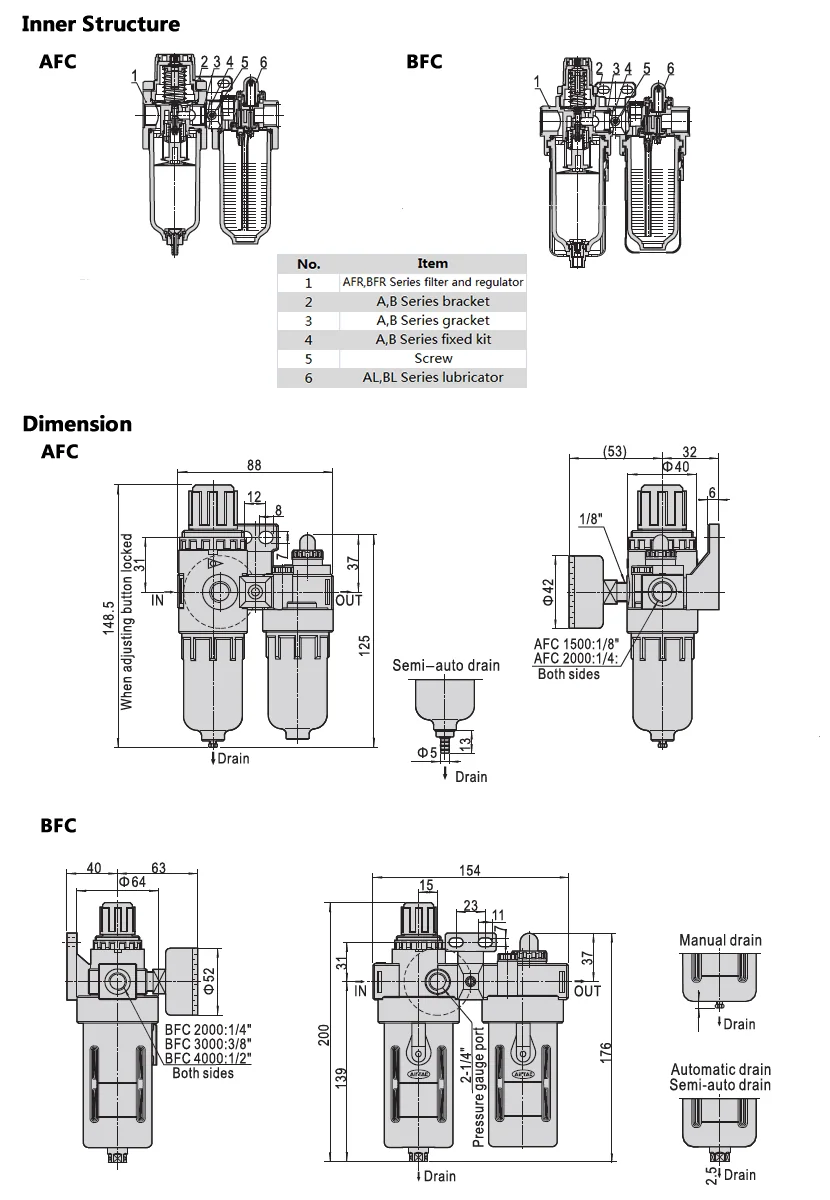

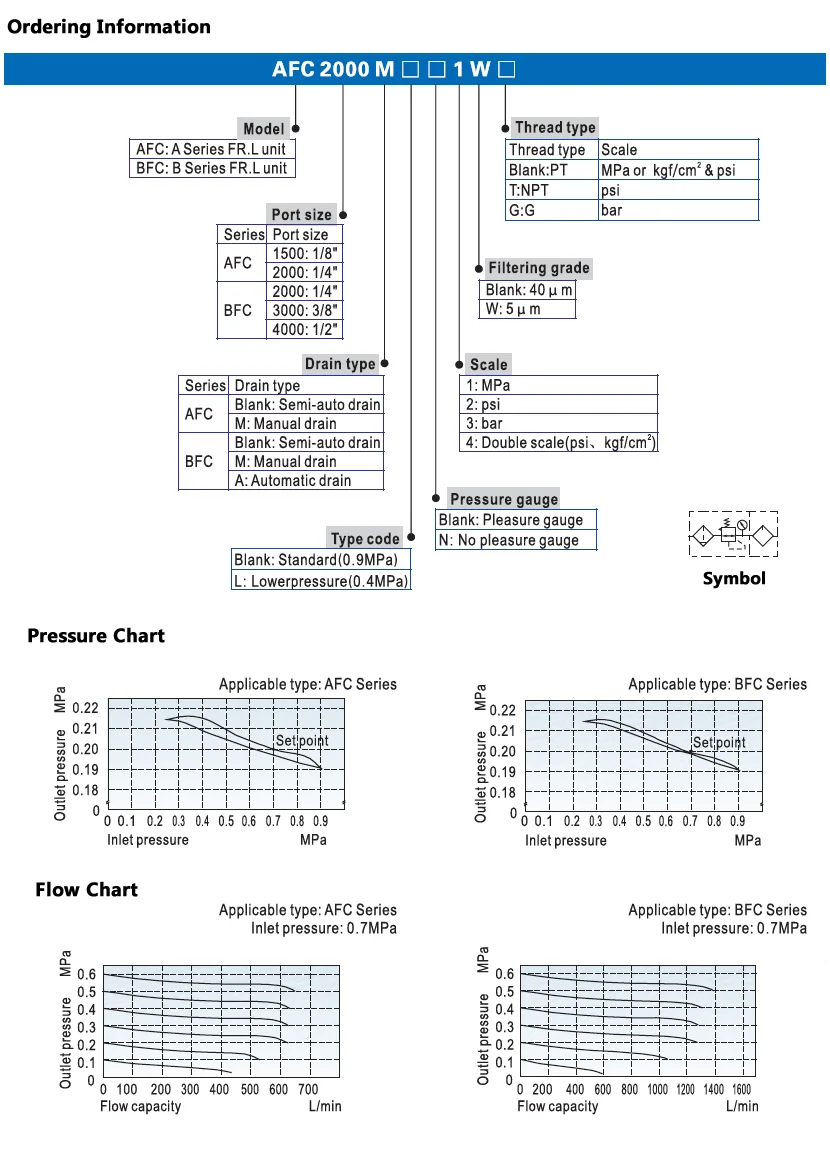

The tables and drawings below are reproduced from the Betre product catalogue for this model.
| Model | AFC1500-A | AFC2000-A | BFC2000-A | BFC3000-A | BFC4000-A | ||
| Fluid | Air | ||||||
| Port size | 1/8" | 1/4" | 1/4" | 3/8" | 1/2" | ||
| Filter grade | 40μm or 5μm | ||||||
| Pressure range | Semi-auto and automatic drain:0.15~0.9MOa(20~130Psi) Manual drain:0.05~0.9MPa(7~130Psi) | ||||||
| Max. pressure | 1.0MPa(145Psi) | ||||||
| Proof pressure | 1.5MPa(215Psi) | ||||||
| Temperature range | -20~70℃ | ||||||
| Capacity of drain bowl | 15CC | 60CC | |||||
| Capacity of oil bowl | 25CC | 90CC | |||||
| Recommended lubricant | ISO VG 32 or equivalent | ||||||
| Weight | 500g | 700g | |||||
| Constitute | Filter-Regulator | AFR1500-A | AFR2000-A | BFR2000-A | BFR3000-A | BFR4000-A | |
| Lubricator | AL1500-A | AL2000-A | BL2000-A | BL3000-A | BL4000-A | ||
