4M is listed in the solenoid valves section of the Betre catalogue under the Airtac Type series. It is manufactured by YUEQING BETRE AUTOMATION CO., LTD. in Yueqing, Zhejiang, and supplied to automation machine builders and distributors in China and export markets.
The tables and drawings below are reproduced from the Betre product catalogue for this model.
| Fluid | Air |
| Applicable pressure range | 0.15~0.8MPa |
| Proof pressure | 1.2MPa |
| Ambient and fluid temperature | 5~60℃ |
| Allowable voltage range | -10% ~ +10% |
| Protection | IP65 |
| Insulated grade | Class B or Equivalent |
| Operating method | Inside guide style |
| Lubrication | Needless |
| Max.action frequency | 5Hz |

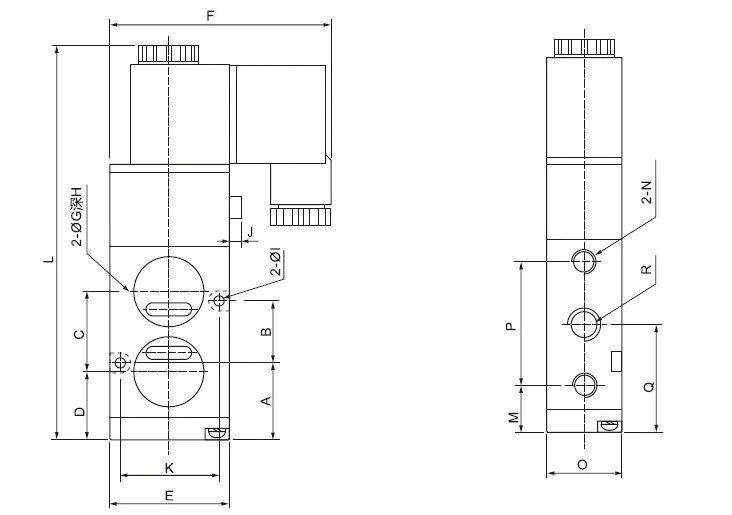

| Model | A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q | R |
| 4M210-06 | 21.7 | 20 | 23 | 20.2 | 35 | 67 | ø19.2 | 1.7 | ø4.3 | 3 | 29 | 117 | 13.7 | PT1/8 | 22 | 36 | 32 | PT1/4 |
| 4M210-08 | 21.7 | 20 | 23 | 20.2 | 35 | 67 | ø19.2 | 1.7 | ø4.3 | 3 | 29 | 117 | 13.7 | PT1/8 | 22 | 36 | 32 | PT1/4 |
| 4M310-08 | 28 | 24 | 21.5 | 29.3 | 40 | 69 | ø19.2 | 1.7 | ø5.2 | 2.4 | 32 | 135 | 17.5 | PT1/4 | 27 | 45 | 40 | PT3/8 |
| 4M310-10 | 28 | 24 | 21.5 | 29.3 | 40 | 69 | ø19.2 | 1.7 | ø5.2 | 2.4 | 32 | 135 | 17.5 | PT1/4 | 27 | 45 | 40 | PT3/8 |

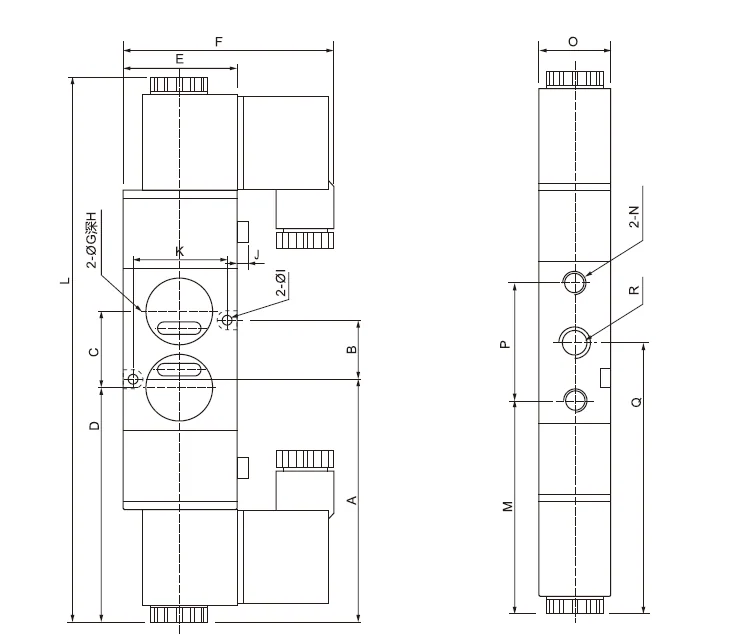

| Model | A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q | R |
| 4M210-06 | 74 | 20 | 23 | 75.4 | 35 | 67 | ø19.2 | 1.7 | ø4.3 | 3 | 29 | 171 | 67.4 | PT1/8 | 22 | 36 | 85 | PT1/4 |
| 4M210-08 | 74 | 20 | 23 | 75.4 | 35 | 67 | ø19.2 | 1.7 | ø4.3 | 3 | 29 | 171 | 67.4 | PT1/8 | 22 | 36 | 85 | PT1/4 |
| 4M310-08 | 83 | 24 | 21.5 | 84.2 | 40 | 69 | ø19.2 | 1.7 | ø5.2 | 2.4 | 32 | 190 | 72.4 | PT1/4 | 27 | 45 | 95 | PT3/8 |
| 4M310-10 | 83 | 24 | 21.5 | 84.2 | 40 | 69 | ø19.2 | 1.7 | ø5.2 | 2.4 | 32 | 190 | 72.4 | PT1/4 | 27 | 45 | 95 | PT3/8 |
