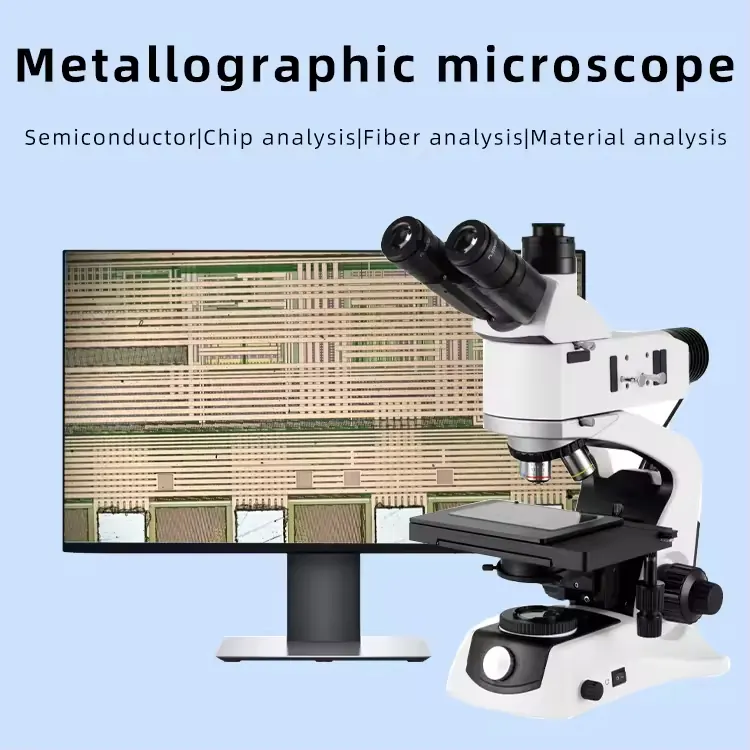

XGM100 Upright Metallurgical Microscope

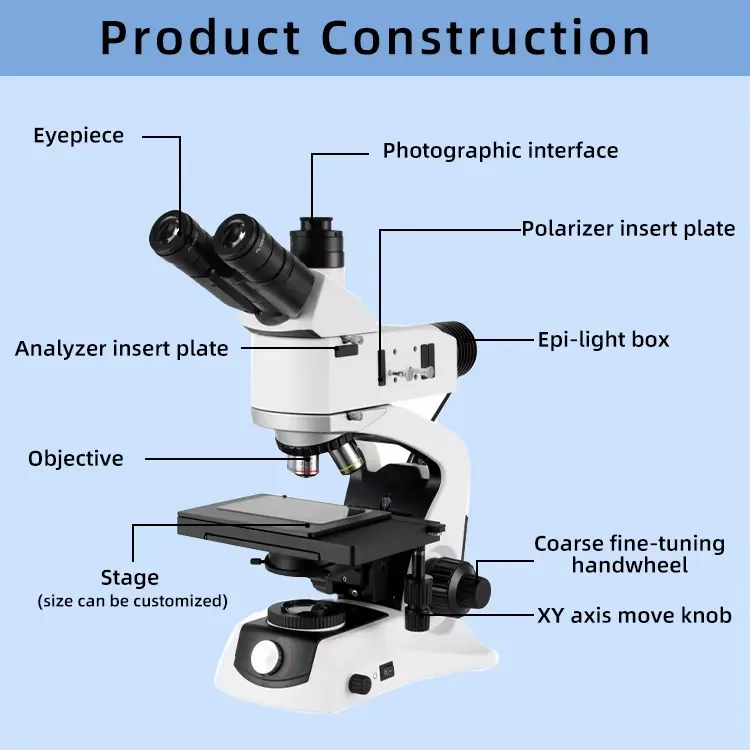

Viewing head Trinocular viewing head, 30° tilt, adjustable interpupillary distance 48mm-75mm Eyepiece PL10X22mm Photographic eyepiec e 0.4XPhotographic eyepiec e Nosepiece Four-hole Nosepiece Objective Infinity plan achromatic objective lens 5X, 10X, 20X, 50X Condenser Abbe N.A 1.25 condenser with variable aperture Stage Double-layer mobile mechanical metal platform: 210MMX140MM (Glass workbench size: 128MMX86MM) Moving range: 75MMX50MM Focusing Coaxial coaxial focusing system, fine adjustment value 0.002mm Illumination Transmitted/reflected Kohler illumination: LED 5W, adjustable brightness Power adapter Input AC100-240V-50/60Hz Output DC12V2A Optional 1.
Application notes from the listing
Eyepiece: WF20X 2. Objective lens: 100X 3. Photographic eyepiece: 0.3X, 0.75X 4. Converter: five holes. Upgradable magnification display 5. Polarizing device: polarizer, analyzer 6. Plug-in color filter: yellow, blue, white 7.
Measuring accessories: 0.01mm objective micrometer 8. Working distance heightening block (10MM-65MM) needs to be customized
What should I send with a quote request?
The model name (XGM100 Upright Metallurgical Microscope), binocular or trinocular preference, whether a camera is required, destination country, and any thread already on the stand.
Are extra specifications available?
Only values printed on the original AMADA listing are shown here. Missing numbers are TBC.
How do I order accessories for this model?
Open the matching accessory family and quote both product names in one email.
