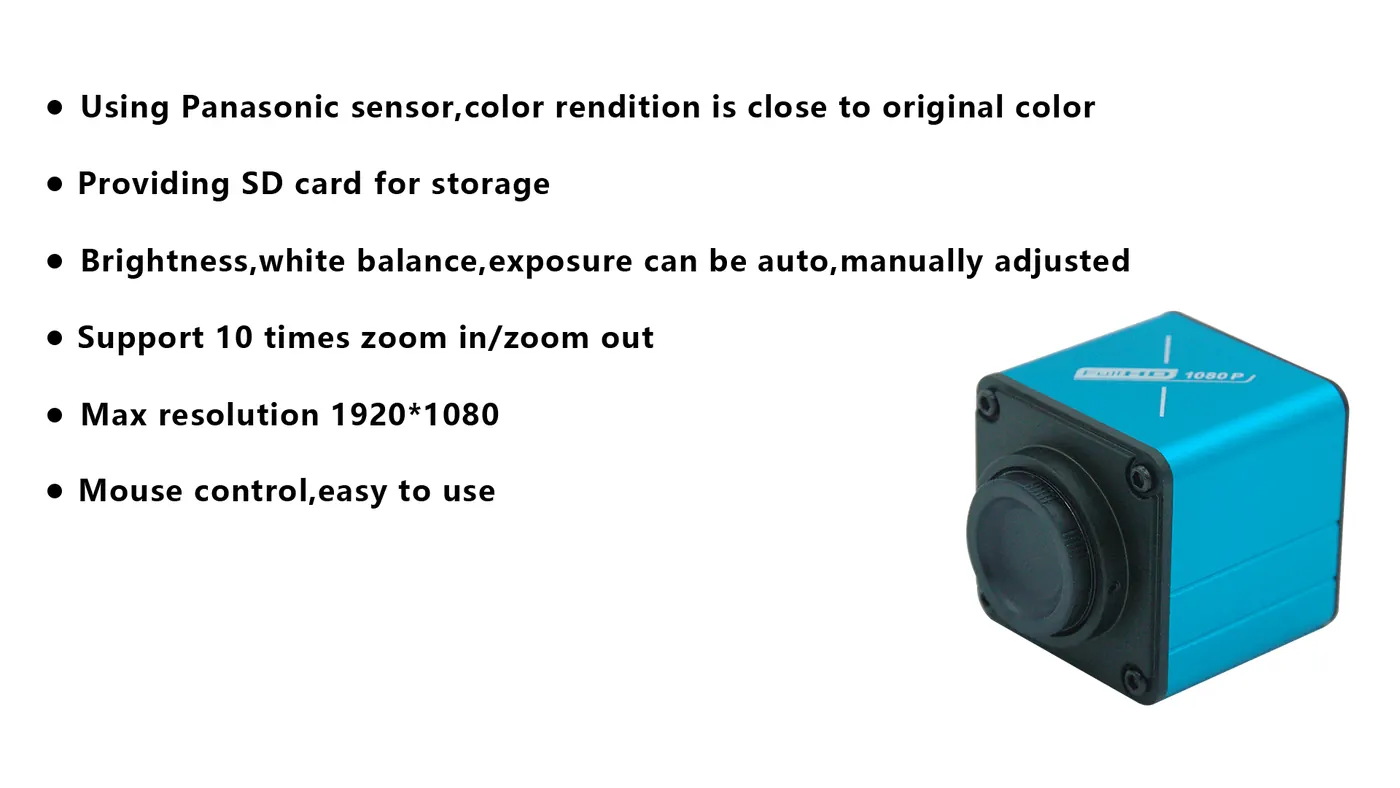

VAG USB2.0 Industrial Microscope Camera Panasonic AM3600
Specification Model AM3600 Series VGA Industrial Camera Sensor size 1/3″ Effective pixel Full HD Resolution 1920*1080@30FPS Output VGA,USB2.0 Pixel size 2.75*2.75 μm Power DC-12V/1A Features Basic function Brightness, Contrast,Saturation, White balance, Black-and-white switch, HDR wide dynamic UI interface Mouse control Image adjustment Exposure, Flicker restrain, Acutance, Gamma, Cb/ Cr gain adjustment Camera function digital amplification, mirroring, contrast, noise reduction, screen freeze Cross – line can define color, line, hide and display Crosshair Can adjust color, line size, hide or display Reticle 4 sets of reticle,can adjust color, size, shift and hide Grid line 8 sets of grid lines,each set can be corresponding to one product Package Size 58.00*50.00*50.00mm Weight 0.15kg Accessory Mouse,DC12V/1A power adapter
Application notes from the listing
What should I send with a quote request?
The model name (VAG USB2.0 Industrial Microscope Camera Panasonic AM3600), binocular or trinocular preference, whether a camera is required, destination country, and any thread already on the stand.
Are extra specifications available?
Only values printed on the original AMADA listing are shown here. Missing numbers are TBC.
How do I order accessories for this model?
Open the matching accessory family and quote both product names in one email.
