MC200 Digital Video Measuring Microscope

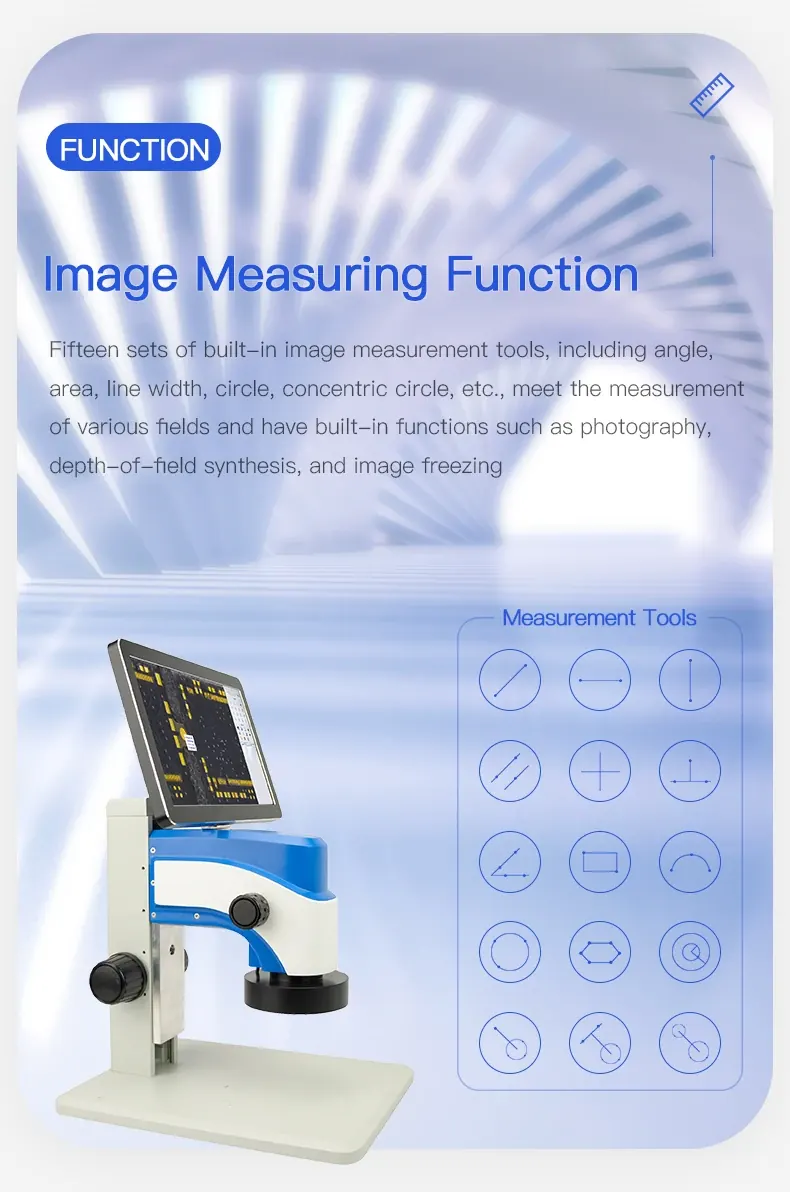

Chip structure FPGA+ARM Operating system LINUX 3.10 Core structure Dual-core Cortex-A9 Frequency speed 1Ghz Sensor 1/2” Resolution 1920*1080P F rame rate 60fps Screen 11.6 inch Light LED Measurement function Between two points, point to line, three-point circle, circle center distance, concentric circles, point to circle, line to circle, parallel lines, rectangle, angle, radian, polygon Data saving Save with measurement result images or excel data M easurement method Mouse operation, intelligent point selection/manual point selection I nterface 2 USB interfaces, can connect U disk and wireless mouse Zoom 0.7-4.5X 6.4:1 Magnification 12X-80X Operating Voltage 12v Operating temperature -10 -70 degrees Dimension Product:200*220*320mm Packing：450*415*370 mm Weight Net: 4.1KG Gross: 5.2Kg Viewable range 1mm-25mm Working Distance 60mm-180mm
Application notes from the listing
What should I send with a quote request?
The model name (MC200 Digital Video Measuring Microscope), binocular or trinocular preference, whether a camera is required, destination country, and any thread already on the stand.
Are extra specifications available?
Only values printed on the original AMADA listing are shown here. Missing numbers are TBC.
How do I order accessories for this model?
Open the matching accessory family and quote both product names in one email.
