MAX TE-Cooling M52/C-mount USB3.0 CMOS Microscope Camera
The basic characteristic of MAX can be summarized as follows: Standard C-Mount camerawith SONY Exmor or GSENSE CMOS sensors from2M to 61M; Big pixels or full-frame CMOS sensor Two-stage TE-cooling with controllable electric fan; Sensor chip cooling up to-40°C below ambient temperature; Working temperature can be regulated to specified temperature in 5 minutes; Smart structure to assure the heat radiation efficiency and avoid the moisture problem; IR-CUT/ARcoated windows(Optional); M52 x0.75 or C-mount 0 5Gbit/second interface ensuring high speed data transmission; Up to 1000 seconds long time exposure; Embedded up to 16bit hardware ISP module; Including 2-D denoising and sharpening Ultra-Fine TM color engine with perfect color reproduction capability; Support the capture of video and image in software / hardware trigger mode With advanced video & image processing application ToupView; Support both video and trigger modes; ProvidingWindows/Linux/Mac OS multiple platforms SDK; Native C/C++, C#/VB.NET, DirectShow, Twain control API; MAX Datasheet(6) Order C ode Sensor & Size (mm) Pixel( μm) G Sensitivity Dark Signal FPS /Resolution Binning Exposure MAX62AM MM1062A 61M/IMX455(M) 2.7″(35.98×23.99)Full Frame 3.76×3.76 871mv with 1/30s 0.039mv with 1/30s88.3dB/47.1dB 6.1@9568×6380(16bit) 19.1@4784×3190 55.6@3184×2124 191@1040×706 1×1 2×2 3×3 9×9 0.1ms~1000s MAX62AC MP1062AC 61M/IMX455(C) 2.7″(35.98×23.99)Full Frame 3.76×3.76 484.5mv with 1/30s 0.039mv with 1/30s85.8dB/47.0dB 6.1@9568×6380(16bit) 19.1@4784×3190 55.6@3184×2124 191@1040×706 1×1 2×2 3×3 9×9 0.1ms~1000s MAX24AC MP1024A 24M/IMX410(C) 2.7″(36.02×24.00)Full Frame 5.94×5.94 573mv with 1/30s 0.037mv with 1/30s87.3dB/50.2dB 15.3@6064×4040(14bit) 41@3024×2012 114@2016×1342 1×1 2×2 3×3 0.1ms~1000s MAX04AM MM1004A 4.2M/GSENSE2020e(M) 1.2”(13.31×13.31) 6.5x 6.5 8.1×107 (e-/((W/m2).s)) Peak QE 64.2% @595nm13(e-/s/pix)66.6dB/46dB 44.5@2048×2048 44.5@1024 x 1022 1×1 2×2 0.1ms~1000s MAX04BM MM1004B 4.2M/GSENSE2020BSI(M, UV) 1.2”(13.31×13.31) 6.5 x 6.5 1.1×108 (e-/((W/m2).s)) Peak QE 93.7% @550nm80(e-/s/pix)65.8dB/47dB 43.5@2048 x2048 43.5@1024 x1024 1×1 2×2 0.1ms~1000s MAX04CM MM1004C 4.2M/GSENSE400BSI(M, UV) 2.0“(22.53×22.53) 11 x 11 3.25×108 (e-/((W/m2).s)) Peak QE 95.3% @560nm345(e-/s/pix)68.5dB/50dB 37@2048 x2048 37@1024 x1024 1×1 2×2 0.1ms~1000s C:Color; M:Monochrome; UV: Ultra-violet sensitive Other Specification for MAX Cameras Spectral Range 200-1000nm(The spectral response range of each model is different.
Application notes from the listing
Please refer to the product manual of each model for detailed parameters) Protect Windows IR CUT (AR protection glass is optional) White Balance ROI White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor Color Technique Ultra-Fine TM Color Engine/NA for Monochromatic Sensor Capture/Control SDK Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc) Recording System Still Picture and Movie(Free running mode or trigger mode) Cooling System* Two-stage TE-cooling System -40 °C below Camera Body Temperature IO Interface One optocoupler isolation input, one optocoupler isolation output, two direct connection GPIO Operating Environment Operating Temperature(in Centidegree) -10~ 50 Storage Temperature(in Centidegree) -20~ 60 Operating Humidity 30~80%RH Storage Humidity 10~60%RH Power Supply DC 5V over PC USB Port External Power Adapter for Cooling System, DC19V, 4A Software Environment Operating System Microsoft ® Windows ® XP / Vista / 7 / 8 /10 (32 & 64 bit) OSx(Mac OS X) Linux PC Requirements CPU: Equal to Intel Core2 2.8GHz or Higher Memory:2GB or More USB Port:USB3.0 High-speed Port Display:17” or Larger CD-ROM MAX Series Dimension Camera And Connection The MAX body, made from tough, alloy with CNC technique, ensures a heavy duty, workhorse solution.
The camera is designed with a high quality IR-CUT or AR to block the IR light or protect the camera sensor. The fan‘s vibration is minimized to the low level to eliminate the vibration caused imaging blur. This design ensures a rugged, robust solution with an increased lifespan when compared to the other industrial camera solutions.

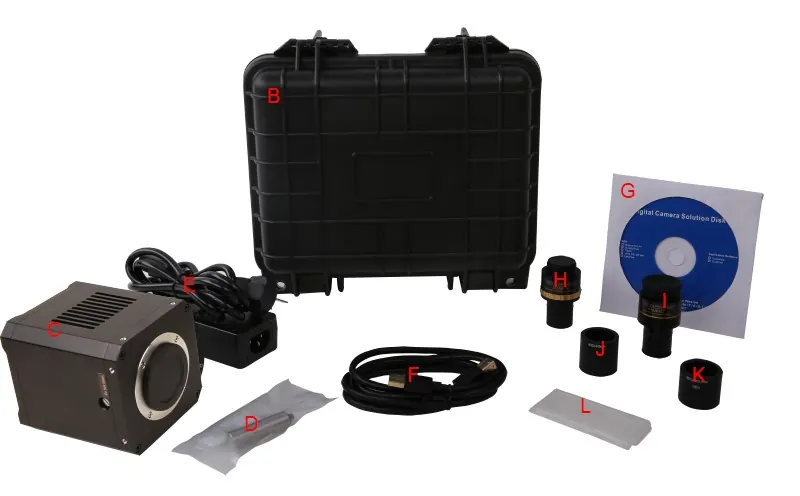

Dimension of MAX (Square) Series Camera Item Specification 1 M52F ´ 0.75 thread 2 Protective window, 39 ´ 27 ´ 1.1mm, AR window for mono camera, IR-cut for color camera 3 Thermo outlet 4 Air inlet 5 Trigger(7 pin) 6 USB 3.0/ USB 2.0 port 7 DC 19V 4.74A power port, 5.5 ´ 2.1mm 8 Power LED indicators 9 System LED TEC LED 10 TEC LED indicators 11 Fan LED indicators Packing Information for MAX Camera Packing Information of MAX Series Camera(Square) Standard Package A Carton L:50cm W:30cm H:30cm (20pcs, 12~17Kg/ carton), not shown in the photo(TBD) B 3-A safety equipment case: L:28cm W:23cm H:15cm (1pcs, 2.8Kg/ box); Carton size:L:28.2cm W:25.2cm H:16.7cm(TBD) C MAX camera(C-mount) D Power adapter: input: AC 100~240V 50Hz/60Hz, output: DC19 V 4A E High-Speed USB3.0 A male to B male gold-plated connectors cable /1.5m F IO cable G CD (Driver & utilities software, Ø12cm)
