LCD Displays and Screens

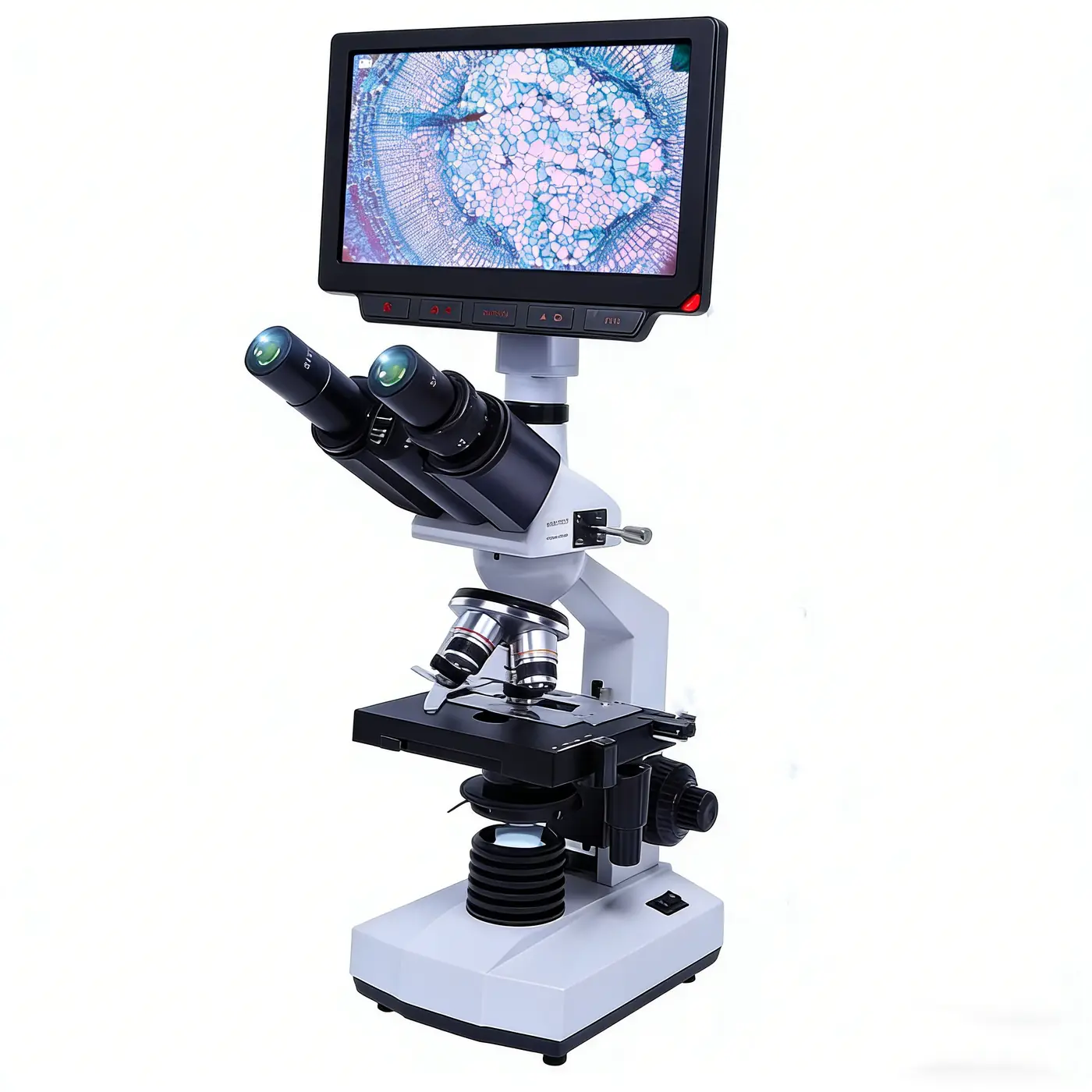

DT200 7” 9” 10.1” HD Smart Display Take Picture Record Video

Size 7 Inch 9 Inch 10.1 Inch Model DT200-7S DT200-7D DT200-9S DT200-9D DT200-10.1S DT200-10.1D LCD Screen 7″ IPS, 1024×600 9″ IPS, 1024×600 10.1″ IPS, 1024×600 Resolution 2MP (Interpolated to 8MP) 4MP (Interpolated to 8MP) 2MP (Interpolated to 8MP) 4MP (Interpolated to 8MP) 2MP (Interpolated to 8MP) 4MP (Interpolated to 8MP) Sensor Size 1/2.8″ 1/3″ 1/2.8″ 1/3″ 1/2.8″ 1/3″ Pixel Size 2.9µm × 2.9µm 2µm × 2µm 2.9µm × 2.9µm 2µm × 2µm 2.9µm × 2.9µm 2µm × 2µm Basic Functions Photo Capture, Video Recording, USB Connection to PC, Color Adjustment, Digital Zoom In/Out WIFI No 2.4G WIFI No 2.4G WIFI No 2.4G WIFI HDMI No 1080P HDMI (Dual-Screen Display) No 1080P HDMI (Dual-Screen Display) No 1080P HDMI (Dual-Screen Display) Mouse Measurement No Mouse Line Measurement No Mouse Line Measurement No Mouse Line Measurement TYPE-C TYPE-C Power Supply / USB-UVC USB No 1 × USB Port No 1 × USB Port No 1 × USB Port Battery 18650 Li-ion Battery, 3.7V / 2000mAh TF Card Included 8GB High-Speed TF Card, Supports up to 64GB Mount Interface Optional Mount: E Mount (23.2mm) / C Mount (1″-32UN Thread) Power Supply DC 5V / 2A Adapter, Optional Plug Types: US / EU / UK / AU Standard 01

Application notes from the listing

What should I send with a quote request?

The model name (DT200 7” 9” 10.1” HD Smart Display Take Picture Record Video), binocular or trinocular preference, whether a camera is required, destination country, and any thread already on the stand.

Are extra specifications available?

Only values printed on the original AMADA listing are shown here. Missing numbers are TBC.

How do I order accessories for this model?

Open the matching accessory family and quote both product names in one email.
