ATS100 ATS300 Zoom Stereo Microscope
ATS series includes ATS100 & ATS300 ATS100 includes ATS112, ATS113, ATS124 ◆ Unique optical design, extra long working distance, large depth of fields ◆ High eye-position and extra wide-field eyepieces. ◆ Horizontal axial drive control knobs, easy to operation ◆ Extensively used in mineral specimen researching,precision components assembling, industry productline and weeny objects inspection ◎ ATS300 includes ATS312, ATS313, ATS324 ◆ Change magnification by the turret body, orientation precision, excellent parfocal performance ◆ High eye point and extra wide-field eyepieces ◆ Especially be long time used in industry product line Zoom driver A TS100 Series change magnification by knobs A TS300 Series change magnification by the turret Eyepiece SWH10X high eye point & extra wide-field eyepiece ,FOV Φ23mm Eyetubes Inclined 45° WD 105mm Focus range 50mm（track stand: 100mm） Interpupillary distance adjustment range (10X eyepiece) 52mm~76mm Diopter adjustment range ±6 Diopter The holder and the head matching dimension Φ76mm Distance between the center of the pole and the center of the holder 140mm Diameter of the pole Φ25mm Diameter of the center working stage Φ95mm Illuminators Optional illumination:5W fluorescent lamp at the bottom; halogen lamp(6V、10W) on the top.
Application notes from the listing

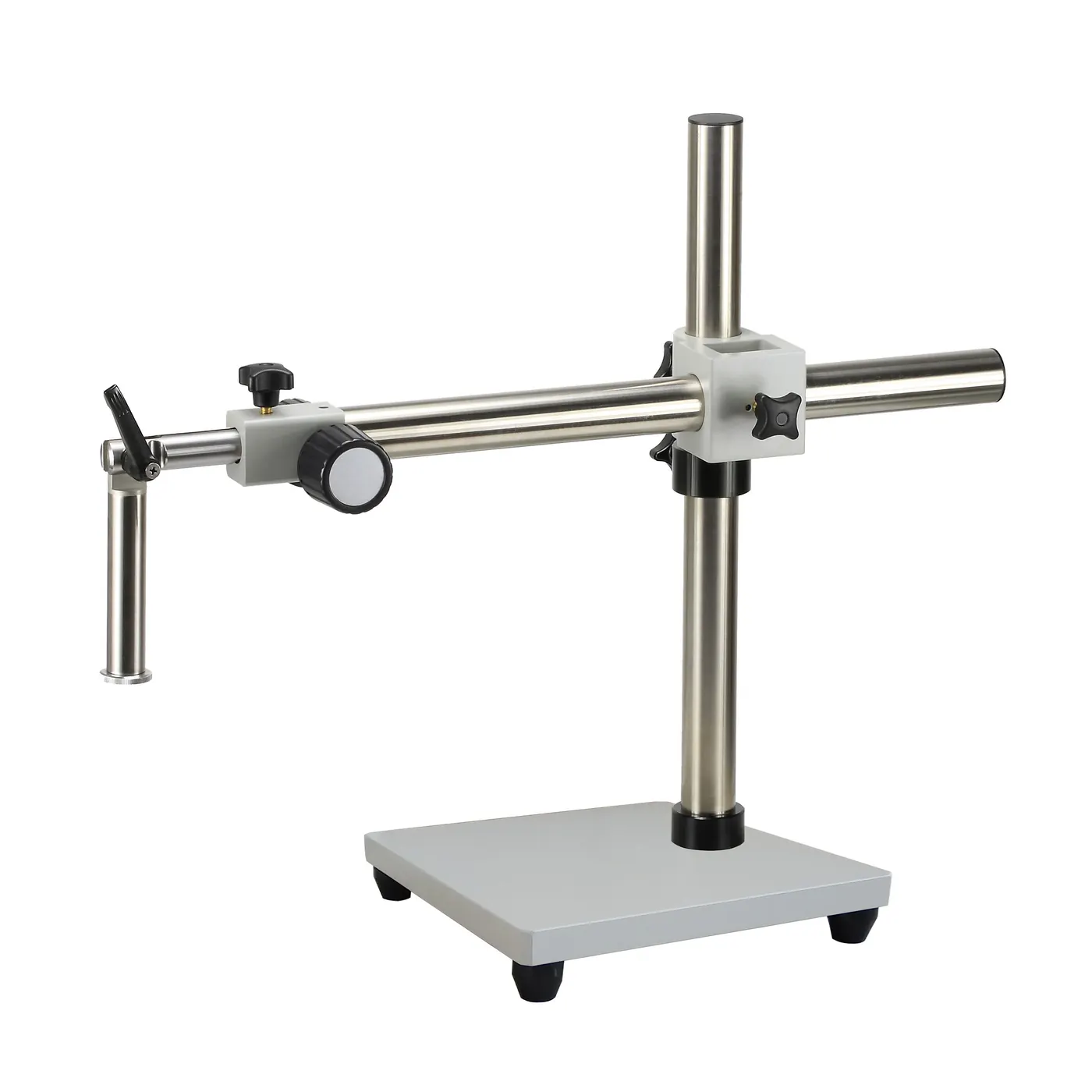

Model Objective Specification of different eyepiece SWH10X SWF15X SWF20X SWF30X Total Mag. FOV(mm) Total Mag. FOV(mm) Total Mag. FOV(mm) Total Mag. FOV(mm) MTS112 MTS312 1X 10X Φ23 15X Φ17 20X Φ14 30X Φ9 2X 20X Φ11.5 30X Φ8.5 40X Φ7 60X Φ4.5 MTS113 MTS313 1X 10X Φ23 15X Φ17 20X Φ14 30X Φ9 3X 30X Φ7.67 45X Φ5.67 60X Φ4.67 90X Φ3 MTS124 MTS324 2X 20X Φ11.5 30X Φ8.5 40X Φ7 60X Φ4.5 4X 40X Φ5.75 60X Φ4.25 80X Φ3.5 120X Φ2.25 Optional Accessories ： Stands SD1~SD18 Universal stands U1, U2, U3, U4, U1c, U2c, U3c Eyepieces WFH10X, SWF15X, SWF20X, SWF30X Divisional eyepieces WFH10X-CM0.1XY SWF15X-CM0.05XY SWF20X-CM0.05XY Plane achromatic objectives PS-W0.5, PS-W0.7, PS-W1.0, PS-WP1.0, PS-W1.5 CCD adapters C0.3-S、C0.5-S、C1.0-S Digital camera adapter DT01 Digital camera adapter PT02 1X CCD adapter with micrometer CDM1.0 Note: It should be used with CCD adapter together.
Auxiliary illuminators ML01, ML02, MLR60, LGY-150Ω Mechanical stage S7665, S10086 Note: Please explain in advance while the mechanical stage needs to be installed on the stand, the stand needs specially be increased the screw holes.

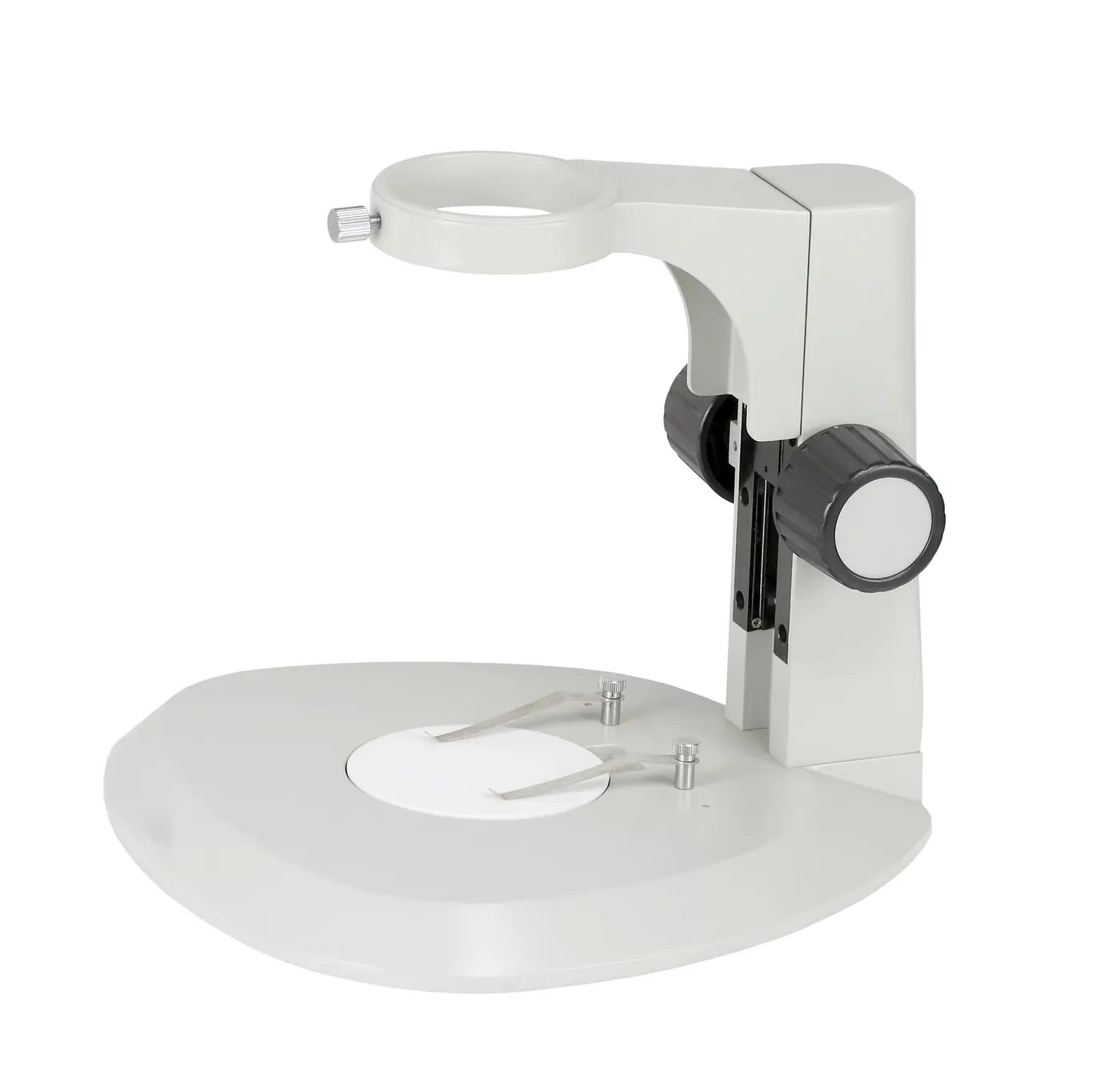

Notes: The track stand for A ZPS0850 is different from the standard, and identified as”p”, for example, if SD4 used for parallel stereo microscopes, it will be indicated as SD4P.
What should I send with a quote request?
The model name (ATS100 ATS300 Zoom Stereo Microscope), binocular or trinocular preference, whether a camera is required, destination country, and any thread already on the stand.
Are extra specifications available?
Only values printed on the original AMADA listing are shown here. Missing numbers are TBC.
How do I order accessories for this model?
Open the matching accessory family and quote both product names in one email.
