AFDM411 Zoom and Autofocus Digital Microscope

Application notes from the listing

AFDM is the abbreviation of Auto-focus Digital Microscope. Different products in the AFDM series can be formed with different part to satisfy the applicatuon requirement. AFDM can be assembled with various brackets or arms and offer a continuous zooming ratio with different lens.

AFDM also supports autofocus mode and manual focus mode. AFDM comes with a high-performance SONY CMOS sensor. It also has an embedded ARM core, allowing the camera to be connected directly to the HDMI monitor. The camera has XFCAMView software built within it, including Camera Control Panel, Auto Focus Control Panel, Measurement Toolbar, and Synthesis Camera Control Toolbar.

Users can directly control the camera and perform various operations through a USB mouse. The images and videos captured by AFDM can be saved on an SD card for on-site analysis and follow-up research. AFDM can be widely used in industrial inspection, medical observation, teaching and scientific research, automation system, and other fields.

AFDM101 supports 1080P60FPS HDMI output. AFDM411 supports 4K30FPS HDMI output and USB/ ETH/WIFI outputs. The Module Specifications Of AFDM Series Product AFDM Camera Module Datasheet Order C ode Sensor & Size(mm) Pixel(μm) G Sensitivity/ Dark Signal FPS /Resolution Binning Exposure (ms) H1080PA Sony IMX462LQR-C 1/2.8″(5.57×3.13) 2.9×2.9 921mv/0.15mv with 1/30s 60/1920*1080(HDMI) 1×1 0.06~918 H4KPA Sony IMX415LQR-C 1/2.8″(5.57×3.13) 1.45×1.45 300mv/0.13 with 1/30s 30@3840*2160(HDMI) 30@3840*2160(NETWORK) 30@3840*2160(USB) 1×1 0.04~1000 C: Color; M: Monochrome; AFDM Lens Module Data sheet Order Code Working Distance (mm) Z oom Range M TF ( lp/mm) Distortion Distortion F OV@20X(mm) EMZO-20XA 150~195 0.028X~0.56X 160 0.5% 200×112.5 10×5.6 1X and 20x are defined as the normalized magnification, which is only used to represent the relative relationship between the lowest and highest magnification.

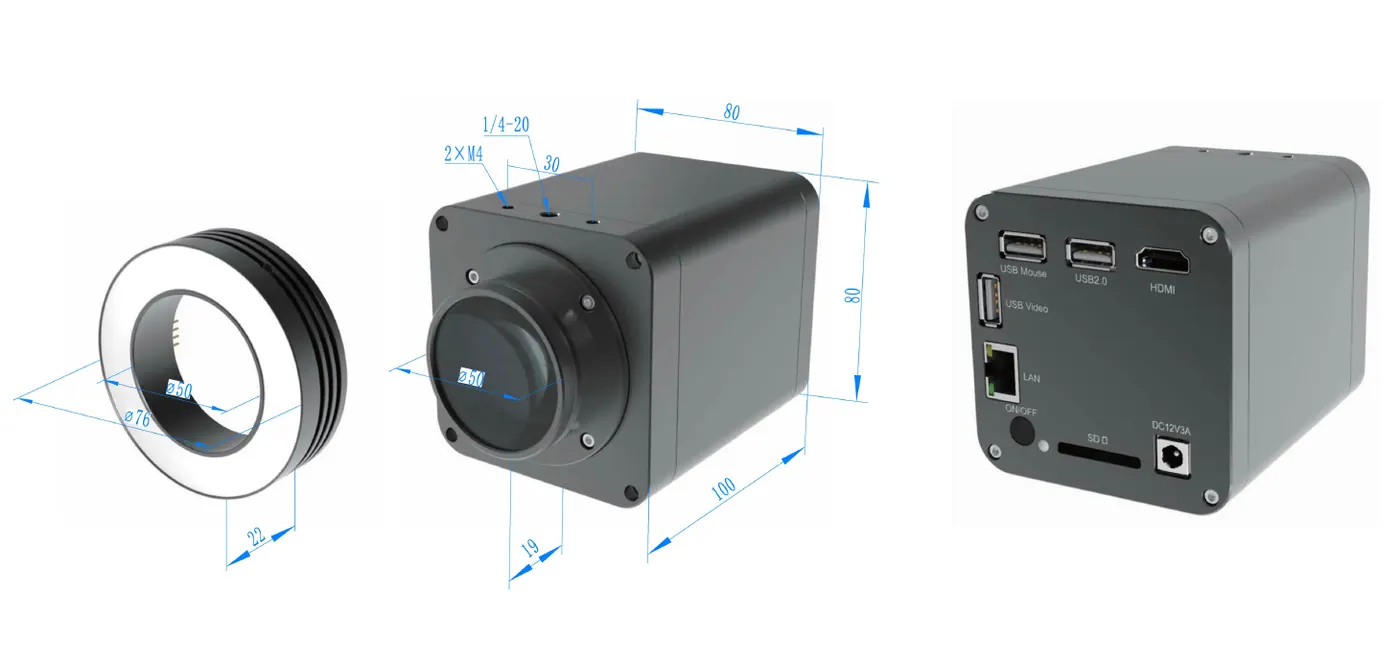

Here, the normalized equations are 1x = 0.028/0.028; 20X=0.56/0.028; A FDM Light Module Order Code LED P ower Inner Dia.(mm) Out Dia.(mm) DRL-5076A-NPC 8 CREE xpes 3V/3A 50 76 DRL: LED direct ring light with adjustable brightness; NPC: No power cable AFDM411 Characteristic And Specification The AFDM411 comes with H4KPA HDMI camera, EMZO-20XA lens and DRL-5076A-NPC light source(Optional); The Basic Characteristic of AFDM411 5 groups 16 elements EMZO with 0.028~0.56X, 20 zoom ratio, supports auto and manual focus 192mmstandard working distance with 150~195mm depth of field At standard working distance, the large field of view 200mm*112.5mm at low magnification, helping users to quickly locate the target object, the small field of view 10mm*5.6mm at higher magnification, helping users to observe microscopically Sony 1/2.8” 4K Starvis CMOS with high signal-to-noise ratio 4K HDMI/USB/ETH/WiFi multiple video outputs 4K/1080P auto switching according to monitor resolution SD card/USB flash drivefor captured image and video storage, support local preview and playback Built-in mouse control software XFCAMView,all functions can be realized with USB mouse Embedded mouse Camera Control Panel, Measurement Toolbar, Synthesis Control Toolbar, AF Control Panel Multi-language support Head suction LED ring light, the brightness can be directly controlled by XFCAMView With the adapter bracket of 76mm diameter, a electric controlled continuous zoom AFDM can be built TPS 30A 1+AFDM101+SCR 2 Figure 1 3 TPS-30A(bracket)+AFDM411+1080P Monitor Specification of AFDM411 Interface & Button Functions USB Mouse USB mouse for XFCAMView control USB2.0 Connect USB flash drive to save pictures and videos Connect 5G WLAN module to transfer video wirelessly in real time with ToupView/ToupLite HDMI Comply with HDMI1.4 standard.
