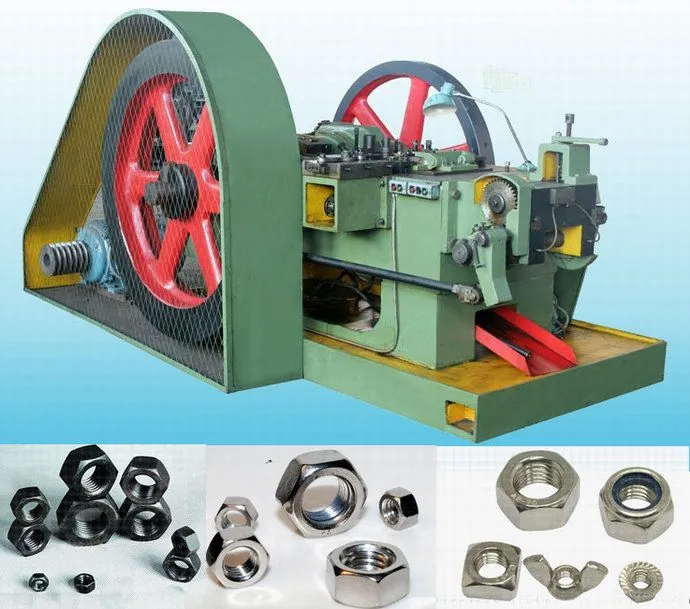

Z41 Series Nuts Automatic Cold Header manufactured by Ningbo Anchors Precision Machinery Co., Ltd.

Nut Forming Machine

Z41 Series Nuts Automatic Cold Header

Cold nut formers pierce, upset and shape nut blanks through five to seven stations, feeding straight into a tapping machine downstream. The published parameter table for this machine covers models Stations, Capacity, Production Speed, Motor power, Dimension, Weight.

  • Built by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, China
  • Full manufacturer parameter table on this page
  • Machine video available on request
  • Rapid response technical team for operation and troubleshooting
Request a Quote Talk to an Engineer Email Us

Have a drawing? Send it straight to WhatsApp or email — there is no form to fill in.

Salient Features

Adopts coil or bar materials, heading into the hex nut blanks then tapping into hex nuts finished products.The series are horizontal,stations horizontally arranged. Feeding, cutting, pushing, forceps materials, cold forging the whole process automatically. With positioning accuracy and reliability, operation, adjustment, maintenance, assembly and disassembly convenient features.

Main Technical Parameters

Model Stations Capacity Cold heading stroke Production Speed Motor power Dimension Weight
Z41-4 4 M3-M4 80mm 160pec/min 3.0kw 1200×730×1035mm 1200kg
Z41-6 4 M4-M6 85mm 120pec/min 5.5kw 2395×1430×1230mm 3600kg
Z41-8 4 M6-M8 108mm 100pec/min 7.5kw 2560×15000×1350mm 4500kg
Z41-10 4 M8-M10 108mm 90pec/min 11kw 3200×1800×1500mm 5500kg
Z41-12 4 M10-M12 120mm 85pec/min 15kw 4200×2600×1600mm 9200kg
Z41-16 4 M14-M16 150mm 70pec/min 22kw 5020×2800×1800mm 15000kg
Z41-20 4 M16-M20 165mm 65pec/min 40kw 6000×2800×1800mm 20000kg
Z41-24 5 M18-M24 200mm 55pec/min 45kw 6500×3000×2000mm 28000kg

Related Products

Other Models in Nut Forming Machine

Same family, different size range and station count.

24B-5S Five Stations High Speed Cold Nut Former manufactured by Anchors Machinery

24B-5S Five Stations High Speed Cold Nut Former

Nut Forming Machine

24B-6S Six Stations Cold Nut Forming Machine manufactured by Anchors Machinery

24B-6S Six Stations Cold Nut Forming Machine

Nut Forming Machine

30B-6S Six Stations Cold Nut Forming Machine manufactured by Anchors Machinery

30B-6S Six Stations Cold Nut Forming Machine

Nut Forming Machine

33B-6S Six Stations Cold Nut Forming Machine manufactured by Anchors Machinery

33B-6S Six Stations Cold Nut Forming Machine

Nut Forming Machine

19B-5S Five Stations High Speed Cold Nut Former manufactured by Anchors Machinery

19B-5S Five Stations High Speed Cold Nut Former

Nut Forming Machine

17B-5S Five Stations High Speed Cold Nut Former manufactured by Anchors Machinery

17B-5S Five Stations High Speed Cold Nut Former

Nut Forming Machine

33B-5S Five Stations High Speed Cold Nut Former manufactured by Anchors Machinery

33B-5S Five Stations High Speed Cold Nut Former

Nut Forming Machine

58B-5S Five Stations High Speed Cold Nut Former manufactured by Anchors Machinery

58B-5S Five Stations High Speed Cold Nut Former

Nut Forming Machine

All Nut Forming Machine All Fastener Making Machinery How It Is Built

Questions and Answers

Z41 Series Nuts Automatic Cold Header FAQ

What is the Z41 Series Nuts Automatic Cold Header used for?
It belongs to the nut forming machine family. Cold nut formers pierce, upset and shape nut blanks through five to seven stations, feeding straight into a tapping machine downstream. The structural description and the manufacturer parameter table on this page describe what this particular model covers.
Can I get the technical specification for my size range?
The parameter table on this page is the manufacturer table for the model range. Tell us the exact fastener diameter and length you run and we will confirm which line of the table applies.
Is this machine built by Anchors Machinery?
All equipment is built at the company works in Ningbo, Zhejiang, China, in an 18,000 square metre workshop with its own machining facilities.
Can it be supplied together with the upstream and downstream machines?
Yes. Anchors Machinery is a machine manufacturer as well as a solution provider and project contractor, so complete fastener and stamping production lines can be supplied rather than single machines only.
What support do I get after delivery?
A rapid response technical team instructs machine operation and helps solve problems that come up during production, so that machine efficiency and your output are protected after installation.
How do I request a price for this machine?
Send the part drawing or a photo plus the required size range and output per minute to [email protected] or by WhatsApp on +86 185 5689 5898. Quotations are prepared against the model and tooling configuration that suits your part.
