Fastener Assembly Machine

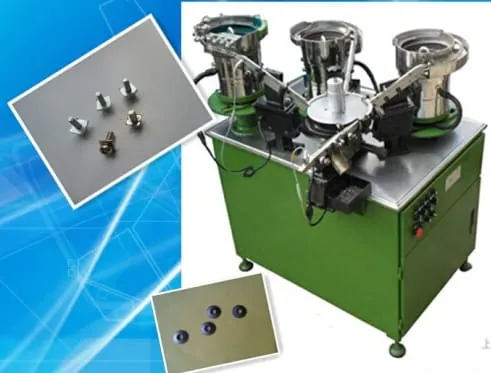

Screw Washer Automatic Assembly Machine for Thread Rolling Machine
Fastener assembly machines bring bolt, sleeve, washer and nut together automatically, so SEMS screws, stud assemblies and anchor sets leave the line already made up.
- Built by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, China
- Full manufacturer parameter table on this page
- Running video recorded on the machine
- Rapid response technical team for operation and troubleshooting
Have a drawing? Send it straight to WhatsApp or email — there is no form to fill in.
Running Video of Screw Washer Automatic Assembly Machine for Thread Rolling Machine
Main Specifications:
| Screw Type | #8 ~ #14 | |
| Screw Length | 1/2″ (12mm) ~ 5″ (125mm) | |
| Washer Size | PVC10, PVC11 | EPDM,PVC10, PVC11, D12, D14, D16, D19, (Optional:D22, D25) |
| Voltage | 220V / 380V OR CUSTOMIZED | |
| Control | DC24V PLC Programable Controller & Inverter | |
| Motor | 3PH 1/4HP | |
| Screw Vibrator | 750 | |
| Washer Vibrator | 400 | 500 |
| Speed | 80~600 pcs/min | |
| Machine Weight | approx. 1080 KG | approx. 1140 KG |
| Add-on Equipment | Screw & Washer Supply Stand | |
Application Scope
Screw and washer automatic assembly machine for thread rolling machine is to assemble many kinds and sizes of screws and wahsers then threaded by thread rolling machine to fix the washer on the screws.
Salient Features of Screw and washer automatic assembly machine for thread rolling machine
1. The automatic running with plc control.
2. Wire drawing speed is fast and drawed flatten wire surface bright and top appearance.
3. Easy to operate and less power consumption.
Main Structure and Designs
Screw washer automatic assembly machine for thread rolling machine structure
Standard accessories of Screw and washer automatic assembly machine for thread rolling machine
1. One set of standard hand tools.
2. One set of control Panel
3. Inside Lamp
M6*75MM High Speed Thread Rolling Machine
See It Running
Machine Running Videos
Recorded on the machine by the manufacturer. The video only loads when you press play, so the page stays fast.
Running video 1 · Screw Washer Automatic Assembly Machine for Thread Rolling Machine
