Thread Rolling Machine

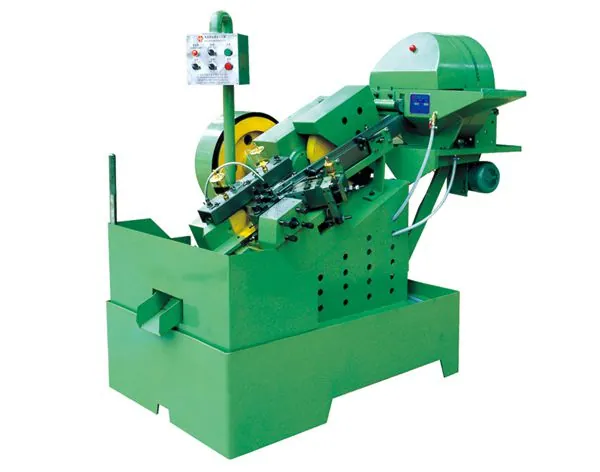

RS6-75 Thread Rolling Machine
Thread rolling machines form the thread by displacing material between dies instead of cutting it, which keeps the grain flow intact and produces a stronger thread at high output. The published parameter table for this machine covers models RS-1R, RS-001, RS-003, RS-004, RS6-75, RS8-120.
- Built by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, China
- Full manufacturer parameter table on this page
- Machine video available on request
- Rapid response technical team for operation and troubleshooting
Have a drawing? Send it straight to WhatsApp or email — there is no form to fill in.
WHAT IS COLD ROLLING?
Drill pipes undergo repeated,severe tensile stresses during a drilling operation. These cyclic stresses are particularly focused on the thread roots and can cause premature pipe failure. Cold Rolling is a method in which the threads roots of the material is compressed. The amount of force we introduce controls the hardness and other properties of the finished product; the endurance limit to bending forces is increased, thereby decreasing fatigue.
Salient Features
Thread Rolling Machines used for producing screws, bolts and tools. Thread rolling is a cold-forming operation only for external screws threads in a blank. The blank is pressed by thread rolling dies which are attached to the thread rolling machine.
Modern thread and profile rolling offers many advantages in the production of a wide range of solid and hollow components, compared to traditional metal cutting methods. Threads and profiles are stronger, consistently accurate and there is no swarf. When solid components are produced, the form is rolled from a blank with a smaller diameter than the finished piece; with hollow products the starting diameter can usually be maintained or allowed to increase as required.
Main Technical Parameters
| Model | RS-1R | RS-001 | RS-003 | RS-004 | RS6-75 | RS8-120 |
| Thread Dia | 2.6 mm | 0.8-1.7 mm | 1-3 mm | 1.7-4 mm | 2-6mm | 8mm |
| Max. Length | 25 mm | 20 mm | 20 mm | 25 mm | 75mm | 120mm |
| Production Speed (pcs/Min.) | 400-600 | 30-500 | 450-550 | 480-600 | 200 | 120-160 |
| Thread Rolling Die Dimension | 15x25x45-55 | 15x20x45-55 | 15x20x45-55 | 20x25x65-80 | 25.4x80x90-105 M8-25.4x80x108-127 | 108x25x120 127x25x120 |
| Main Motor | 1 HP 1/4HP | 1-1/2HP | 1-1/2HP | 3HP | 5HP | 7HP. 1/4. 1/8 |
| Overall Dimension | 120x66x132cm | 100x38x112cm | 100x38x112cm | 120x60x140cm | 182x140x155cm | 240x165x140cm |
| Watching Weight | 350kg | 380kg | 380kg | 590kg | 1500kg | 2200kg |
