Molds and Dies for Electric Busbar Production

Molds and Dies for Electric Busbar Production

The main function of busbar production molds and dies is to process different specifications of copper and aluminum busbars. Only the corresponding processing unit can be used to easily and quickly cut and punch copper and aluminum bars (round holes, oblong holes),  flat bending, stand Bending, embossing and other processing. By changing the mold, special processing such as flattening, twisting, pressing cable connectors can be finished and  cutting, flattening, punching, bending of copper rods also can be completed.

1.Copper bar round hole and kidney shape hole punching mold tool

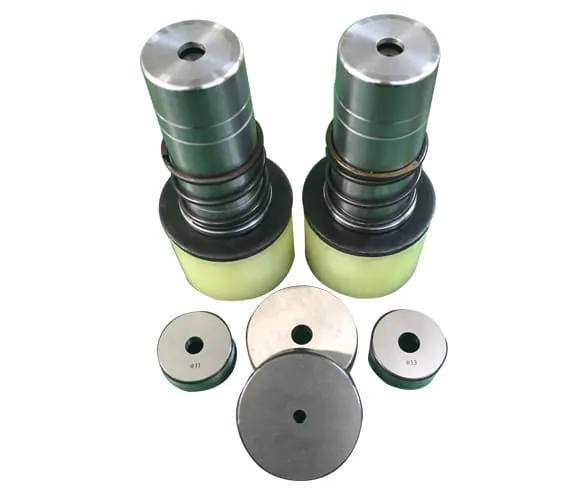

             Copper bar round hole punching mold                                          Copper bar round hole punches sample

                                                                       Busbar kidney shape hole punch sample

2.Copper bus bar chamfering mold tool

              Copper bus bar chamfering mold                                                          Chamfering made bus bar

3.Copper bar flat bending/Horizontal bending mold tool

Copper bar flat bending-Horizontal bending mold                                      Horizontal bent bus bar

4.Copper bar vertical bending mold tool

               Copper bar vertical bending mold                                                                Vertical bent bus bar

5.Copper bar U shape bending mold tool

                      Copper bar U shape bending mold                                               U shape bent bus bar

6.Brass busbar knurling and embossing mold

            Brass busbar knurling and embossing mold                                 Brass busbar after knurling and embossing

7.Brass busbar twist bending mold tool

                 Brass busbar twist bending mold tool                                                   Twisted bending bus bar
