Wire Straightening and Cutting Machine
Coil and Steel Bar Straightening & Cutting Machine
Straightening and cutting machines take coil or bar, remove the cast, and cut to a repeatable length ready for forming. The published parameter table for this machine covers models W58-6.3, W58, W58-16.
- Built by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, China
- Full manufacturer parameter table on this page
- Machine video available on request
- Rapid response technical team for operation and troubleshooting
Have a drawing? Send it straight to WhatsApp or email — there is no form to fill in.

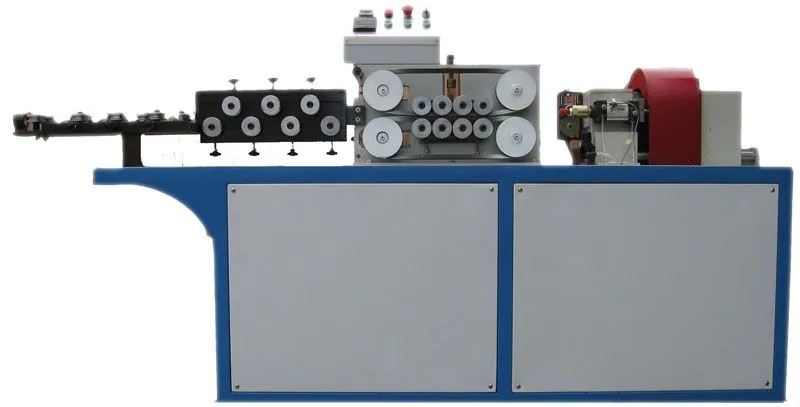

W58-16 Steel bar straightening & cutting machine
| Model | W58-6.3 | W58 | W58-16 |
| Straightening diameter | ø2-6mm | ø4-8mm | ø6-ø14mm |
| Cutting length of bar | 250-2000mm | 250-2000mm | 300-4500mm |
| Diameters to be cut | ø2-6mm | ø4-8mm | ø4-16mm |
| Rotating speed of straightening roller | 2980r.p.m. | 2800r.p.m. | 900r.p.m. |
| Straightening speed | 35m/min | 40m/min | 30-54m/min |
| Motor power | 1.5-7.5kw | 4-5.5kw | 4-11kw |
| Weight | 1230kg | 675kg | 2800kg |
| Overall dimensions | 3410×730 x1375mm |
6750×550 x1250mm |
8560×1200 x1560mm |
24B-4S Four Die Four Blow Bolt Former
Related Products
Other Models in Wire Straightening and Cutting Machine
Same family, different size range and station count.
Questions and Answers
Coil and Steel Bar Straightening & Cutting Machine FAQ
What is the Coil and Steel Bar Straightening & Cutting Machine used for?
It belongs to the wire straightening and cutting machine family. Straightening and cutting machines take coil or bar, remove the cast, and cut to a repeatable length ready for forming. The structural description and the manufacturer parameter table on this page describe what this particular model covers.
Can I get the technical specification for my size range?
The parameter table on this page is the manufacturer table for the model range. Tell us the exact fastener diameter and length you run and we will confirm which line of the table applies.
Is this machine built by Anchors Machinery?
All equipment is built at the company works in Ningbo, Zhejiang, China, in an 18,000 square metre workshop with its own machining facilities.
Can it be supplied together with the upstream and downstream machines?
Yes. Anchors Machinery is a machine manufacturer as well as a solution provider and project contractor, so complete fastener and stamping production lines can be supplied rather than single machines only.
What support do I get after delivery?
A rapid response technical team instructs machine operation and helps solve problems that come up during production, so that machine efficiency and your output are protected after installation.
How do I request a price for this machine?
Send the part drawing or a photo plus the required size range and output per minute to [email protected] or by WhatsApp on +86 185 5689 5898. Quotations are prepared against the model and tooling configuration that suits your part.
