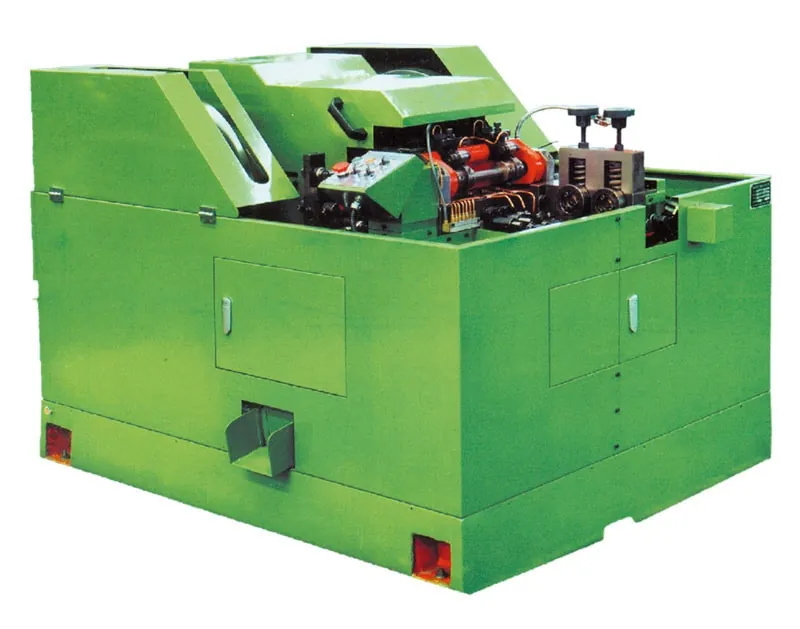

2 Die 4 Blow Cold Forming Machine manufactured by Ningbo Anchors Precision Machinery Co., Ltd.

Multi Station Bolt Forming Machine

2 Die 4 Blow Cold Forming Machine

Multi station bolt forming machines carry the blank through three, four, five or six forging stations in one stroke sequence, so heads, shanks and shoulders are cold formed without secondary operations. The published parameter table for this machine covers models Maximum diameter, Maximum length, Main slider stroke, Main die diameter, Main die length, Productivity, Motor, Packing size(m), Weight.

  • Built by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, China
  • Full manufacturer parameter table on this page
  • Machine video available on request
  • Rapid response technical team for operation and troubleshooting
Request a Quote Talk to an Engineer Email Us

Have a drawing? Send it straight to WhatsApp or email — there is no form to fill in.

2 Die 4 Blow Cold Forming Machine

Model Maximum diameter Maximum length Main slider stroke Main die diameter Die Cutting diameter Main die length Productivity Motor Packing size(m) Weight
DSH-15 5mm 50mm 100mm 46mm 19mm 95mm 60pcs/min(6grades) 4kw 2.28×1.42×1.4 2600kg
DSH-20 7mm 45mm 90mm 50mm 28mm 97mm 80pcs/min 7.5kw 2.67×1.7×1.7 5000kg
DSH-25 9mm 75mm 120mm 58mm 32mm 127mm 70pcs/min 15kw 2.92×1.9×1.9 8000kg
DSH-30 13mm 150mm 200mm 40mm 80mm 40mm 58pcs/min 22kw 4.28×2.84×1.97 14500kg

Related Products

Other Models in Multi Station Bolt Forming Machine

Same family, different size range and station count.

3-4 Stations Bolt Cold Forging Machine manufactured by Anchors Machinery

3-4 Stations Bolt Cold Forging Machine

Multi Station Bolt Forming Machine

Four Die Four Blow Bolt Former manufactured by Anchors Machinery

Four Die Four Blow Bolt Former

Multi Station Bolt Forming Machine

Three Die Three Blow Bolt Maker manufactured by Anchors Machinery

Three Die Three Blow Bolt Maker

Multi Station Bolt Forming Machine

13B-4S Four Die Four Blow Bolt Former manufactured by Anchors Machinery

13B-4S Four Die Four Blow Bolt Former

Multi Station Bolt Forming Machine

13B-5S Five Station Bolt Making Machine manufactured by Anchors Machinery

13B-5S Five Station Bolt Making Machine

Multi Station Bolt Forming Machine

36B-5SL Five Station Bolt Making Machine manufactured by Anchors Machinery

36B-5SL Five Station Bolt Making Machine

Multi Station Bolt Forming Machine

36B-6SL Six Station Bolt Forging Machine manufactured by Anchors Machinery

36B-6SL Six Station Bolt Forging Machine

Multi Station Bolt Forming Machine

19B-5S Five Station Bolt Making Machine manufactured by Anchors Machinery

19B-5S Five Station Bolt Making Machine

Multi Station Bolt Forming Machine

All Multi Station Bolt Forming Machine All Fastener Making Machinery How It Is Built

Questions and Answers

2 Die 4 Blow Cold Forming Machine FAQ

What is the 2 Die 4 Blow Cold Forming Machine used for?
It belongs to the multi station bolt forming machine family. Multi station bolt forming machines carry the blank through three, four, five or six forging stations in one stroke sequence, so heads, shanks and shoulders are cold formed without secondary operations. The structural description and the manufacturer parameter table on this page describe what this particular model covers.
Can I get the technical specification for my size range?
The parameter table on this page is the manufacturer table for the model range. Tell us the exact fastener diameter and length you run and we will confirm which line of the table applies.
Is this machine built by Anchors Machinery?
All equipment is built at the company works in Ningbo, Zhejiang, China, in an 18,000 square metre workshop with its own machining facilities.
Can it be supplied together with the upstream and downstream machines?
Yes. Anchors Machinery is a machine manufacturer as well as a solution provider and project contractor, so complete fastener and stamping production lines can be supplied rather than single machines only.
What support do I get after delivery?
A rapid response technical team instructs machine operation and helps solve problems that come up during production, so that machine efficiency and your output are protected after installation.
How do I request a price for this machine?
Send the part drawing or a photo plus the required size range and output per minute to [email protected] or by WhatsApp on +86 185 5689 5898. Quotations are prepared against the model and tooling configuration that suits your part.
