Clips Stamping Die
Clips And Sleeves Progressive Mold
wedge anchor clip sheet metal Progressive stamping die Progressive die stamping is a metal forming process widely used to produce parts for various…
- LineParameters
- 1As per standard wedge anchor clips design, customer design and specific requirements
- 2.pdf/.jpg / .dwg / .igs / .stp etc..
- 3carbon steel, alloy steel, stainless steel, high-speed steel and etc.
- 4Accordng to the drawings or Customized drawing
- 5If there is no any specially requirement, we often sugguest our customer to try the equivalent China National (GB) standard material that our engineering team proposes which to be properly converted from ANSI, ASTM, SAE, EN, DIN, BS, JIS, and etc., to contribute the material cost control. If it is necessary to use exact designated material no., it is also possible choice.
- 6sheet metal high speed Progressive stamping die,blanking die,trimming die,punching die,flanging die,bending die, drawing die and etc.
- 7-blanking-piercing-cutting off-trimming-stretching-deep drawing-flanging-bending-plunge-bulging-finishing
- Built by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, China
- More than twenty years experience in cold and hot forging and metal stamping equipment
- Rapid response technical team for operation guidance and production support
Watch Machine Video
Running video of Wedge anchor bolt clip high speed progressive stamping die
12MM wedge anchor clip sheet metal Progressive stamping die
| Line | Description | Parameters |
|---|---|---|
| 1 | Design: | As per standard wedge anchor clips design, customer design and specific requirements |
| 2 | Accept drawing format: | .pdf/.jpg / .dwg / .igs / .stp etc.. |
| 3 | Material: | carbon steel, alloy steel, stainless steel, high-speed steel and etc. |
| 4 | Size: | Accordng to the drawings or Customized drawing |
| 5 | Material standard: | If there is no any specially requirement, we often sugguest our customer to try the equivalent China National (GB) standard material that our engineering team proposes which to be properly converted from ANSI, ASTM, SAE, EN, DIN, BS, JIS, and etc., to contribute the material cost control. If it is necessary to use exact designated material no., it is also possible choice. |
| 6 | Components and types: | sheet metal high speed Progressive stamping die,blanking die,trimming die,punching die,flanging die,bending die, drawing die and etc. |
| 7 | Fuctions and usage: | -blanking-piercing-cutting off-trimming-stretching-deep drawing-flanging-bending-plunge-bulging-finishing |
wedge anchor clip sheet metal Progressive stamping die
Principle of Wedge anchor bolt clip high speed progressive stamping dieProgressive die stamping is a metal forming process widely used to produce parts for various industries, such as automotive, electronics and appliances. Progressive die stamping consists of several individual work stations, each of which performs one or more different operations on the part. The part is carried from station to station by the stock strip and is cut out of the strip in the final operation.In progressive die stamping, a steel strip is formed into a finished part in several operations.
The decision to produce a part in progressive die or transfer die is dependent on size, complexity and volume of production. Progressive die stamping is used to produce a large number of parts and keep the costs as low as possible. The highest demands in precision and durability must be met.
Due to the complexity of progressive dies, it is important to address all the factors that contribute to achieving the desired level of part quality, including blank position, pilots, blank boundary and stretch-web deformation.
Pilots play an important role in progressive die stamping – they fix the strip into an appropriate position and maintain control over it. In addition, they are essential for precise sheet positioning during tool closing and drawing operations in transfer dies. Other factors to be considered are timing and interaction of carriers, pads, and upper and lower tools. The benefits of progressive die stamping are increased productivity and significant cost reduction for high-volume production.
wedge anchor clip sheet metal Progressive stamping die details
wedge anchor clip sheet metal Progressive stamping die making process

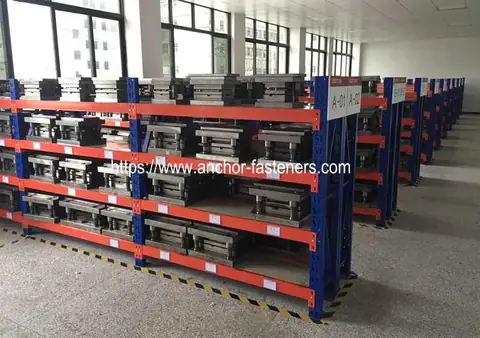

wedge anchor clip sheet metal Progressive stamping die storage
Related Machines
More From Clips Stamping Die
10MM wedge anchor clip sheet metal Progressive punching mould12MM wedge anchor clip sheet metal Progressive stamping die16MM wedge anchor clip sheet metal Progressive pressing mould20MM wedge anchor clip sheet metal Progressive stamping mould6MM wedge anchor clip sheet metal Progressive pressing die8MM wedge anchor clip sheet metal Progressive punching die
Lift anchor plain washer progressive feeding making sets
M10 through bolt clip double pcs drop progressive stamping moldQuestions About This Machine
Where Is This Machine Made
It is manufactured by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, Zhejiang, China, in our own 18,000 square meters workshop with advanced machining equipment.
Can The Machine Be Customised
Items shown as “Customized” in the specification table — such as voltage and machine colour — are set according to your requirement. Send us your part drawing and production target and we will confirm what can be adapted.
What Components Are Used In The Machine
We use the world's advanced technology and well-known brands components to ensure high precision and long working life with reliable performance.
Do You Provide Operator Training
Yes. Our professional rapid response technical team instructs machine operation and helps solve problems occurring during production.
Which Countries Do You Export To
Our equipment has been sold to customers all over the world, including Mexico, India, Turkey, Vietnam, Malaysia and South Africa, and many domestic forging and stamping manufacturers in China also use our machines.
How Do I Get A Quotation
Send us your requirement by WhatsApp on +86 185 5689 5898 or email [email protected]. Tell us the fastener or part you want to produce, the size range and the output you need, and we will advise which machine suits.
Tell Us What You Need To Produce
Send your part drawing, size range and target output and our engineers will advise which machine suits your production.
