Optical Sorting Machine

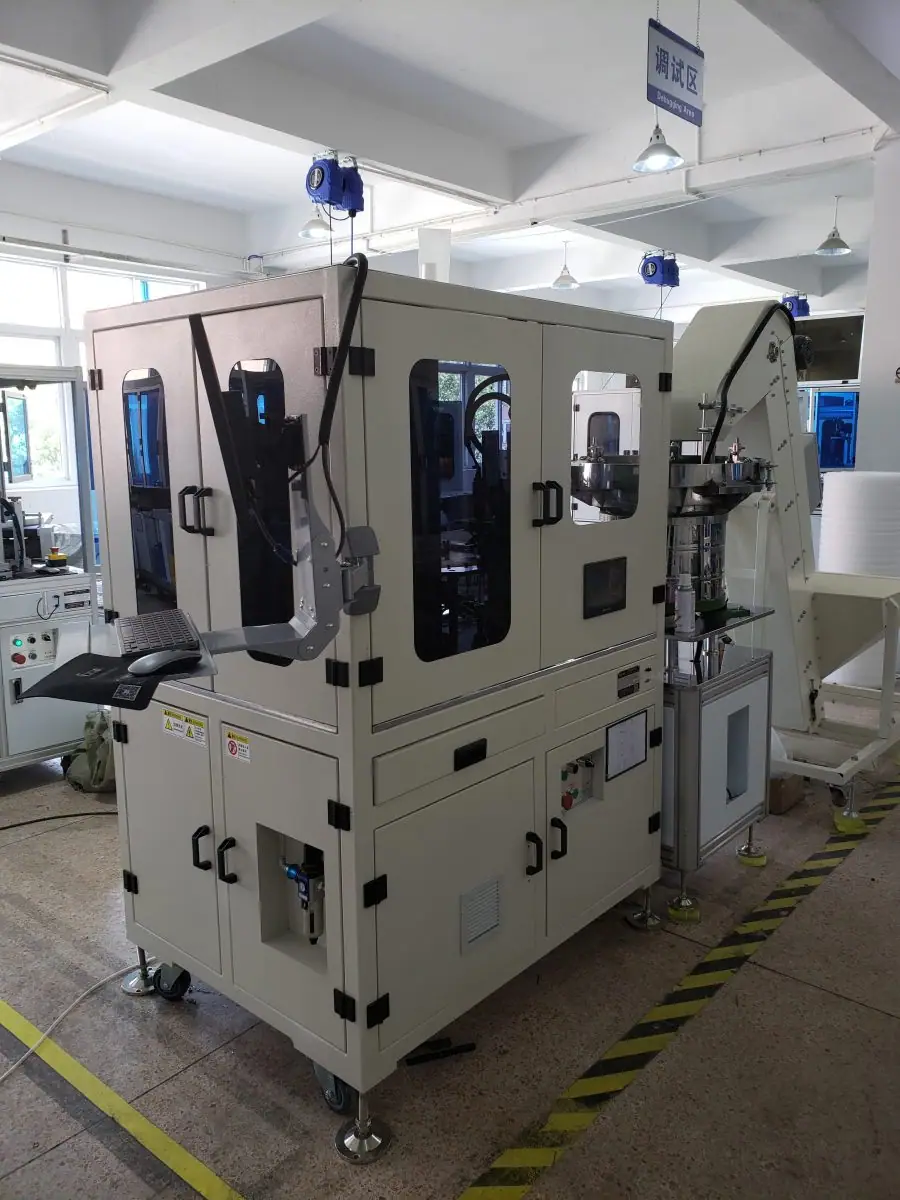

Suspended hanging turntable screws optics sorting inspection machine
The highest repeatability can reach ±0.001mm. The screening speed can reach up to 1800Pcs/min.
- MODELAOS1-C8 AOS1-C6
- APPRO. WEIGHT600KG 500KG
- APPRO. DIMENSION1.1*1.1*1.9M 0.9*1*1.8M
- GLASS PLATE DIAMETER600MM 500MM
- MAX. COMPONENT DIAMETER70MM 60MM
- MAX. COMPONENT HEIGHT/LENGTH70MM 60MM
- CAMERA QUANTITY1-8PCS 1-6PCS
- MAX. SORTING PRECISION±0.001MM ±0.001MM
- Built by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, China
- More than twenty years experience in cold and hot forging and metal stamping equipment
- Rapid response technical team for operation guidance and production support
Watch Machine Video
Salient Features of Suspended hanging turntable screws optics sorting inspection machine
◇High precision
The highest repeatability can reach ±0.001mm.
◇Fast speed
The screening speed can reach up to 1800Pcs/min.
◇ Wide range
Can detect screws, nuts, oil seals, O-rings, spring washers, special shaped hardware, electronic components and unstable screw pull caps and items can be hung, etc., especially for non-standard objects.
◇Low energy consumption
Energy required for the equipment: air source 0.6MPa, AC 220V 5A power supply or customized.
◇ Tailored
The equipment can be customized and developed according to the actual needs of customers.
◇Easy to operate
User-friendly interface, can quickly replace products, easy to understand and learn, free upgrade for life.
Self-developed software, with its own toolkit, can create or modify test items by yourself at any time,
◇Data can be collected
Production data report statistics function: the main interface is clear, and the product defect types are intuitive. software package
with CPK, diagram, defective rate and other calculation functions, it can directly export data and report printing, improve workshop process, improve product quality, and improve work efficiency.
Main Specifications:
| MODEL | AOS1-C6 | AOS1-C8 |
| GLASS PLATE DIAMETER: | 500MM | 600MM |
| MAX. COMPONENT DIAMETER: | 60MM | 70MM |
| MAX. COMPONENT HEIGHT/LENGTH: | 60MM | 70MM |
| CAMERA QUANTITY: | 1-6PCS | 1-8PCS |
| MAX. SORTING PRECISION: | ±0.001MM | ±0.001MM |
| MAX. SORTING SPEED: | 2200P/M | 2200P/M |
| CAMERA BRAND: | BASLTER | BASLTER |
| LENS BRAND: | COMPUTAR | COMPUTAR |
| SORTING MACHINE SOFTWARE: | SELF DEVELOPED | SELF DEVELOPED |
| INDUSTRIAL COMPUTER: | STANDARD | STANDARD |
| PLC BRAND: | MITSUBISHI | MITSUBISHI |
| VOLATAGE: | 220V AC | 220V AC |
| POWER: | 2KW | 2KW |
| APPRO. WEIGHT: | 500KG | 600KG |
| APPRO. DIMENSION: | 0.9*1*1.8M | 1.1*1.1*1.9M |
| REMARK:ACTUAL PARAMETERS DISIGN AS PER REQUIREMENT AND CUSTOMIZABLE. | ||
Some items can be sorted by Suspended hanging turntable screws optics sorting inspection machine
Related Machines
More From Optical Sorting Machine
Questions About This Machine
Where Is This Machine Made
It is manufactured by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, Zhejiang, China, in our own 18,000 square meters workshop with advanced machining equipment.
Can The Machine Be Customised
Items shown as “Customized” in the specification table — such as voltage and machine colour — are set according to your requirement. Send us your part drawing and production target and we will confirm what can be adapted.
What Components Are Used In The Machine
We use the world's advanced technology and well-known brands components to ensure high precision and long working life with reliable performance.
Do You Provide Operator Training
Yes. Our professional rapid response technical team instructs machine operation and helps solve problems occurring during production.
Which Countries Do You Export To
Our equipment has been sold to customers all over the world, including Mexico, India, Turkey, Vietnam, Malaysia and South Africa, and many domestic forging and stamping manufacturers in China also use our machines.
How Do I Get A Quotation
Send us your requirement by WhatsApp on +86 185 5689 5898 or email [email protected]. Tell us the fastener or part you want to produce, the size range and the output you need, and we will advise which machine suits.
