Leg Nuts Making Machine

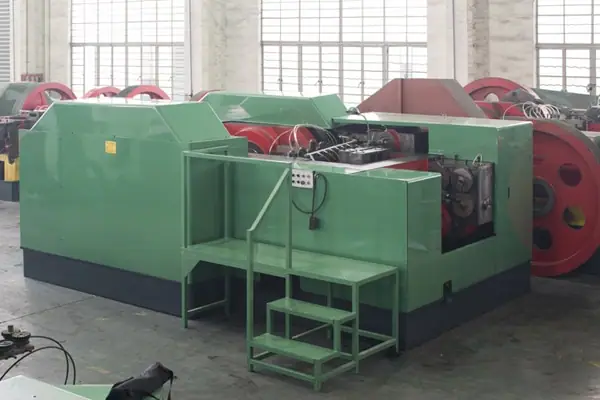

Shield anchor taper leg nut making machine
3PCS 4PCS Heavy duty shield anchor nuts made by M6 3PCS Heavy duty shield anchor nuts automatic high speed making machine 3PCS 4PCS Heavy duty shield anchor…
- Main Motor20 HP
- Appro.Weight4.5 TON
- ParametersModel:ANF11B-6S-14
- Max. Diameter11 MM
- Max. Length14 MM
- Kick Out Length14 MM
- Forging Force60 TON
- Max. Output150 PPM
- Built by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, China
- More than twenty years experience in cold and hot forging and metal stamping equipment
- Rapid response technical team for operation guidance and production support
Watch Machine Video
Running video of Shield anchor taper leg nut making machine
Main Advantages:
1. Effectively improve production efficiency and reduce production process. Our equipment production capacity is remarkable, surpassesmost of manufacturers, greatly reduce production process, the standard productsare basically once formed, save time and effort.
2. Save cost.Due to the drastic reduction of production process,enterprises can save labor cost, manufacturing cost and time cost whileensuring production capacity. The combined cost is reduced by as much as 50%.
3. Productionsof machine are highly developable. All kinds of standard, non-standard products, as long asmolds are formed, they will have a mass production
4. Durable equipment life. Ourcompany is taiwanese-owned enterprises, machinery parts and components areimported from Taiwan, then assembled in the mainland, and ourcompany has always been strictly the quality pass,just want to supply our customers the best products.

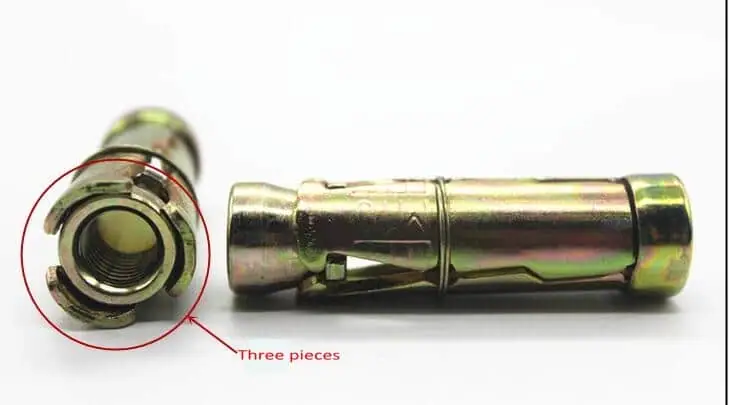

3PCS 4PCS Heavy duty shield anchor nuts made by M6 3PCS Heavy duty shield anchor nuts automatic high speed making machine
3PCS 4PCS Heavy duty shield anchor nuts made by M6 3PCS Heavy duty shield anchor nuts automatic high speed making machine
Specifications of M6 3PCS Shield anchor nuts automatic high speed making machine
| Parameters | Unit | Model:ANF11B-6S-14 |
|---|---|---|
| Max. Diameter | MM | 11 |
| Max. Length | MM | 14 |
| Kick Out Length | MM | 14 |
| Forging Force | TON | 60 |
| Max. Output | PPM | 150 |
| Ram Stroke | MM | 58 |
| Dies Pitch | MM | 50 |
| Main Motor | HP | 20 |
| Lub. Motor | HP | 1 |
| Appro.Weight | TON | 4.5 |
| Appro. Size | M | 2.5*1.7*1.3 |

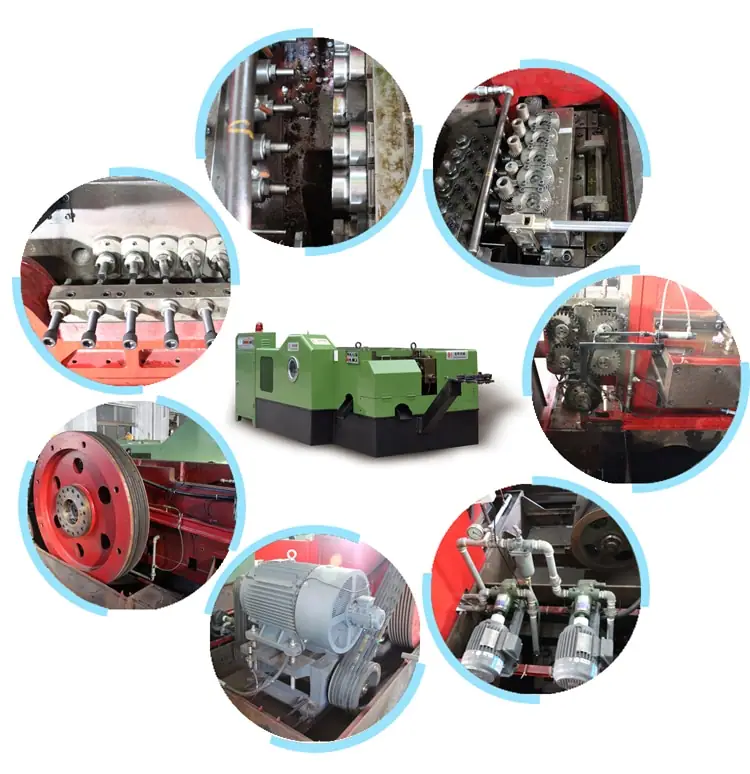

Nuts/drop in anchor taper pin/bullets forging machine structure
Main Features of Shield anchor taper leg nut making machine
NO.1.The machine body and main sliding block are processed through stress relieving after being forged to prevent from deformation and ensure durable mechanical stabolity.
NO.2.Machine body of high alloy steel imported is prossed through quenching treatment to ensure lasting resistance to wearing.
NO.3.Eash cam is precisely designed with computer and made in CNC process center to ensure correct and smooth cam common normal.
NO.4.Applying air compressor clutch,smooth and steady start current brake,realization of inching,single stroke and continuous running,besides inching way,main sliding block will stop at the utmost point ehen the machine stops every time to provide max. operation space.
NO.5.Circumferential flushing trimming.
NO.6.Synchronic reverse of plunger die ejecting with primary slipway to ensure the product shall be temporarily kept in the plunger die and prenvent from falling our by the plunger die.
NO.7.We can attach with frequency converter with stepless speed control.
NO.8.PLC digital control inspection device enabling automatic inspection of the working state and failure alarming display.
NO.9.Tongs of swing type and rotary type provide with pneunatic mechanism, clamping stably.
NO.10. Running in a high automatization and intellectualization,no pollution
