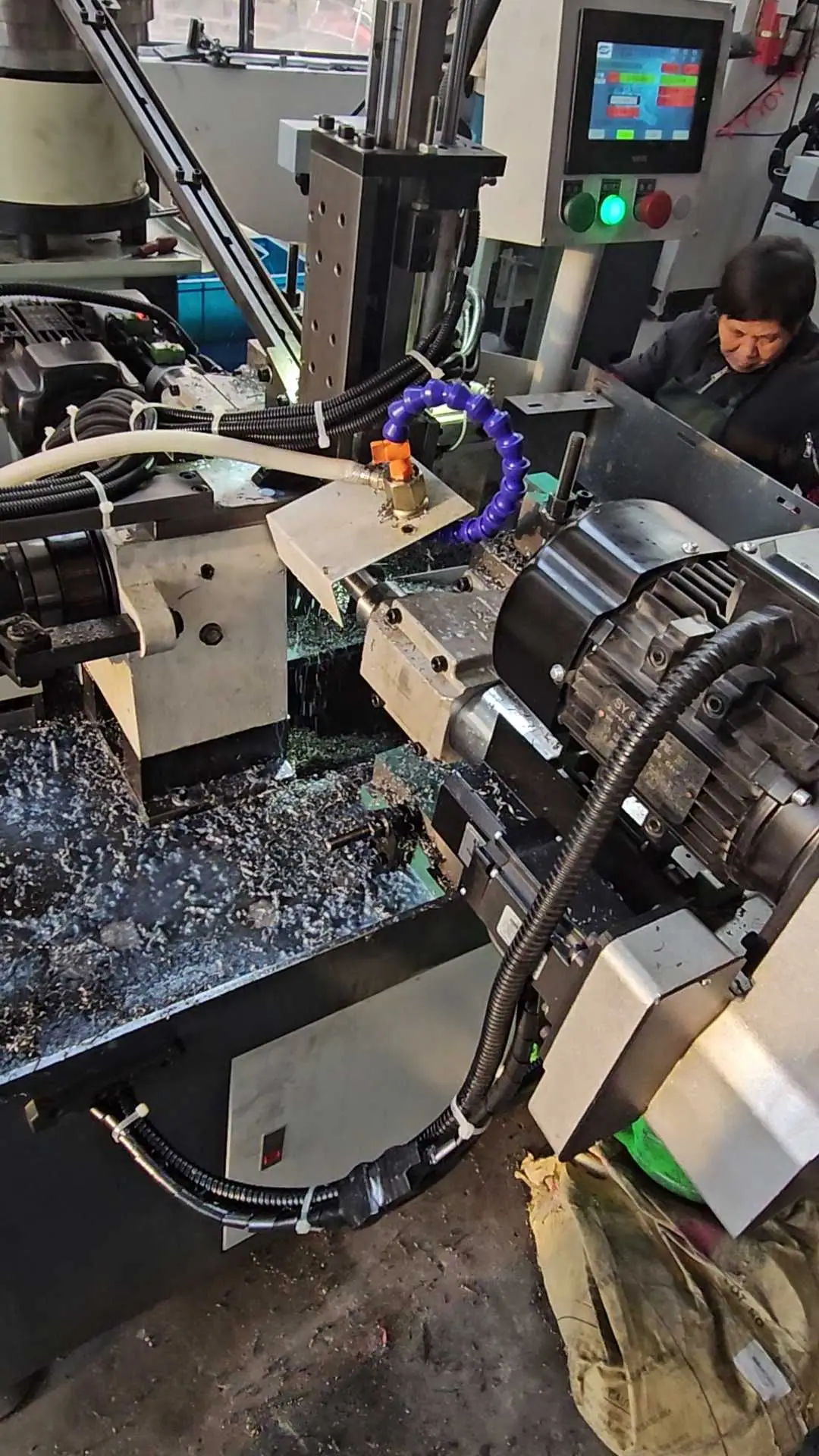

Rod double sides chamfering through hole drilling lathe machine
Workpiece length:20-80mm(Can be equipped with vibrating plate) Power supply voltage:380V 50HZ(Three-phase four wire) or customized
- Built by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, China
- More than twenty years experience in cold and hot forging and metal stamping equipment
- Rapid response technical team for operation guidance and production support
Watch Machine Video
Running video of Rod double sides chamfering through hole drilling lathe machine
Specifications of Rod double sides chamfering through hole drilling lathe machine
Workpiece length:20-80mm(Can be equipped with vibrating plate)
Diameter of workpiece:4-20mm(Can lengthen)
The working range:Boring and tapping
Processing speed:5-20/Minute
Length tolerance:s ±0.05mm
Control systen:PLC+Hydraulic system
Motor power:1.5/2.2KW
Spindle speed:2200RPM
Power supply voltage:380V 50HZ(Three-phase four wire) or customized
Weight:530KG
Main use and application scope of Rod double sides chamfering through hole drilling lathe machine
Scope of application: It is suitable for mass production of Non standard shaft parts automatic boring and thread tapping.
