Automatic Cutting Machine

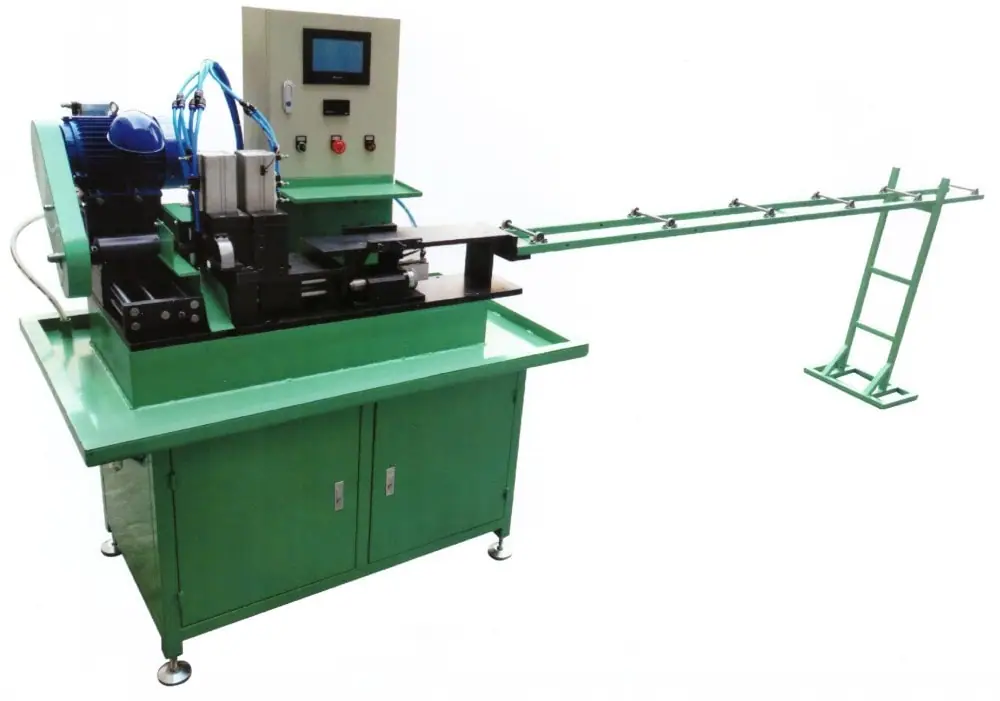

Raw metal material automatic cutting machine
Workpiece length: 5-195mm (can be customized and lengthened) Workpiece diameter: 2-32mm (can be increased) Workpiece shape: round, square, hexagonal…
- Built by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, China
- More than twenty years experience in cold and hot forging and metal stamping equipment
- Rapid response technical team for operation guidance and production support
Raw metal material automatic cutting machine specifications:
Workpiece length: 5-195mm (can be customized and lengthened)
Workpiece diameter: 2-32mm (can be increased)
Workpiece shape: round, square, hexagonal, different shapes
Length tolerance: s±0.03mm
Parallelism: s±0.015mm
Control System: PLC
Motor power: 1.5/2.2KW
Power system: pneumatic, servo
Spindle speed: 200-3000 rpm (infinitely variable speed)
Power supply voltage: 380V 50HZ (three-phase four-wire)
Machine weight: about 500kg
Feed form: post feed
Main use and application scope of Raw metal material automatic cutting machine
Scope of application: It is suitable for mass production of fixed length cutting of various small shaft and tube shaped parts, cutting without burr and accurate verticality.

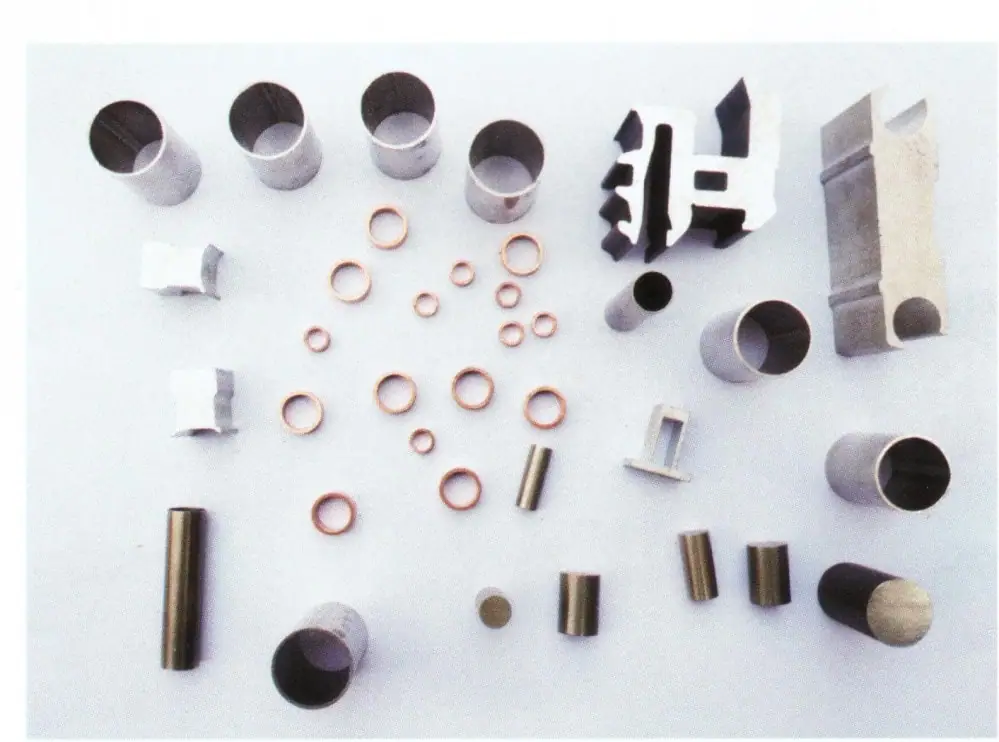

Material sample cutted by Raw metal material automatic cutting machine
Raw metal material cutted by automatic cutting machine
