Automatic Turning Lathe

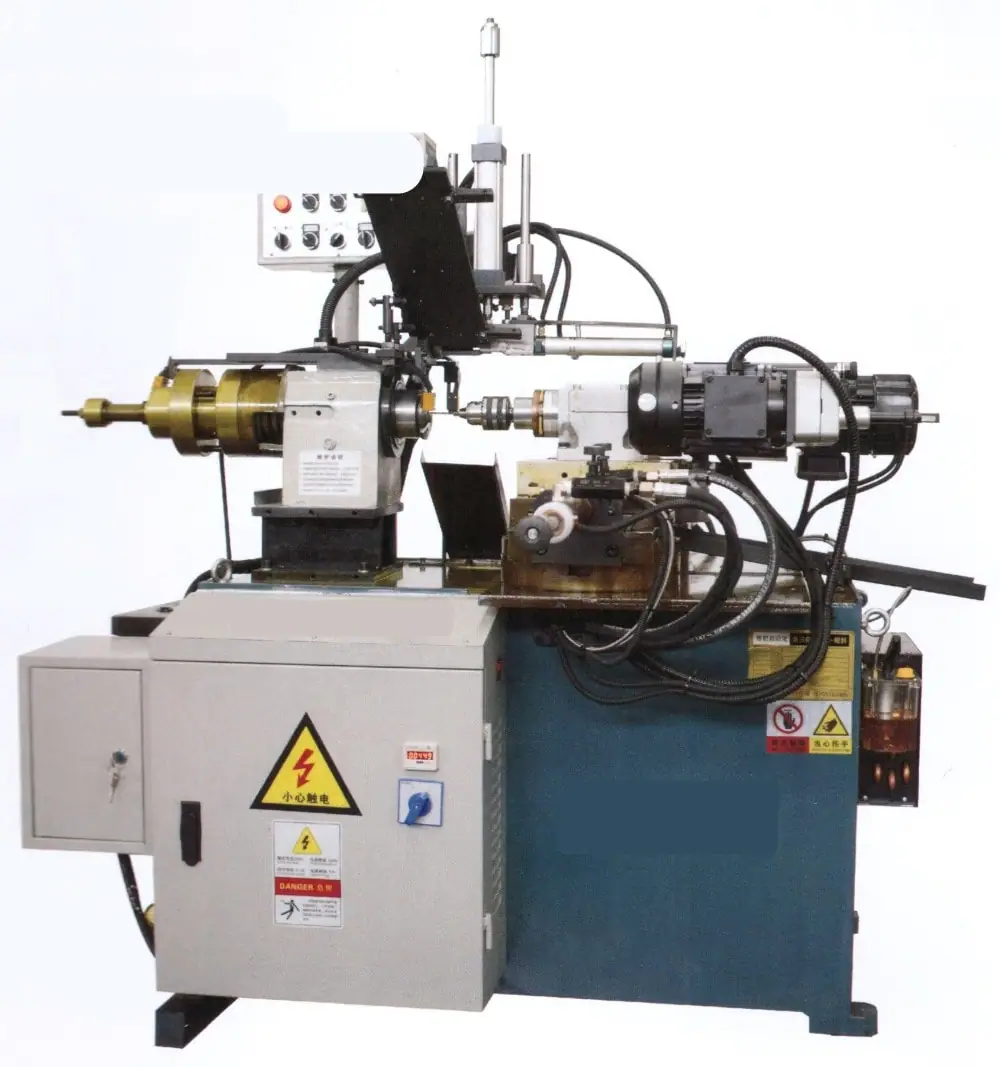

Non standard shaft parts automatic boring and thread tapping machine
Workpiece length:20-80mm(Can be equipped with vibrating plate) Power supply voltage:380V 50HZ(Three-phase four wire) or customized
- Built by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, China
- More than twenty years experience in cold and hot forging and metal stamping equipment
- Rapid response technical team for operation guidance and production support
Specifications of Non standard parts automatic boring and thread tapping machine
Workpiece length:20-80mm(Can be equipped with vibrating plate)
Diameter of workpiece:4-20mm(Can lengthen)
The working range:Boring and tapping
Processing speed:5-20/Minute
Length tolerance:s ±0.05mm
Control systen:PLC+Hydraulic system
Motor power:1.5/2.2KW
Spindle speed:2200RPM
Power supply voltage:380V 50HZ(Three-phase four wire) or customized
Weight:530KG
Main use and application scope of Non standard parts automatic boring and thread tapping machine
Scope of application: It is suitable for mass production of Non standard shaft parts automatic boring and thred tapping
Material sample machined by Non standard parts automatic boring and thread tapping machine
Samples of Non standard shaft parts automatic boring and thread tapping
Related Machines
More From Automatic Turning Lathe
Aluminum rod OD reducing and chamfering auto machining lathe
ATL-25 specialty fastener front feeding automatic turning lathe
ATL-32 Industrial special Fasteners automatic turning lathe
Automatic angle indexing hole boring machine
Automatic square hex shape head machining latheBall head joint auto part hydraulic auto turning lathe
Bent bolt shaft components manipulator feeding auto straightening machine
Bolt bottom deep hole drilling machineQuestions About This Machine
Where Is This Machine Made
It is manufactured by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, Zhejiang, China, in our own 18,000 square meters workshop with advanced machining equipment.
Can The Machine Be Customised
Items shown as “Customized” in the specification table — such as voltage and machine colour — are set according to your requirement. Send us your part drawing and production target and we will confirm what can be adapted.
What Components Are Used In The Machine
We use the world's advanced technology and well-known brands components to ensure high precision and long working life with reliable performance.
Do You Provide Operator Training
Yes. Our professional rapid response technical team instructs machine operation and helps solve problems occurring during production.
Which Countries Do You Export To
Our equipment has been sold to customers all over the world, including Mexico, India, Turkey, Vietnam, Malaysia and South Africa, and many domestic forging and stamping manufacturers in China also use our machines.
How Do I Get A Quotation
Send us your requirement by WhatsApp on +86 185 5689 5898 or email [email protected]. Tell us the fastener or part you want to produce, the size range and the output you need, and we will advise which machine suits.
Tell Us What You Need To Produce
Send your part drawing, size range and target output and our engineers will advise which machine suits your production.
