Bolt Shaft Straightening Machine

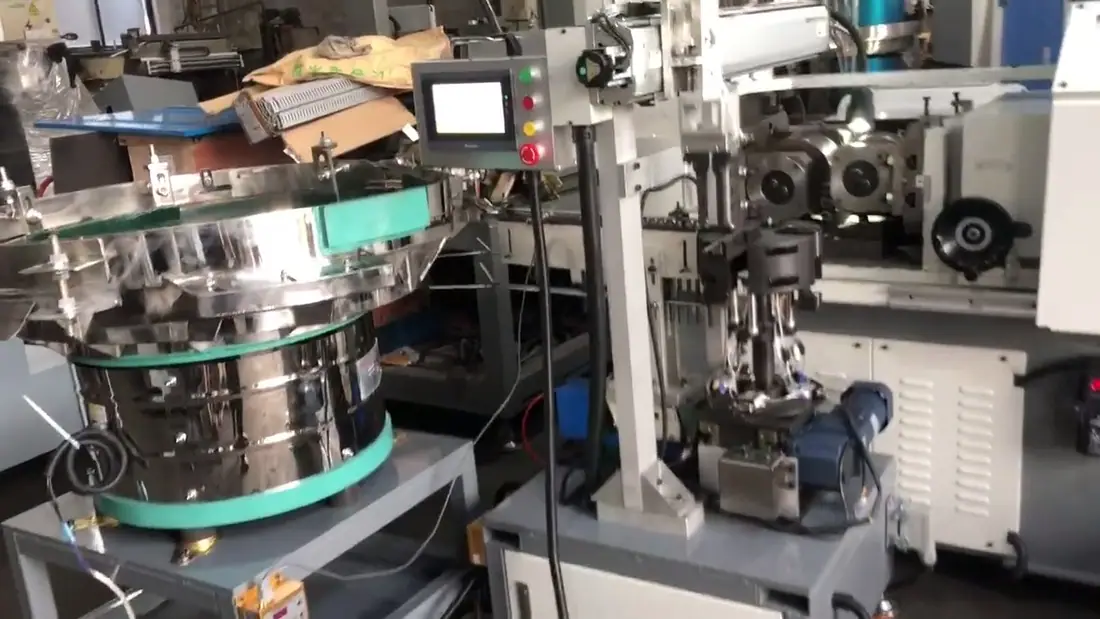

Harden bent bolt shaft rod workpiece automatic straightening machine
FEEDING: ROTARY MANIPULATOR WITH DIA.850MM VIBRATOR (SUIT FOR BOLT M6-M10,LENGTH 80-300MM)
- Built by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, China
- More than twenty years experience in cold and hot forging and metal stamping equipment
- Rapid response technical team for operation guidance and production support
Watch Machine Video
Running video of Harden bent bolt shaft rod workpiece automatic straightening machine
Main Technical Parameters
ABS-80 BOLT STRAIGHTENING MACHINE
BOLT SIZE:M6-M14
BOLT LENGTH:80-300MM
FEEDING: ROTARY MANIPULATOR WITH DIA.850MM VIBRATOR (SUIT FOR BOLT M6-M10,LENGTH 80-300MM)
| Harden bent bolt shaft rod workpiece automatic straightening machine | ||||||
| Max. rolling pressure | KN | 80 | 240 | |||
| Rolling spline range | Max. diameter | mm | 70 | 70 | ||
| Max. module | mm | 0.75 | 1.25 | |||
| Rolling die range | Max. outer diameter | mm | 178 | 200 | ||
| Aperture | mm | 54 | 75 | |||
| Max. width | mm | 105 | 120 | |||
| Max. center distance btw. main axis | mm | 240 | 270 | |||
| Main axis rotation | r.p.m. | 28.35.45.56 | 19.24.31.40 | |||
| Main axis inclination | ||||||
| Feed travel | mm | 2*7 | 2*7 | |||
| Center height | mm | 900 | 900 | |||
| Gross power | KW | 10.2 | 12.2 | |||
| Dimensions(L*W*H) | mm | 1500*1700*1600 | 2000*1900*1650 | |||
| Packing dimensions(L*W*H) | mm | 2000*2000*1900 | 2250*2000*1900 | |||
| Weight | Kg | 3000 | 3500 | |||
Related Machines
More From Bolt Shaft Straightening Machine
Questions About This Machine
Where Is This Machine Made
It is manufactured by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, Zhejiang, China, in our own 18,000 square meters workshop with advanced machining equipment.
What Components Are Used In The Machine
We use the world's advanced technology and well-known brands components to ensure high precision and long working life with reliable performance.
Do You Provide Operator Training
Yes. Our professional rapid response technical team instructs machine operation and helps solve problems occurring during production.
Which Countries Do You Export To
Our equipment has been sold to customers all over the world, including Mexico, India, Turkey, Vietnam, Malaysia and South Africa, and many domestic forging and stamping manufacturers in China also use our machines.
How Do I Get A Quotation
Send us your requirement by WhatsApp on +86 185 5689 5898 or email [email protected]. Tell us the fastener or part you want to produce, the size range and the output you need, and we will advise which machine suits.
Tell Us What You Need To Produce
Send your part drawing, size range and target output and our engineers will advise which machine suits your production.
