Pipe Bending Machine

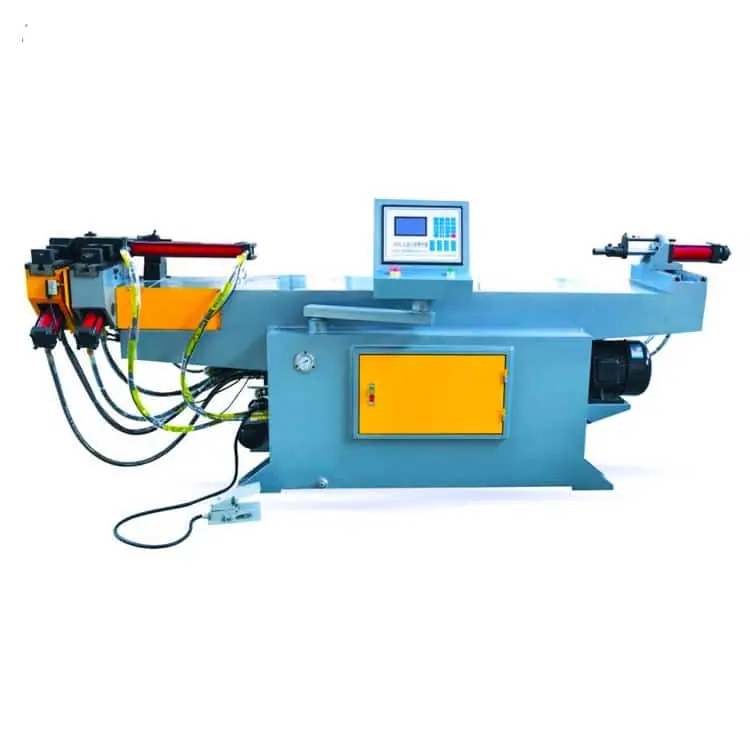

AW63CNC automatic feeding and 360 degree rotation pipe bending machine
Auto parts (brake tubing, bumper, muffler, seat). Motorcycle manufacturing, bicycle industry, fitness equipment, Air conditioning and refrigeration, steel…
- Built by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, China
- More than twenty years experience in cold and hot forging and metal stamping equipment
- Rapid response technical team for operation guidance and production support
Application of pipe bending machine
Auto parts (brake tubing, bumper, muffler, seat).
Motorcycle manufacturing, bicycle industry, fitness equipment,
Air conditioning and refrigeration, steel furniture, sanitary equipment and other industries.
Adapted material:steel pipe, stainless steel tube, copper pipe, aluminum pipe,etc.
| Main specification | Model: AW63NC | unit | Remarks |
| Maximum applicable carbon steel pipe bending radius 1.5D For example |
Φ 63.2 X 2. 5 t | Mm | 1. The minimum bending radius depends on the diameter of the pipe
2. The maximum bending radius can be based on customer requirements 3. The maximum core length can be customized according to customer requirements. |
| Maximum applicable stainless steel pipe bending radius 1.5D For example | Φ 50.8 X 2 . 0 t | Mm | |
| Standard core length ( a ) | 2610 | Mm | |
| Maximum bending radius | 350 | Mm | |
| Minimum bending radius | R20 | Mm | |
| Maximum bending angle | 190 | Degree | |
| The number of bends can be set for each pipe | 16 | Unit | |
| Number of parts that can be stored | 16 × 16 | Unit | |
| Hydraulic system control | The electromagnetic valve | ||
| Control System | Microcomputer control | ||
| Maximum hydraulic pressure | 14 | Mpa | |
| Hydraulic motor power | 5.5 | Kw | |
| Fuel tank capacity | 150 | L | |
| Machine dimensions | 3800*850*1030 | Mm | |
| Machine weight | 1520 | Kg |
AW63CNC automatic feeding and 360 degree rotation pipe bending machine structure 1
AW63CNC automatic feeding and 360 degree rotation pipe bending machine structure 2
Features of pipe bending machine
- Interactive PLC touch screen offers easy access to auto and manual operating modes.
- System diagnostics and multiple language capability.
- Standard clockwise bending direction.
- Fully hydraulic clamping on clamp die and pressure die.
- Drop-way hydraulic clamping.
- Direct acting hydraulic pressure die with adjustable speed valve.
- Maximum 100 sets of program storage,Maximum 32 bends for each program.
- With Independent programmable speeds Y, B, and C axes.
- Programmable material spring back settings for each bend angle.
- Automatic release of tube prior to final bend.
- Bending Axis-Driven by Cylinder,Feeding Axis-Driven by Servo Motor,Rotating Axis-Driven by Servo Motor.
- Obtain quality repeatable bends in steel, stainless, aluminum, titanium and brass.
- Foot Pedal Cycle start.
- With Air Cooling System.
- One set of Tooling for Draw Bending.
- Wiper die Bracket.
- 1 Mandrel Rod.
- Operation and Maintenance Manual.
- Tool Box with Adjusted Tools.
- Electric: As required (3 phase 220V or 380V or 415V…)
AW63CNC automatic feeding and 360 degree rotation pipe bending machine parts brands
Optional items of pipe bending machine
- Industrial Computer Controlling
- Anticipate Mandrel Extraction
- Automatic mandrel/machine lubrication
- Anti-clockwise bending direction
- Machine effective length over mandrel
- Safety Mat
