Self Drilling Screw Forming Machine

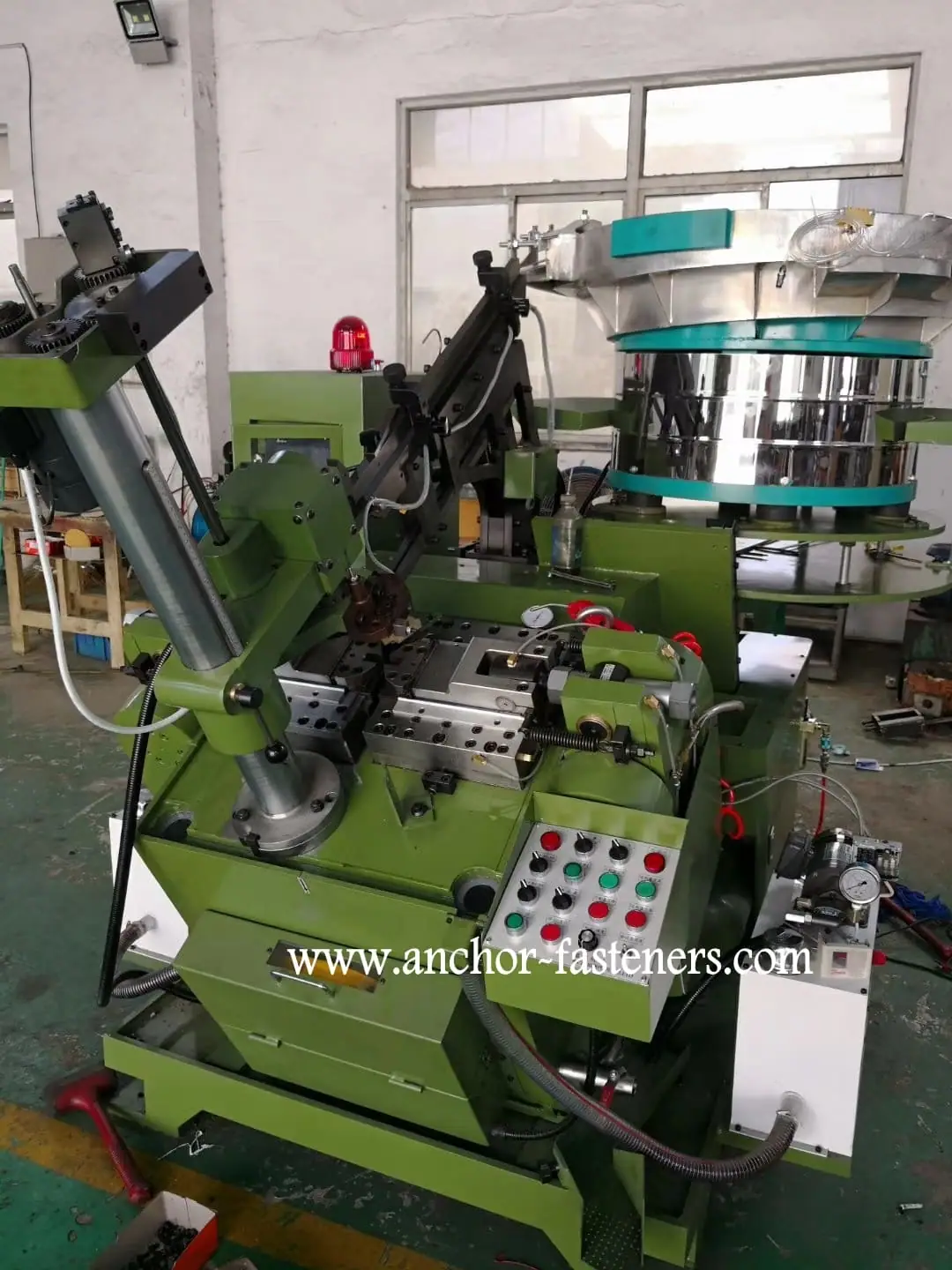

APM-400 Automatic Self Drilling Screws End Forming Machine
The self tapping screw point forming machine designed for forming the end of stainless steel and mild steel self drilling screws,suitable for extra long…
- ModelAPM-400
- Appro. Weight3TON
- Appro. Dimension200*160*210CM
- PowerINVERTER 11KW,MOTOR 7.5KW
- Screw diameter and length rangeDIA:2.8-8MM(6#-18#),LENGTH 10-400MM
- SpeedSINGLE CLICK 100-500 PCS PER MIN,DOUBLE CLICK 40-150 PCS PER MIN
- Control methodPLC AUTOMATIC CONTROL
- Detection systemTOUCH SCREEN MAN-MACHINE FAULT DETECT AND DISPLAY
- Built by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, China
- More than twenty years experience in cold and hot forging and metal stamping equipment
- Rapid response technical team for operation guidance and production support
Watch Machine Video
Running video of APM-400 Automatic Self Drilling Screws End Forming Machine
Application of APM-400 Automatic Self Drilling Screws End Forming Machine
The self tapping screw point forming machine designed for forming the end of stainless steel and mild steel self drilling screws,suitable for extra long self-drilling screw upto 400mm.
1. The Self-Drilling Screws are popular fasteners which widely used in industries like building,car manufacture,etc.
2. The Self-Drilling Screws have features of drilling & fixing easily.
3. The material of Self-Drilling Screw is carbon steel wire AISI 1018-1022 or stainless steel material. Usually the product have five procession: (1) Cold heading by cold heading machine (2) Drilling point forming by Self-Drilling Screw Making Machine (3) Thread rolling by Thread rolling machine (4) Heat treatment by mesh belt furnace (5) Electroplating by zinc plating equipment.
4. The Self-Drilling Screw Making Machine is used to form the drilling point of the screw.
Features of APM-400 Automatic Self Drilling Screws End Forming Machine
1. Working bench is designed by die set for easy and simple operation and maintenance.
2. Monitor and control by Program Logical Control(PLC) system, trouble and alarm displayed on the board by Light Emitted Display (LED) system, so the trouble can be easily noted and sorted.
3.Key parts like rotary and sliding parts have been processed under heat-treatment for good wear-resisting.
4.High speed and automatic, noiseless and energy-saving.
5.High precision, original accurate position return and absolute synchronizing.
Structure of High Speed Self Tapping Screw Point Forming Machine
Mold and die system of High Speed Self Tapping Screw Point Forming Machine
Main Technical Parameters of APM-400 Automatic Self Drilling Screws End Forming Machine
| Model | APM-400 |
| Appro. Dimension | 200*160*210CM |
| Power | INVERTER 11KW,MOTOR 7.5KW |
| Screw diameter and length range | DIA:2.8-8MM(6#-18#),LENGTH 10-400MM |
| Speed | SINGLE CLICK 100-500 PCS PER MIN,DOUBLE CLICK 40-150 PCS PER MIN |
| Control method | PLC AUTOMATIC CONTROL |
| Detection system | TOUCH SCREEN MAN-MACHINE FAULT DETECT AND DISPLAY |
| Transmission type | MAC SOLENOID VALVE PLUS COMPRESSOR CLUTCH(DRIVE PLUS BRAKE) |
| Screws separate type | INDEX HIGH SPEED PRECISION SEGMENTATION |
| Appro. Weight | 3TON |
