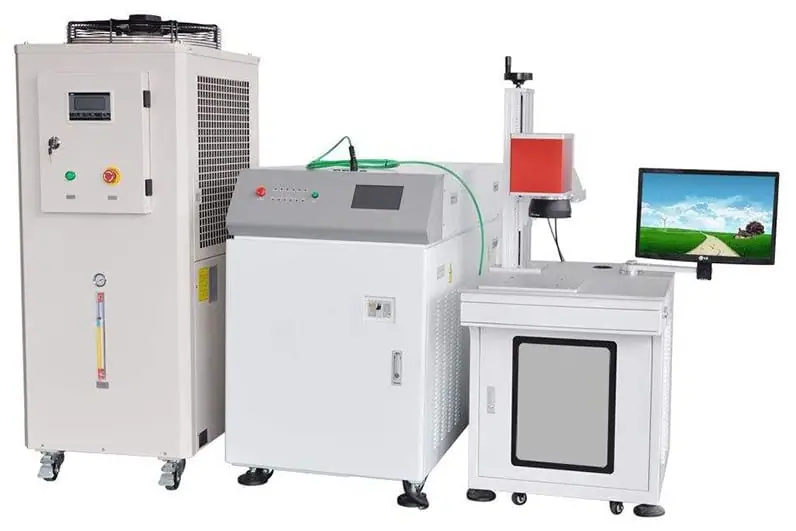

AMY-Z vibroscope laser welding machine
Fiber optic vibration-mirror laser welding machine is a kind of laser welding equipment which coupling high-energy laser beam into fiber and then collimating…
- Built by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, China
- More than twenty years experience in cold and hot forging and metal stamping equipment
- Rapid response technical team for operation guidance and production support
Features of AMY-Z vibroscope laser welding machine
Fiber optic vibration-mirror laser welding machine is a kind of laser welding equipment which coupling high-energy laser beam into fiber and then collimating to parallel light through collimating lens after distance transmission, and then focusing on the workpiece to perform welding. Electro-optic conversion efficiency is high, the closed-loop feedback control laser power, laser energy to avoid the xenon lamp aging influence on laser power, output is more stable than current feedback type equipment, pulse shape can be arbitrary set 16 segment, most semiconductor red indicator, can be suitable for all kinds of complicated shape workpiece processing, reduce the requirement of jig.
Specifications of AMY-Z vibroscope laser welding machine
| Type | AMY-Z200W | AMY-Z300W | AMY-Z500W |
| Laser wavelength | 1064nm | 1064nm | 1064nm |
| Output optical power | 200W | 300W | 500W |
| Maximum pulse energy | 70J | 80-90J | 90-110J |
| Maximum peak power | 6.5KW | 7KW | 8KW |
| Pulse width | 0.3-15ms | 0.3-15ms | 0.3-15ms |
| Globule size | 0.4-2mm | 0.4-2mm | 0.4-2mm |
| Pulse repetition rate | 1—100HZ | 1—100HZ | 1—100HZ |
| Continuous pulse width per unit time (1s) | 200ms/s | 200ms/s | 200ms/s |
| Spectroscopic methods | Precision energy or high speed time spectrophotometry | ||
| Closed loop feedback control | Real-time control of power negative feedback with arbitrary waveform | ||
| Energy fluctuation | <±3% | ||
| Number of optical fibers | ≤4（Standard single light path） | ||
| Aiming mode | Laser diode red light indicates CCD selection | ||
| Cooling way | External chiller (with internal circulation) | ||
| Power consumption | 6.5KW | 15KW | 21KW |
| Power Supply | AC220V-380V±15% 50/60Hz | AC380V±15% 50/60Hz | AC380V±15% 50/60Hz |
| Size of Host Machine | 1460*660*1080mm | 1460*660*1080mm | 1460*660*1080mm |

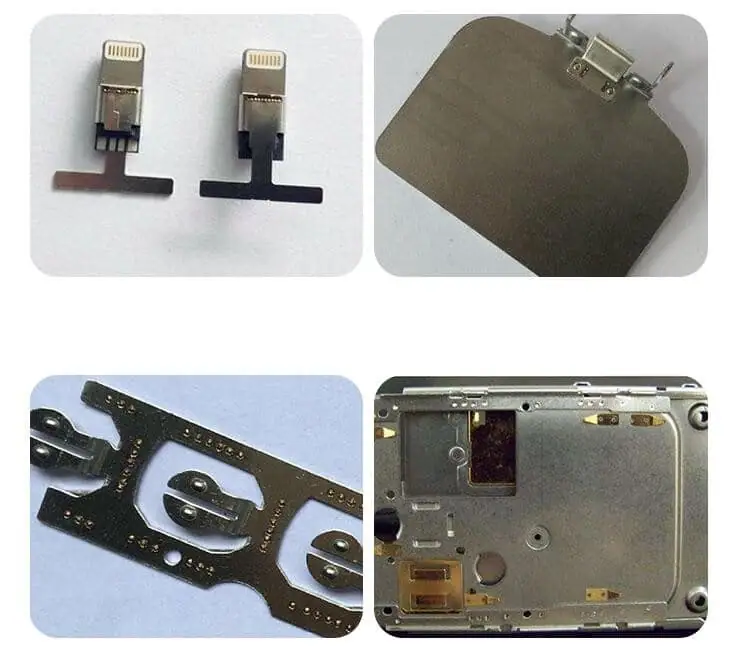

Welded Samples of AMY-Z vibroscope laser welding machine
Samples welded by AMY-Z vibroscope laser welding machine
