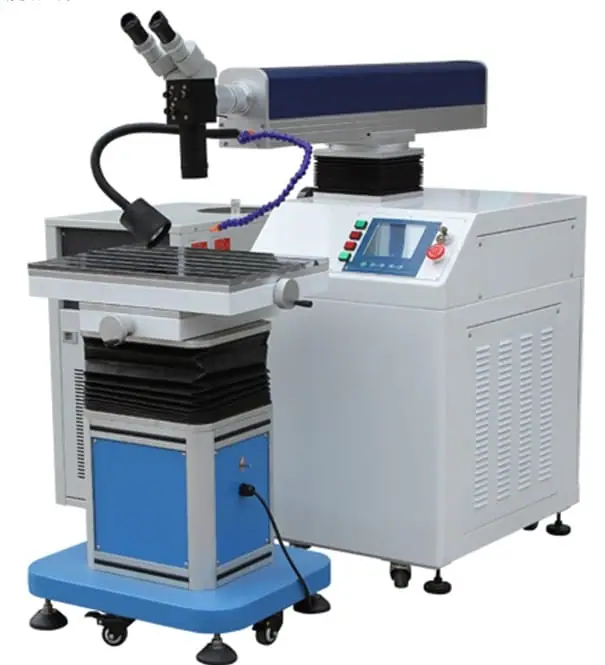

AMY-M Mold die tooling laser welding repaire machine
The Mold die tooling laser welding repaire machine can effectively handle welding and repairing of all minor parts with the fusion technology of laser high…
- Total weight300kg
- Table three-axis dimensions450mm*350mm
- Laser power200W
- Table triaxial stroke130mm*95mm*150mm
- Machine power supply380V/±10%/50hz/60A
- Laser typeNd：YAG pulse
- Spot adjustment range0.1-3.0mm
- Light spot size0.2-3.0mm
- Built by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, China
- More than twenty years experience in cold and hot forging and metal stamping equipment
- Rapid response technical team for operation guidance and production support
Features of AMY-M Mold die tooling laser welding repaire machine
The Mold die tooling laser welding repaire machine can effectively handle welding and repairing of all minor parts with the fusion technology of laser high thermal energy and centralized fixed point, which can make up the deficiency of the traditional argon arc welding technology in repairing the fine surface of welding, avoid the two thresholds of thermal strain and post-treatment, and greatly save the production cycle of the die. The main advantages of the mold industry tailor-made, using a unique mechanism design, suitable for a variety of large, medium and small mold repair.Used for the repair of precision molds, such as digital products, mobile phones, toys, household appliances, cars and other mold manufacturing and molding industries.
1. Adopt imported ceramic concentrated cavity, resistant to corrosion and high temperature, with cavity life of 8-10 years and xenon lamp life of more than 8 million times.
2. Adopt advanced automatic shading technology to eliminate eye irritation at work.
3. The laser head can rotate 360 degrees, and the whole part can rotate 360 degrees. It can move forward, backward, upward, and left and right.
4. The working table can be moved up and down by electric motor and move in three dimensions.
5. The photoelectric size can be adjusted electrically.
Specifications of AMY-M Mold die tooling laser welding repaire machine
| Laser power | 200W |
| Table triaxial stroke | 130mm*95mm*150mm |
| Table three-axis dimensions | 450mm*350mm |
| Total weight | 300kg |
| Machine power supply | 380V/±10%/50hz/60A |
| Laser type | Nd：YAG pulse |
| Spot adjustment range | 0.1-3.0mm |
| Light spot size | 0.2-3.0mm |
| Optical maser wavelength | 1064nm |
| Depth of weld | ≤2mm |
| Pulse width | 0.1-25ms |
| Pulse frequency | ≤50Hz |
| Laser output focal length | 80mm/100mm/120mm/200mm |
| Laser cooling | Water cooled |
| Observe the positioning | Microscope |
| Control system | PC or PLC |
| Shielding gas | 1 Roda |
| Equipment size | 1600mm*800mm*1500mm |

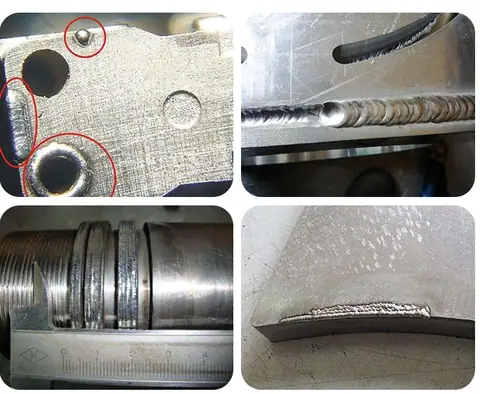

Welded Samples of AMY-M Mold die tooling laser welding repaire machine

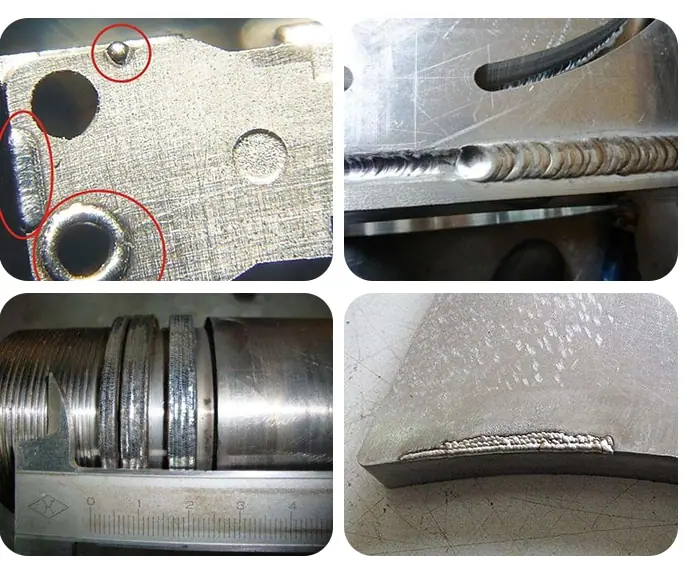

Tool repaired by AMY-M Mold die tooling laser welding repair machine
