Current Transformers
RLC Russian CT
RLC Russian CT is an AIRUIFA current transformer for panel builders and instrument OEMs that need a production CT they can label and wire into a meter or protection circuit.
Key Benefits
- OEM and ODM windings and housings for brand-labelled instruments
- Split-core and moulded families covering retrofit and new-build cabinets
- Each production CT can be checked on an OMICRON CT Analyzer with a test report
Problems It Solves
- Selecting a CT class that will not saturate under fault current
- Fitting a CT into a crowded MCCB or RMU compartment
- Adding metering on an existing feeder without a shutdown
Who It Is For
- Panel builders and switchgear OEMs that need a matching CT for a meter or protection relay
- Energy-meter and sub-metering brands sourcing OEM current transformers
- Maintenance teams retrofitting CTs onto live busbars or cables
Application Scenarios
- 1:Current measurement
- lighting
- air compressor
- heating and ventilation system
Technical Features
- Primary current: from 5A to 5000A
- Accuracy: (up to Class 0
- Class: 0.2S

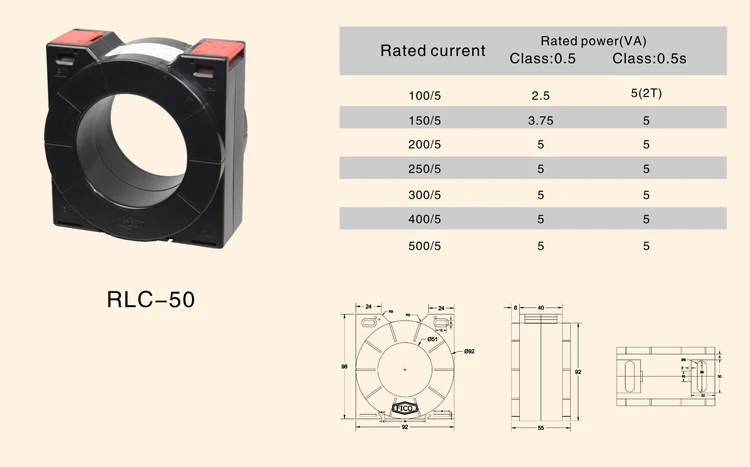

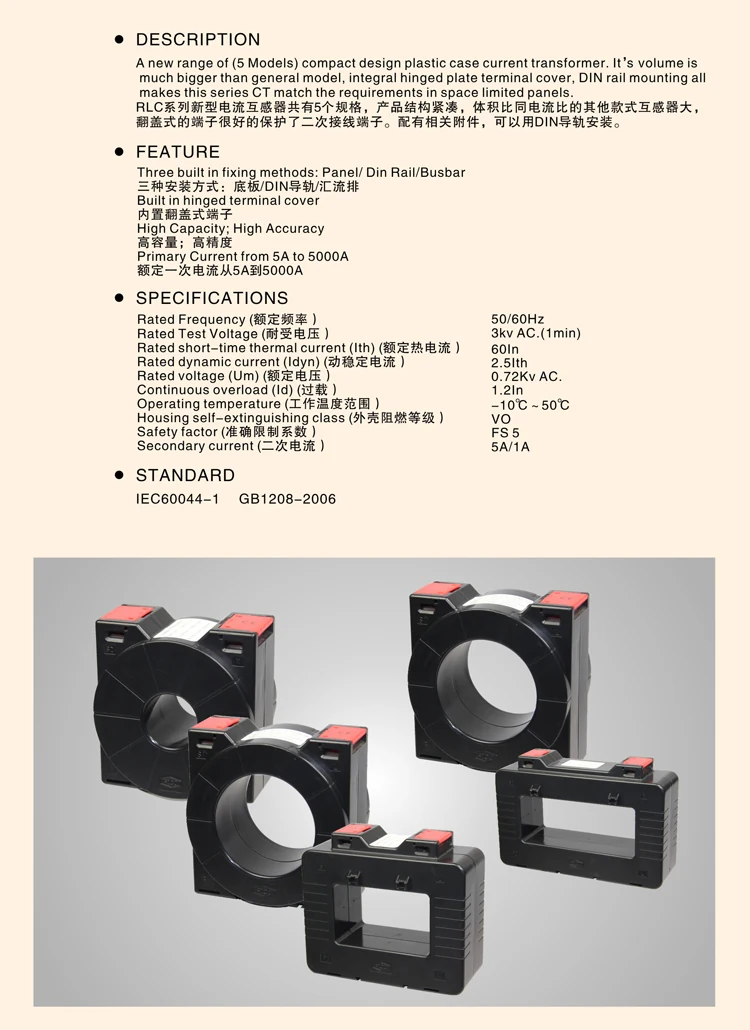

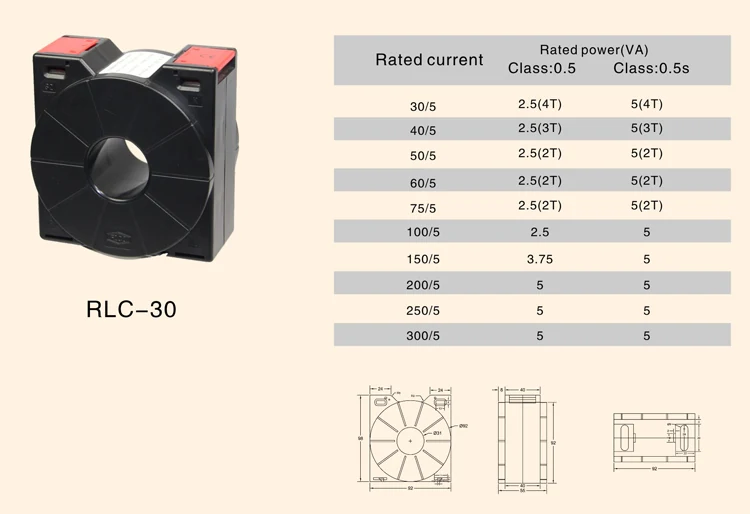

Specifications
| Primary current | from 5A to 5000A |
|---|---|
| Accuracy | (up to Class 0 |
| Class | 0.2S |
Materials
Manufacturing Process
Quality Control
- Current transformers are stated to be checked on an OMICRON CT Analyzer with a test report.
- Ask the desk to mark the rating plate and packing list against your purchase order.
Customization
- Private-label nameplate and carton mark
- Secondary output, class or burden against a customer datasheet
- Window, busbar or case changes when a drawing is supplied
Use Guide
- Send the primary rating, window size and secondary output with the enquiry.
- Do not leave a current-transformer secondary open while the primary is energised.
Related Products
SDH Series CT
SDH Series CT is an AIRUIFA current transformer for panel builders and instrument OEMs that need a production CT they can label and wire int
LSY 3Phase Resin Current Transformer
LSY 3Phase Resin Current Transformer is an AIRUIFA current transformer for panel builders and instrument OEMs that need a production CT they
AMC seires CT
AMC seires CT is an AIRUIFA current transformer for panel builders and instrument OEMs that need a production CT they can label and wire int
SLC Spain CT
SLC Spain CT is an AIRUIFA current transformer for panel builders and instrument OEMs that need a production CT they can label and wire into
Questions Buyers Ask
Can AIRUIFA supply RLC Russian CT as an OEM or private-label part?
Yes. AIRUIFA is set up as an OEM/ODM desk for current transformers, panel meters, shunts and related instruments. Send the drawing or target brand specification over WhatsApp or email.
What information do you need for a quotation?
Primary rating, secondary output or class, burden, window or busbar size, case style, quantity and destination port. A photo of the part you are replacing is enough to start.
Do you issue a test report with current transformers?
AIRUIFA states that current transformers are checked on an OMICRON CT Analyzer and shipped with a test report. Ask the sales desk to include the report on the packing list.
What is a typical rush lead time?
The factory lists rush delivery in 7–10 days for larger quantities. Confirm the date on the quotation for the rating you need.
Can you match an existing European or Asian CT housing?
Several AIRUIFA moulded ranges are positioned as drop-in equivalents for common European and Asian housings. Send the competitor part number and a dimension sketch.
Send The Rating And The Window
WhatsApp or email the primary, class, cut-out and quantity. No web form.
