Model UF4040

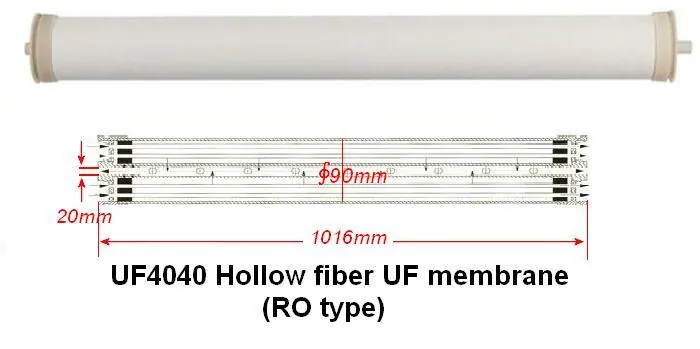

UF4040 hollow fiber ultrafiltration module in RO vessel format, 3.5 to 8.6 square metre effective membrane area.

Shanghai China · Tel +86-21-68315320 · [email protected]

Model No.	UF4040
Hollow fiber material	PAN	PP	PS/PES	PVDF
Dimensions	Φ90X1016mm or as clients’ requirement
Hollow fiber ID/OD(mm)	1.0/ 1.6	0.4 / 0.5	0.8/1.2 or 1.0 / 1.6	0.7mm / 1.3mm
Filtration type	RO type
Effective membrane area	3.5m 2	8.6m 2	4.6m 2	7.2m 2
Intercept molecular Weight (Daltons)	50000 ～ 100000	100000	10000 ～ 100000	100000
Initial flux T/H	>0.8	>1.0	>0.8	>1.0
Designed flux T/H	0.3-0.5	0.5- 0.7	0.3- 0.5	0.5-0.7
End seal material	Epoxy resins
Outer shell material	UPVC
Max. Feed pressure	0.3mpa
Recommendatory feed pressure	0.06-0.15mpa
Trans Memb Pressure	0.04-0.08 mpa	0.04-0.15mpa	0.04-0.15mpa	0.04-0.15mpa
Working temperature	5-45 ℃
Feed water turbidity	<50NTU	<70 NTU	<50 NTU	<70 NTU
PH range	3-10	2-13	2-13	2-13
Filtrate SDI	<1	<2	<1	<2
Filtrate Turbidity	<0.1 NTU	<0.2 NTU	<0.1 NTU	<0.2 NTU
Coliform & Bacteria removal	99.9%
Life Span	One year, operated strictly under the above technical data
Remark: Initial output flow rate test under purified water at 25 ℃ and 0.1 Mpa conditions
