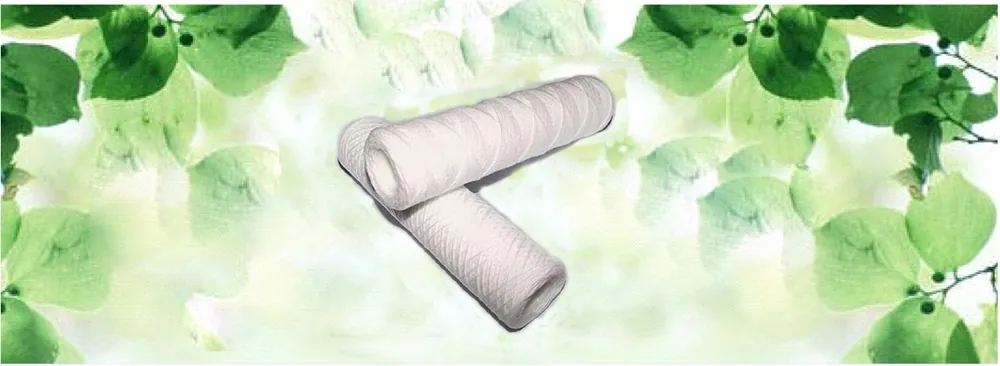

String Wound Filter Cartridge

String wound filter cartridge in polypropylene, bleached cotton or glass fiber, 1 to 100 micron, 5 to 40 inch.

Shanghai China · Tel +86-21-68315320 · [email protected]

String wound filter cartridge The cartridges are structured loose outer layers and tight inner layers which can offer true depth filtration for high dirt holding capacity and extremely low media migration to ensure temperature and chemical compatibility. It widely be used and applied for water treatment industry on food,pharmacy,electronic,chemical etc.

PP SW filter cartridge

String Materials	Polypropylene
Lengths & Diameter	5--40inch; OD. Φ 62--115mm, ID. Φ 28mm, 30mm
Removal Ratings	1/5/ 10 / 20 / 30 / 50 / 75 / 100micron
Core Material	Polypropylene
Operations Temperature	≤ 60 oC

Bleached cotton SW filter cartridge

String Materials	Bleached cotton
Lengths & Diameter	5--40inch; OD. Φ 62--115mm, ID. Φ 28mm, 30mm
Removal Ratings	1/5/ 10 / 20 / 30 / 50 / 75 / 100micron
Core Material	Stainless Steel
Operations Temperature	≤160 oC

Glass fiber SW filter cartridge

String Materials	Glass fiber
Lengths & Diameter	5--40inch; OD. Φ 62--115mm, ID. Φ 28mm, 30mm
Removal Ratings	1/5/ 10 / 20 / 30 / 50 / 75 / 100micron
Core Material	Stainless Steel
Operations Temperature	≤200 oC

Maximum pressure resistance: 0.5 Mpa Maximum operating pressure drop: 0.2Mpa
