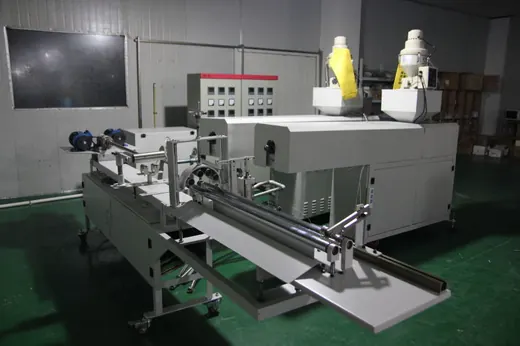

PP melt blown filter cartridge production line with automatic and frequency conversion control, 4200 to 4500 pieces per day.
Shanghai China · Tel +86-21-68315320 · [email protected]
PP melt blown filter cartridge production line with automatic and frequency conversion control, 4200 to 4500 pieces per day.
Shanghai China · Tel +86-21-68315320 · [email protected]
It’s the use of automatic control system, continuous production of various specifications of filter, the operation is simple and convenient, production high efficiency, large, long life of the machine;At the same time, the device adopts frequency conversion control system, low power consumption, high outputs.Product crystal good, stable performance, high filtering precision.Realization of filter radial multilayer structure, to achieve the filtering effect filter layer.
| Main parts list | ||
| 1 | Air blower | 1set |
| 2 | Extruder | 2sets |
| 3 | Frequency converter(2.2KW two sets, 18kw one set) | 3sets |
| 4 | Motor(2.2KW) | 2sets |
| 5 | Feed hopper | 2sets |
| 6 | Charging platform | 2sets |
| 7 | Operating floor (SUS material) | 1set |
| 8 | Receive axis ( φ 28/ φ 30) | 1Piece |
| 9 | Electronic blower | 3sets |
| 10 | Heat Treatment PTFE sprayer | 2pcs |
| 11 | Electronic scale | 1set |
| 12 | Frequency converter for receive car (0.75KW) | 2sets |
| 13 | Converter Motor for receive car (0.55KW) | 2sets |
| 14 | Slide rail | 1set |
| 15 | Cutting device | 1set |
| 16 | Compression roller | 1set |
| 17 | cutting tug | 1set |
| 18 | cartridge tug | 1set |
| 19 | Groves knife | 1piece |
| 20 | Control cabinet | 2pcs |
| 21 | Manual cutting machine | 1set |
| 22 | Air oven (use for cleaner sprayer plate) | 1set |
| 23 | Heating furnace (27KW) | 1set |
| 24 | Wrench (for spray mould) | 1set |
| 25 | inner hexagon spanner | 1set |
| 26 | Socket spanner | 1set |
| 27 | Sprayer needle | 2boxes |
| 28 | Utility knife | 2boxes |
| 29 | Sprayer Plate(500holes,500holes) | 2pcs |
| ACCESSORIES | ||
| 1 | (2.2KW)Motor | 1pcs |
| 2 | (0.55KW) variable frequency motor | 1pcs |
| 3 | (2.2KW)Frequency Converter | 1pcs |
| 4 | (0.75KW)Frequency Converter | 1pcs |
| 5 | heating rod of 500 type | 2pcs |
| 6 | heating rod of 500 type | 2pcs |
| 7 | The belt of air blown machine | 3pcs |
| 8 | The belt of extruder | 2pcs |
| 9 | synchronous belt | 2pcs |
| 10 | Cocontactor | 1pcs |
| 11 | SS Flexible Hose | 2pcs |

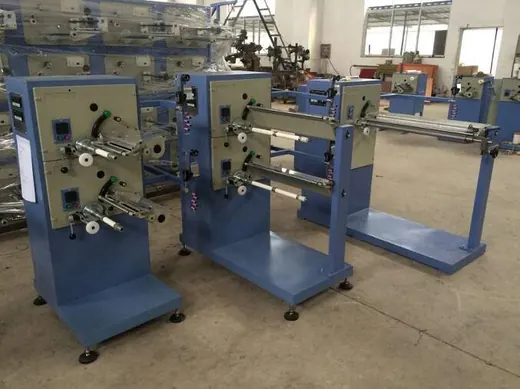

PP string wound filter cartridge making machine for polypropylene, cotton and glass fiber wound cartridges.…
View details →

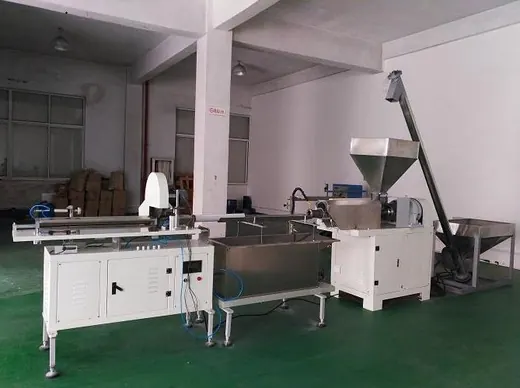

CTO carbon filter cartridge making machine for extruded activated carbon block cartridges.…
